Parking Brake Lever: Components: Illustration

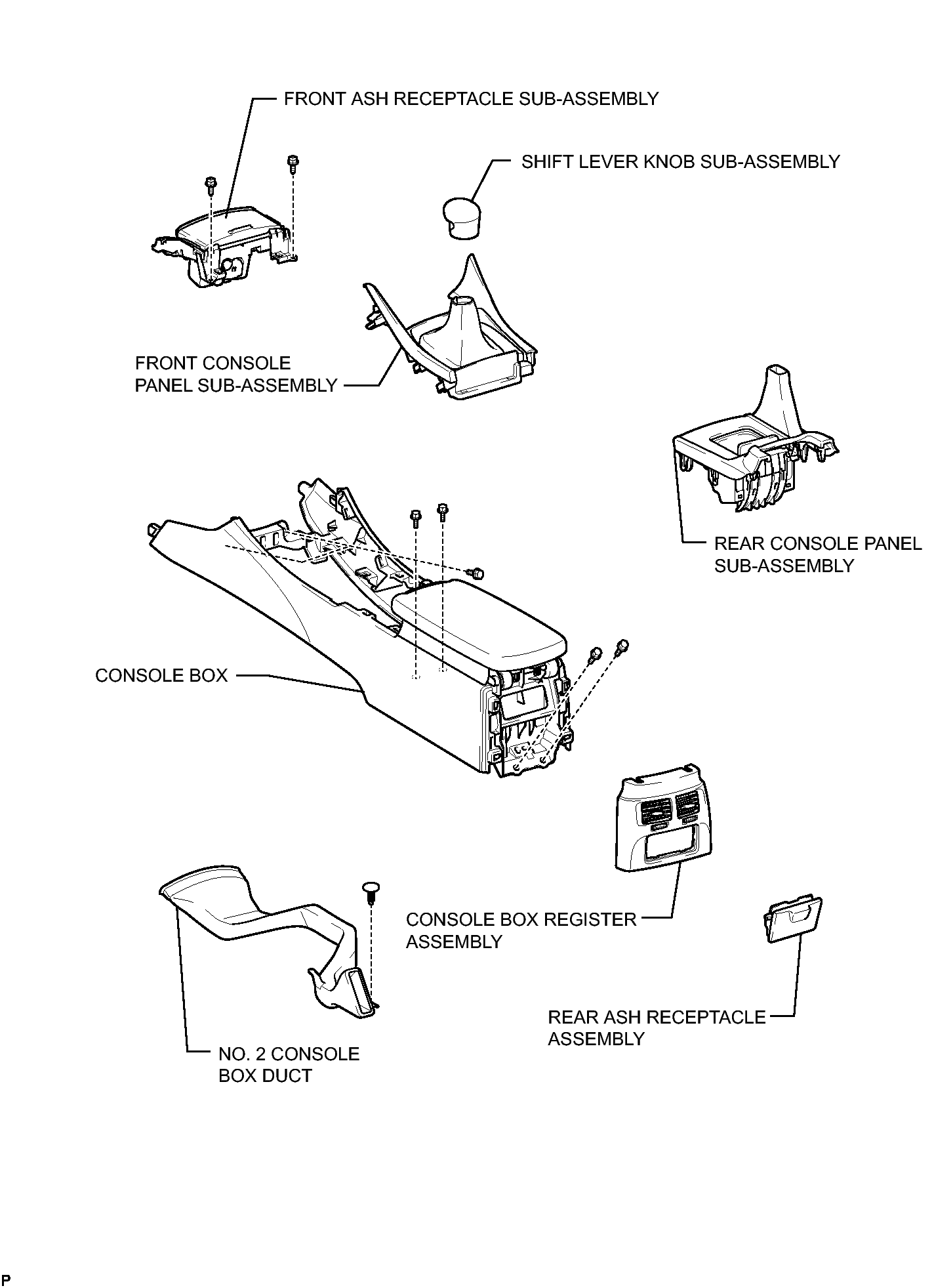

Fig 1: Identifying Parking Brake Lever Replacement Components (1 Of 3)
GTY137073Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Fig 1: Parking Brake Lever Replacement Components (2 Of 3) With Torque Specifications
GTY112533Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

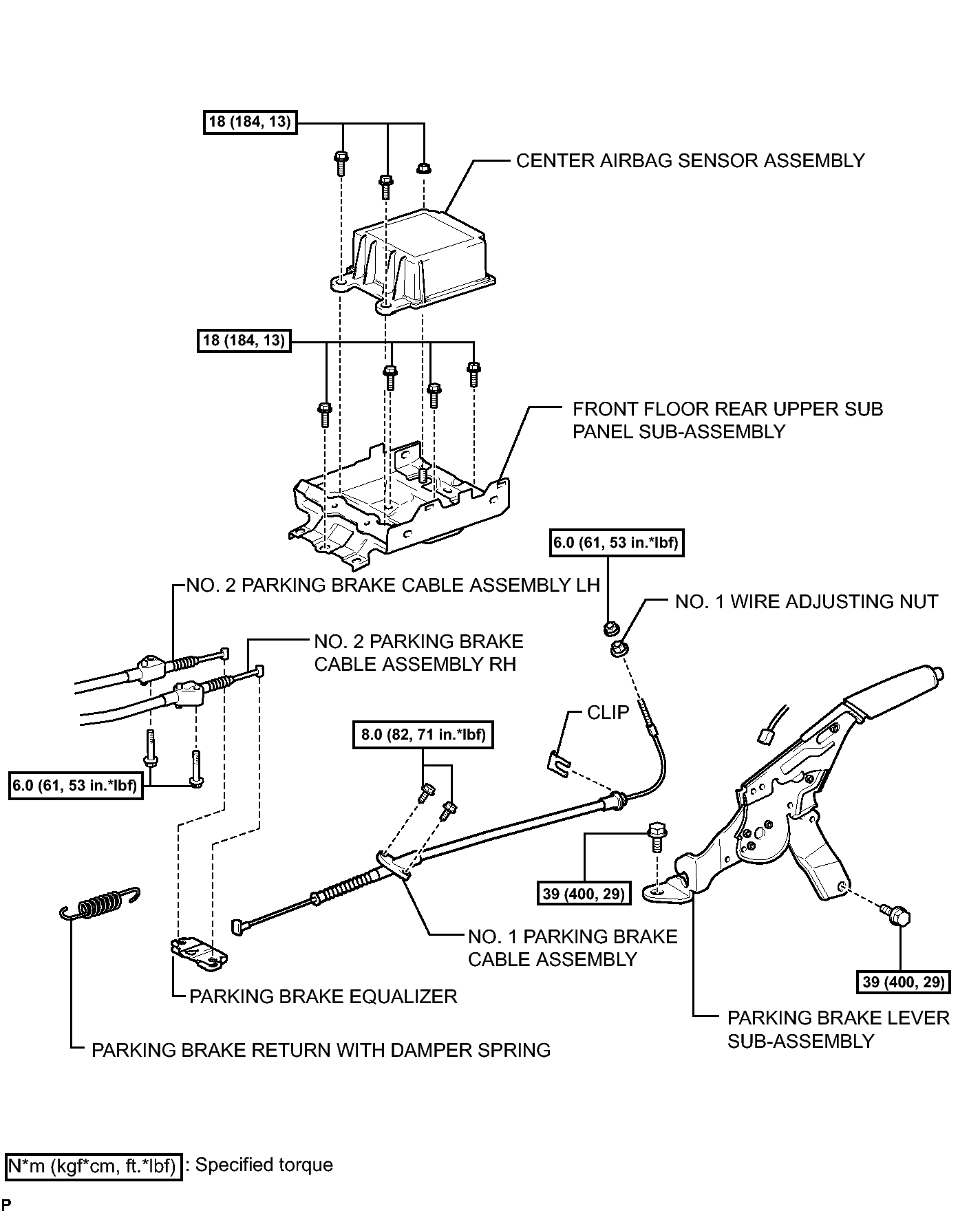

Fig 1: Parking Brake Lever Replacement Components (3 Of 3) With Torque Specifications
GTY113135Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
