Parking Brake Cable: Components: Illustration

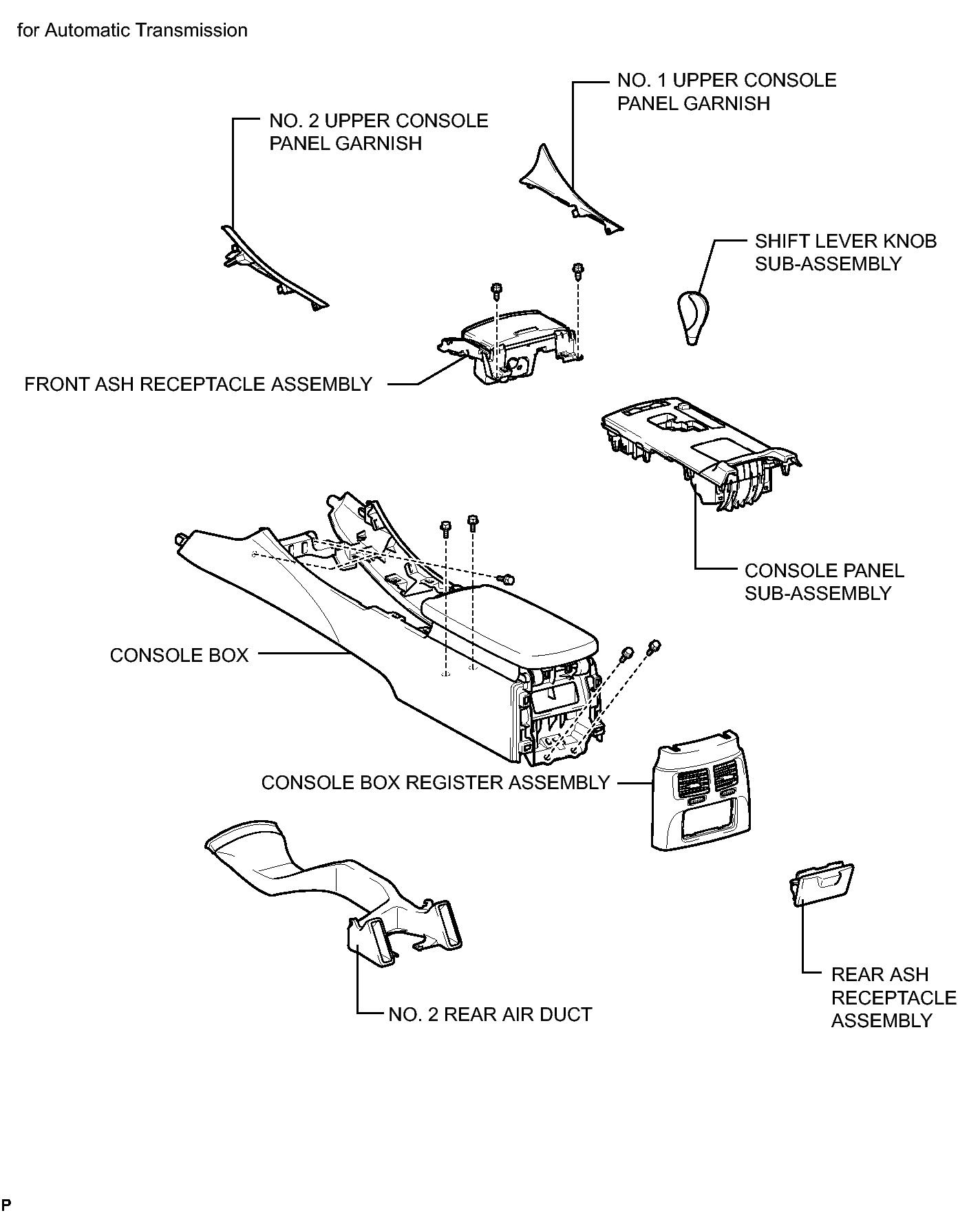

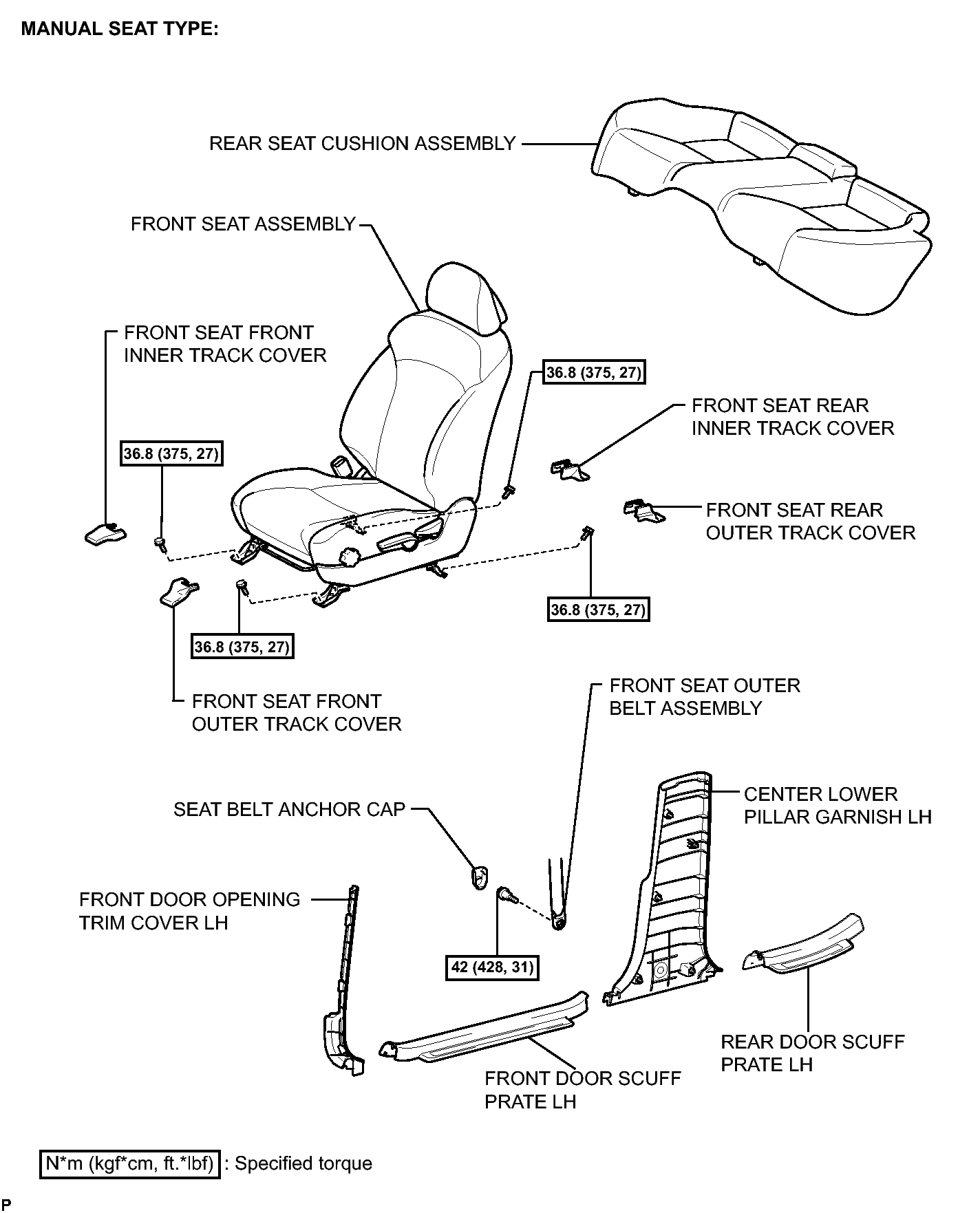

Fig 1: Parking Brake Cable Replacement Components (1 Of 13) With Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

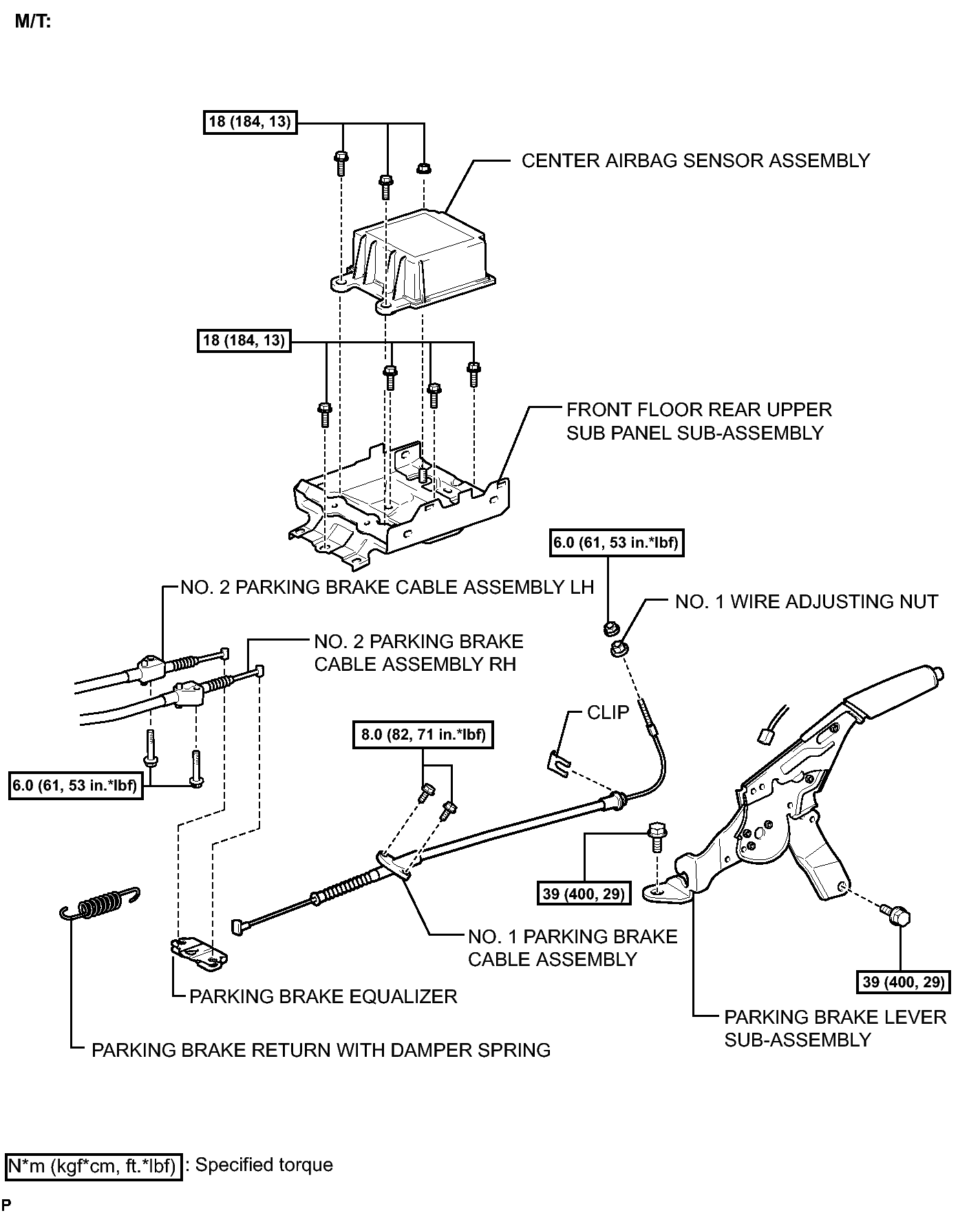

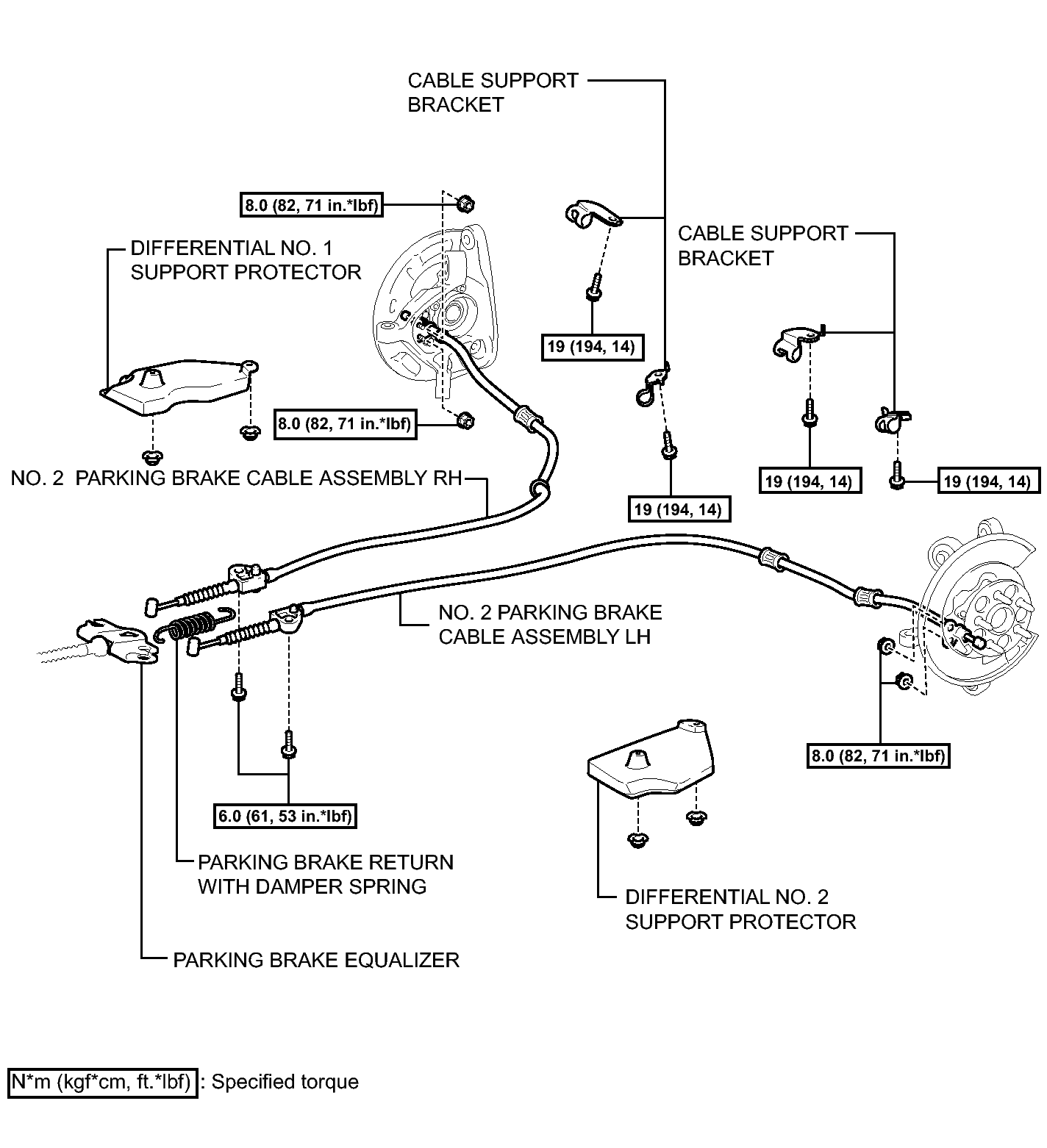

Fig 1: Parking Brake Cable Replacement Components (2 Of 13) With Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

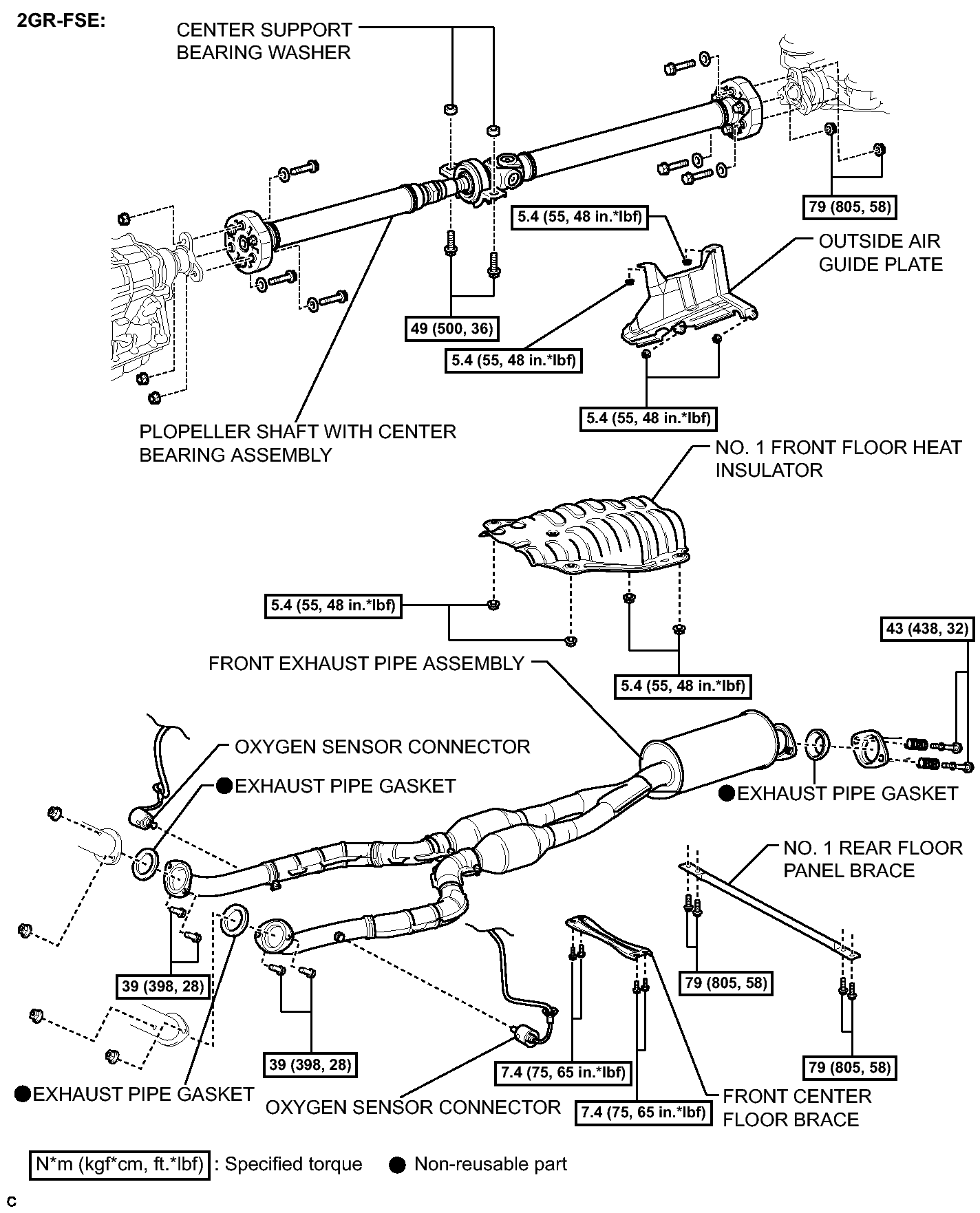

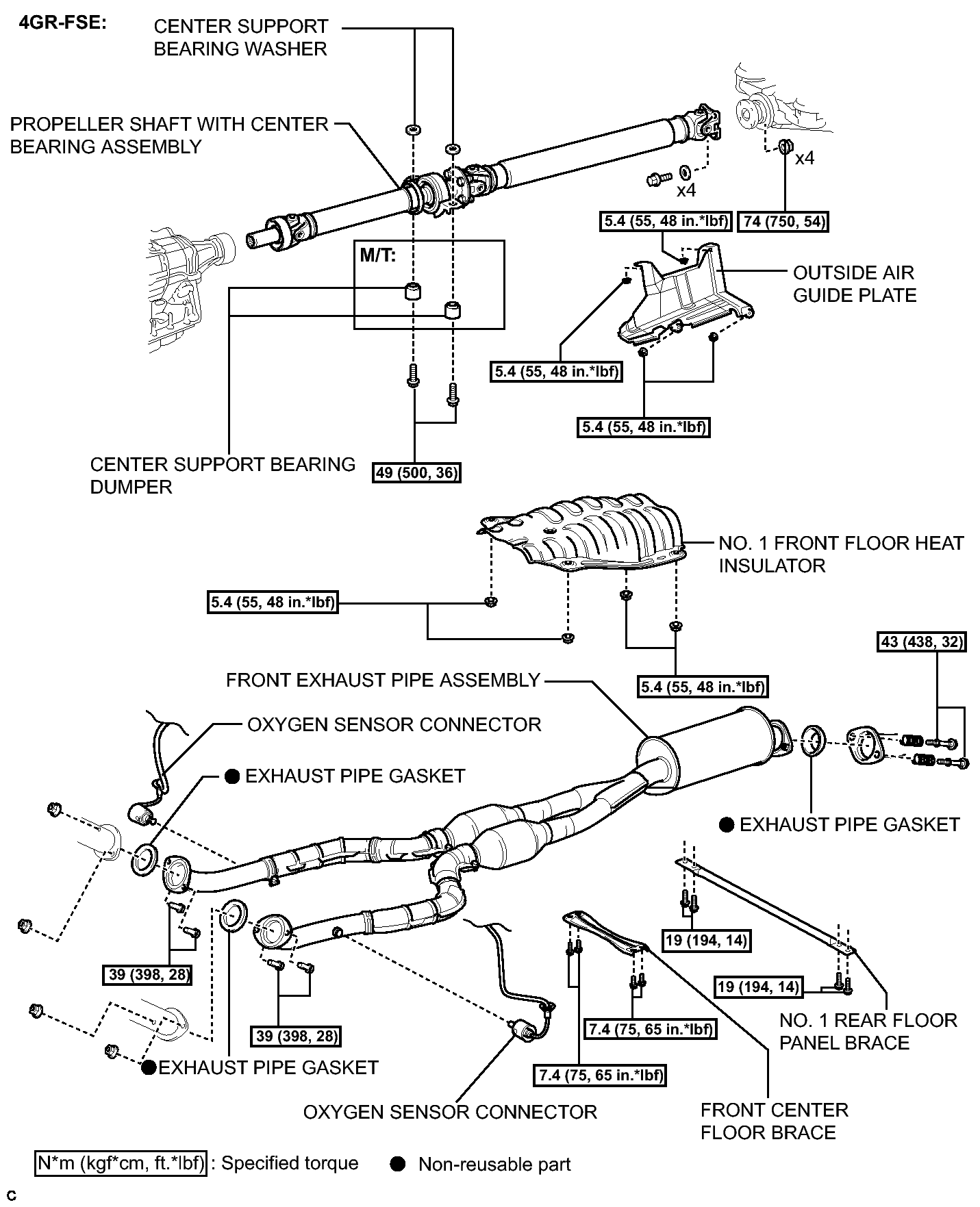

Fig 1: Parking Brake Cable Replacement Components (3 Of 13) With Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

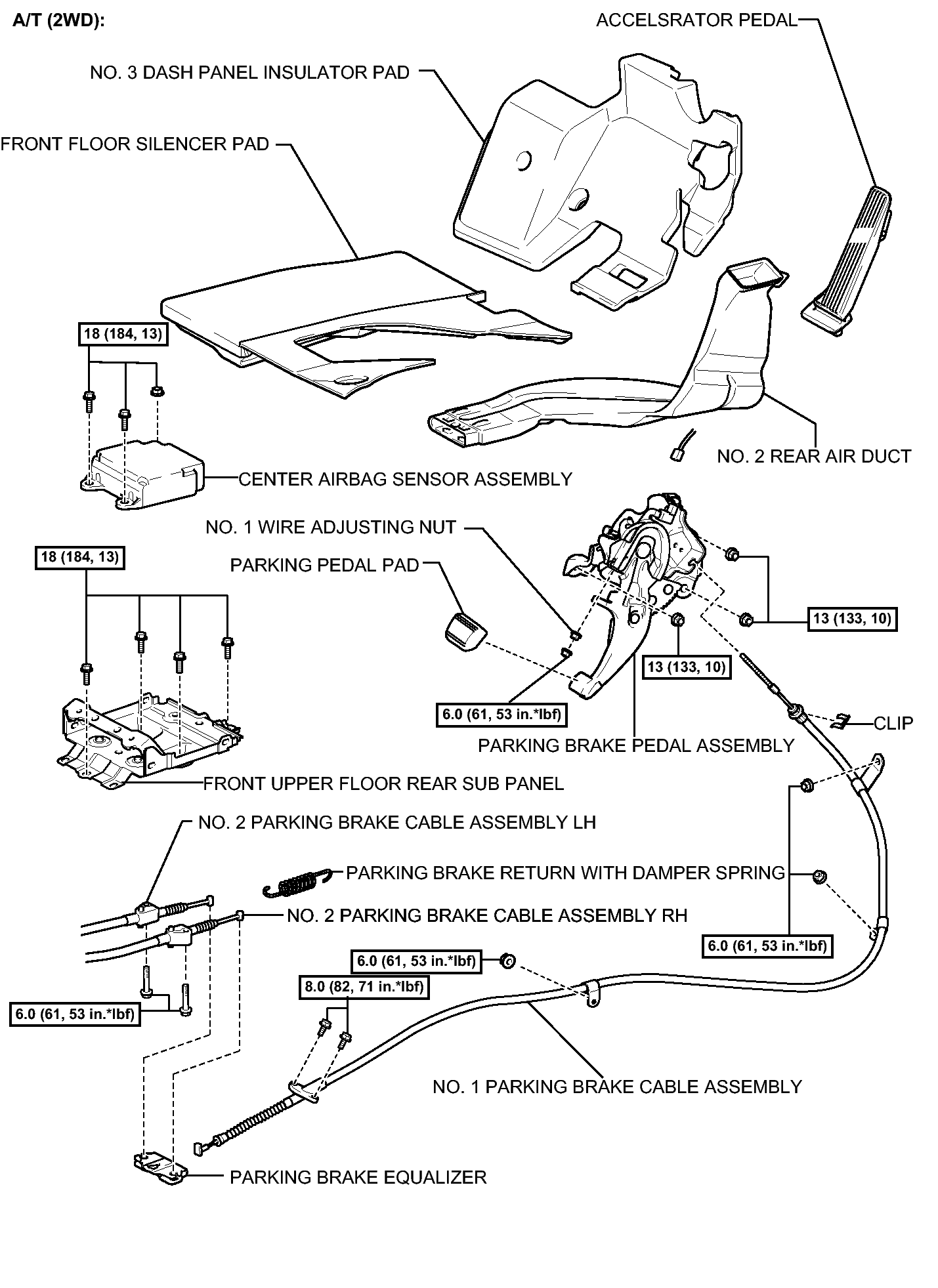

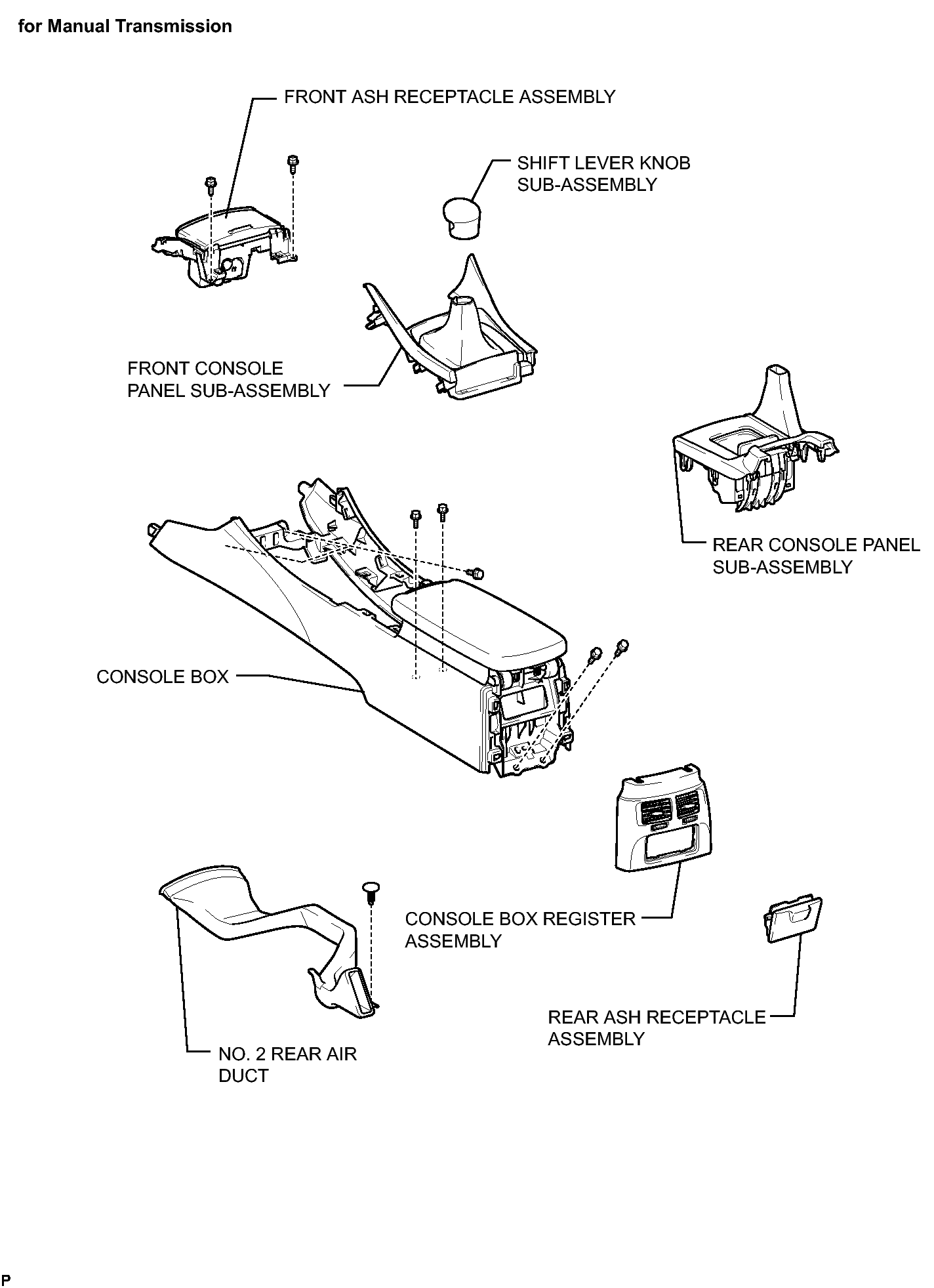

Fig 1: Identifying Parking Brake Cable Replacement Components (4 Of 13)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

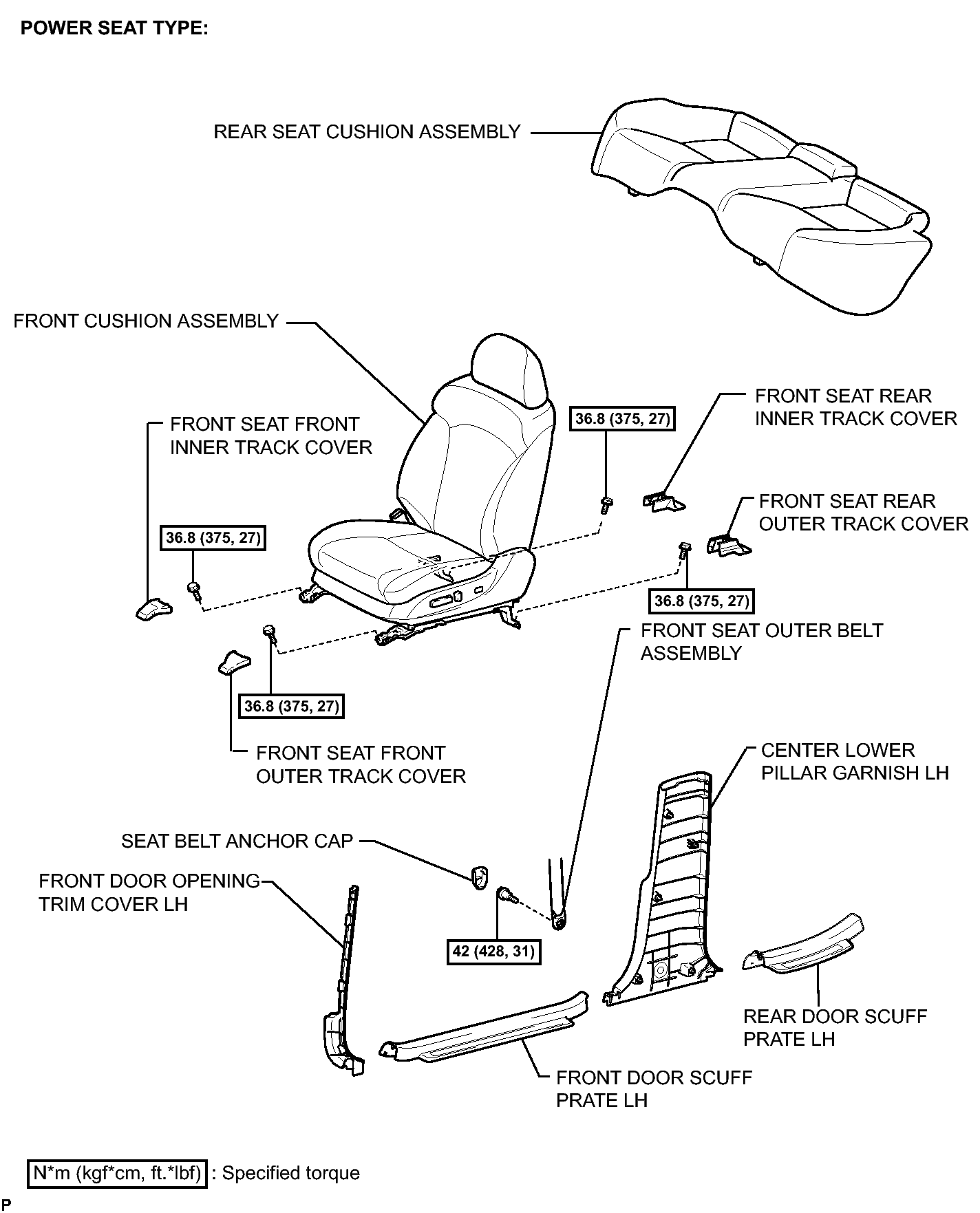

Fig 1: Identifying Parking Brake Cable Replacement Components (5 Of 13)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

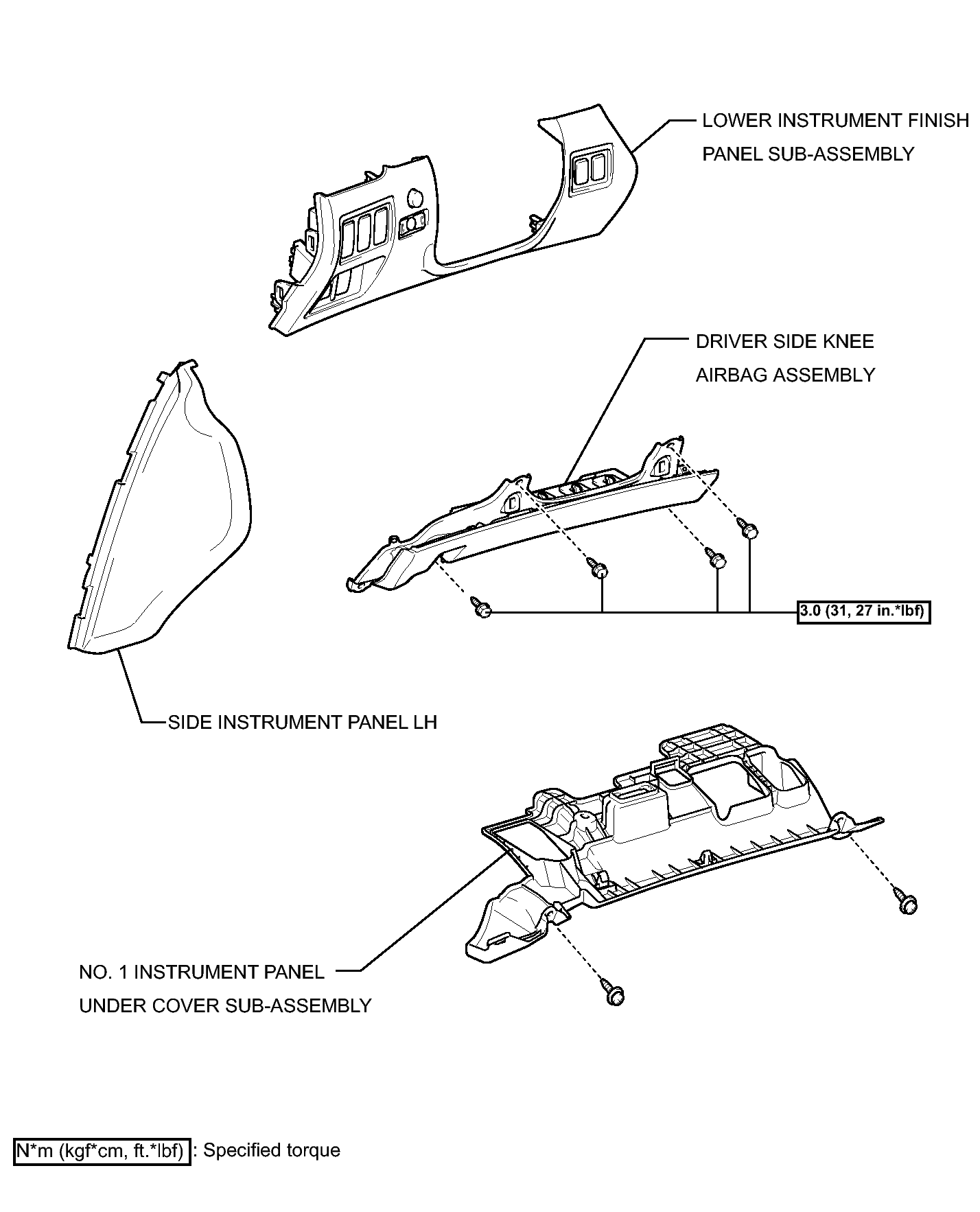

Fig 1: Identifying Parking Brake Cable Replacement Components (6 Of 13) (With Torque Specification)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

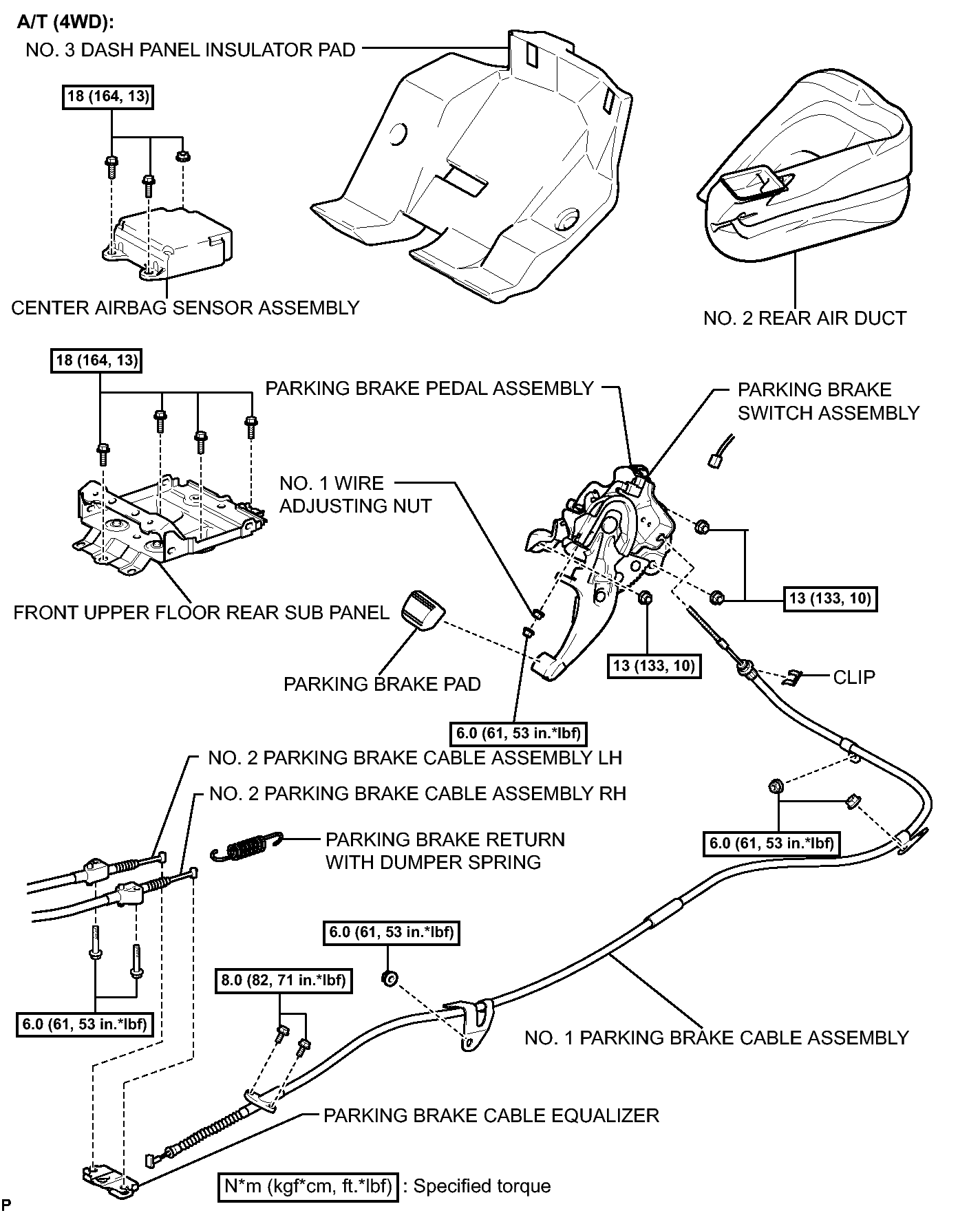

Fig 1: Identifying Parking Brake Cable Replacement Components (7 Of 13) (With Torque Specification)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

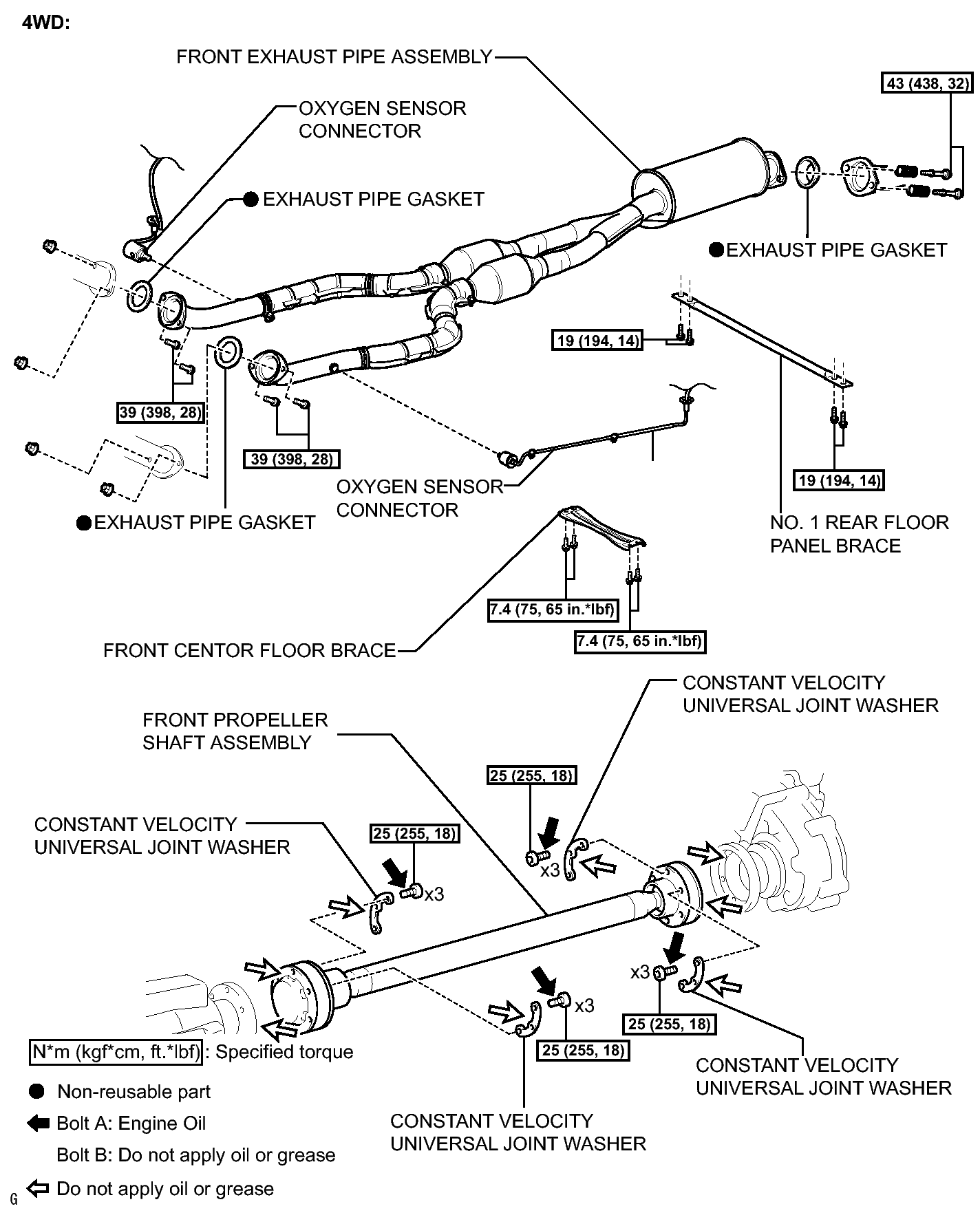

Fig 1: Identifying Parking Brake Cable Replacement Components (8 Of 13) (With Torque Specification)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

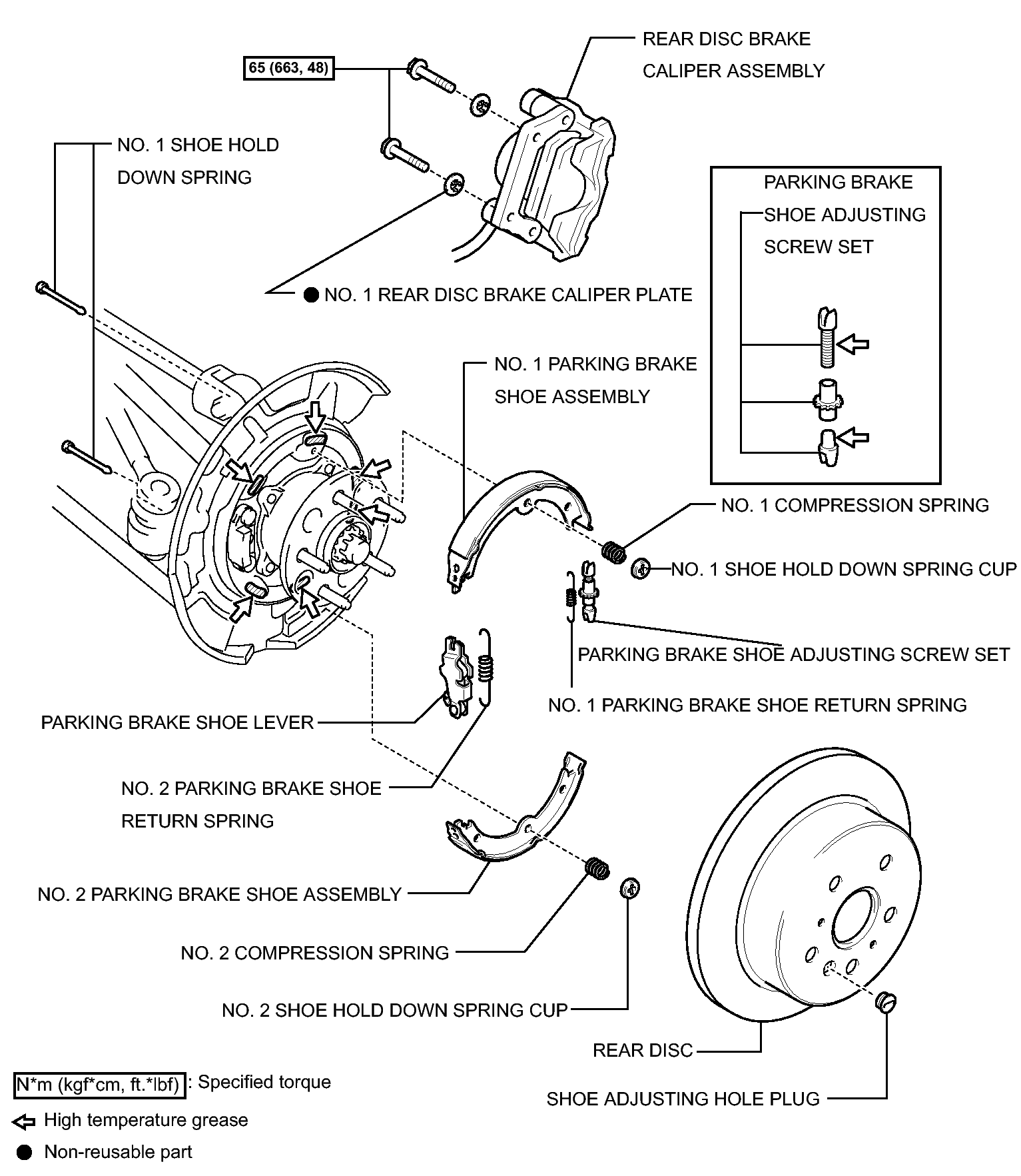

Fig 1: Parking Brake Cable Replacement Components (9 Of 13) With Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 1: Parking Brake Cable Replacement Components (10 Of 13) With Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 1: Parking Brake Cable Replacement Components (11 Of 13) With Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 1: Parking Brake Cable Replacement Components With Torque Specifications (12 Of 13)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 1: Identifying Parking Brake Cable Replacement Components (13 Of 13) (With Torque Specification)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
