FRONT BRAKE PAD, BRAKE CALIPER & BRAKE ROTOR (for 4GR-FSE): Components: Illustration

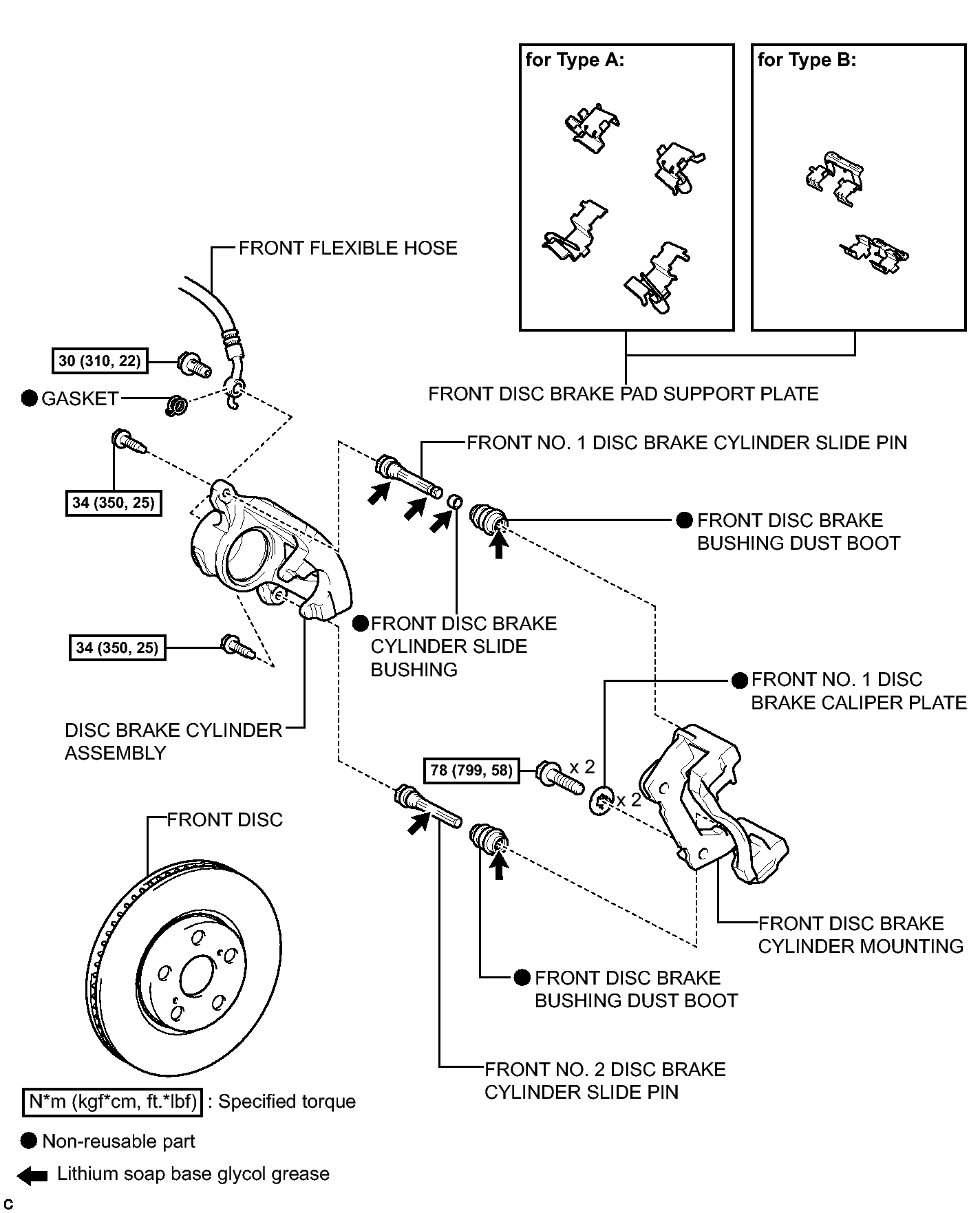

Fig 1: Identifying Front Brake Replacement Components With Torque Specifications (For 4GR-FSE) (1 Of 2)
GTY274390Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

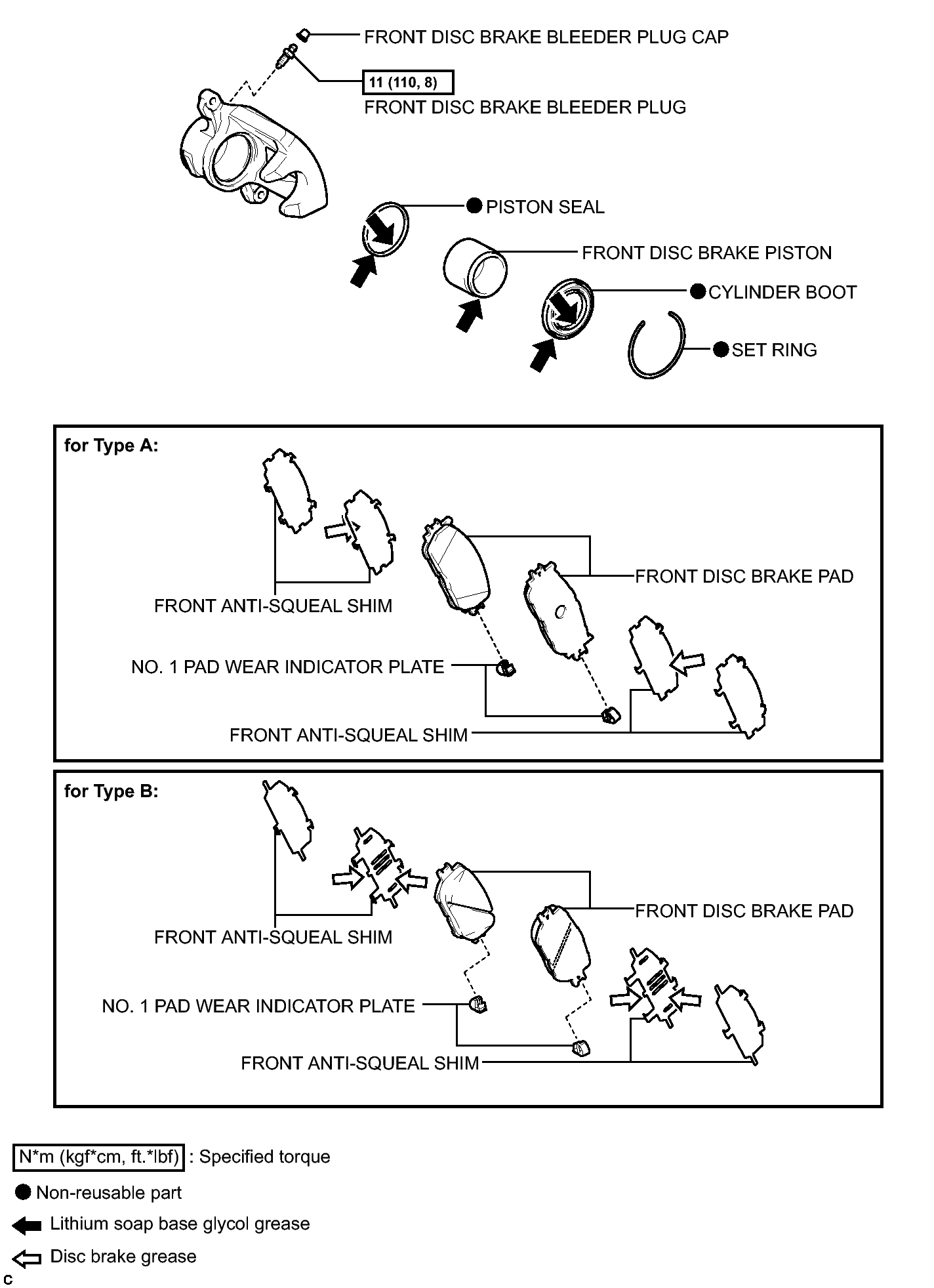

Fig 1: Identifying Front Brake Replacement Components With Torqe Specifications (For 4GR-FSE) (2 Of 2)
GTY254572Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
