Brake Master Cylinder: Components: Illustration

Fig 1: Identifying Brake Master Cylinder Replacement Components (1 Of 2)
GTY128751Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

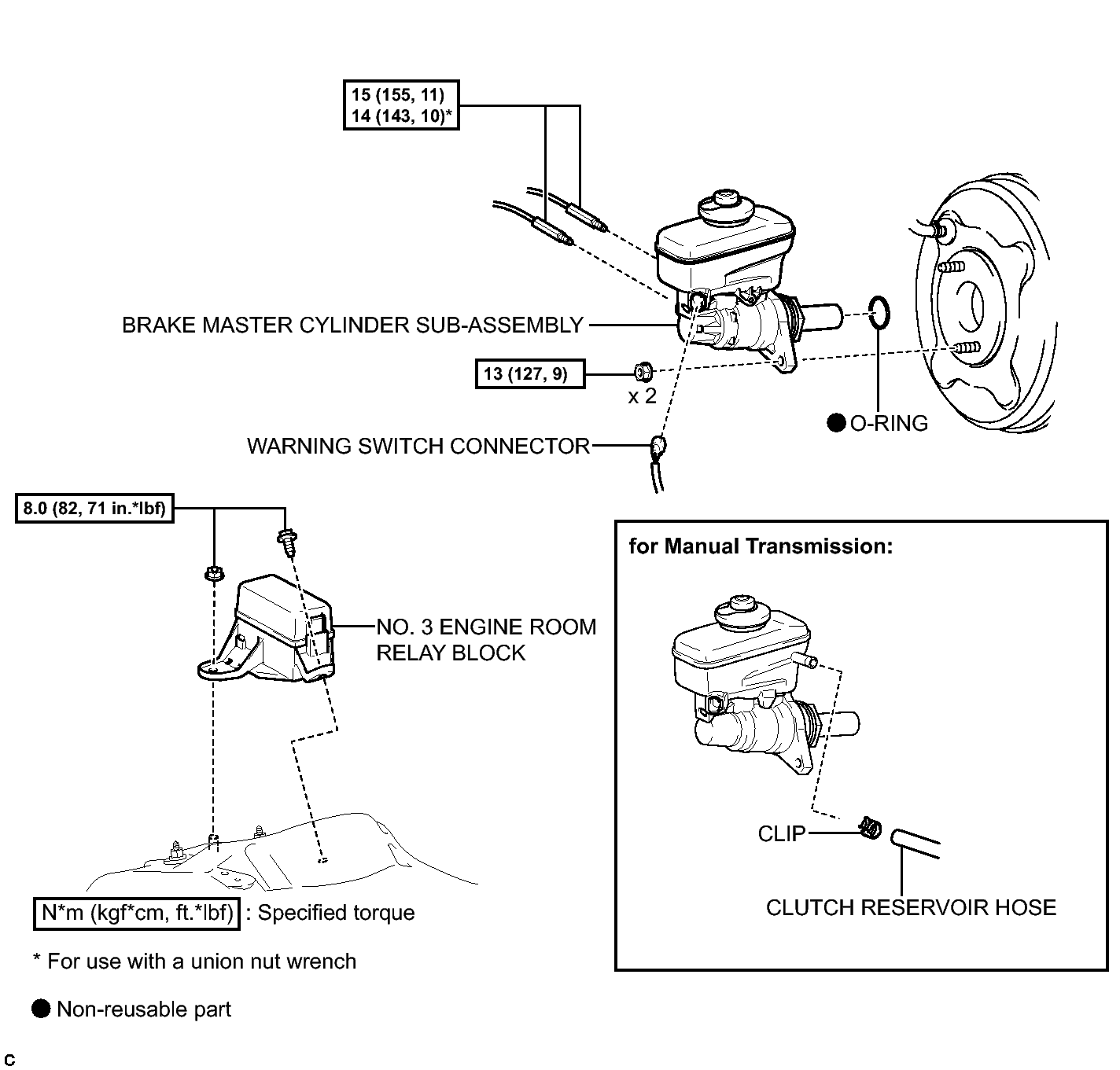

Fig 1: Identifying Brake Master Cylinder Replacement Components With Torque Specifications (2 Of 2)
GTY134448Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
