FRONT SEATBACK HEATER (for Manual Seat): Components: Illustration

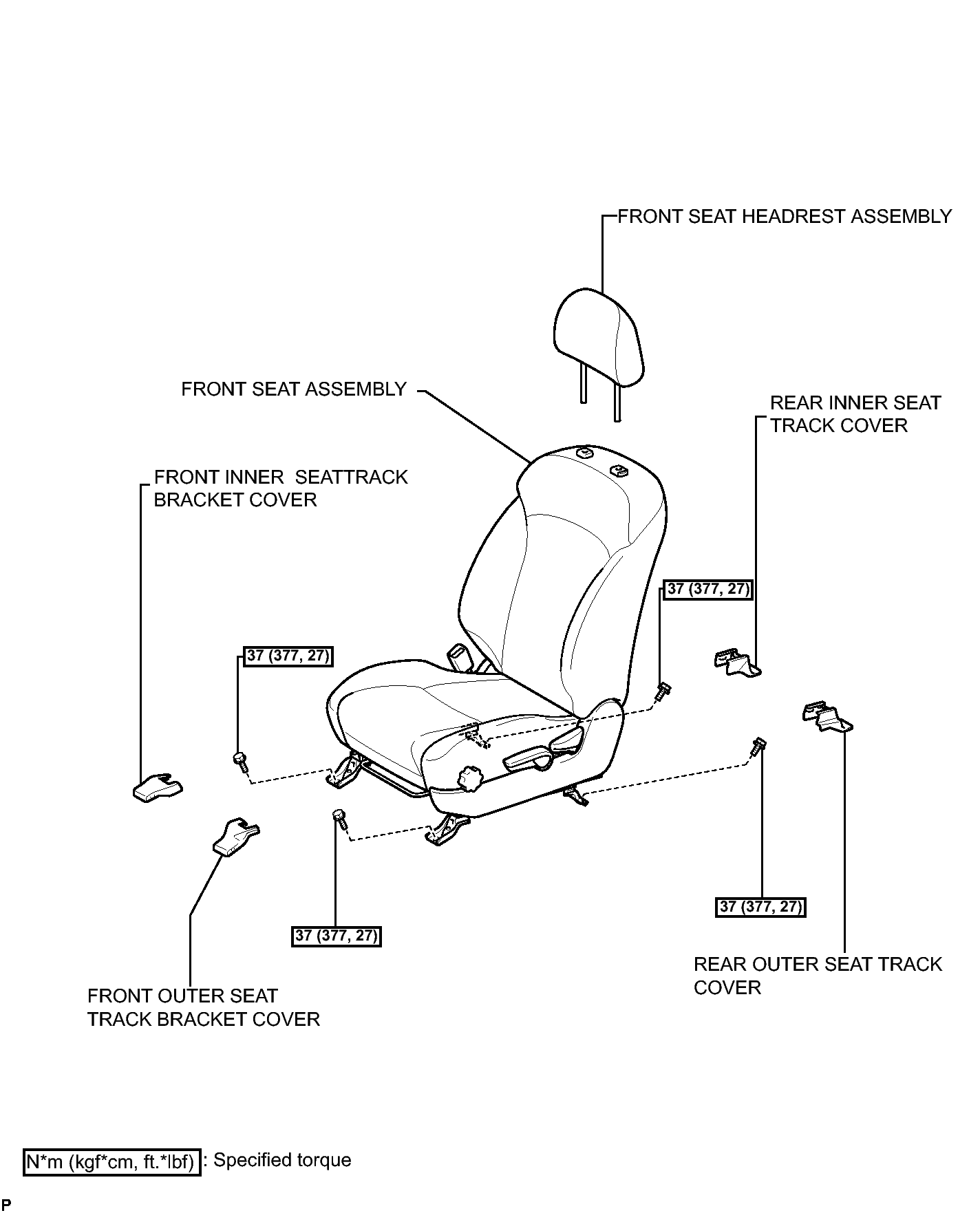

Fig 1: Identifying Front Seatback Heater (For Manual Seat) Replacement Components With Torque Specifications (1 Of 2)
GTY264419Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

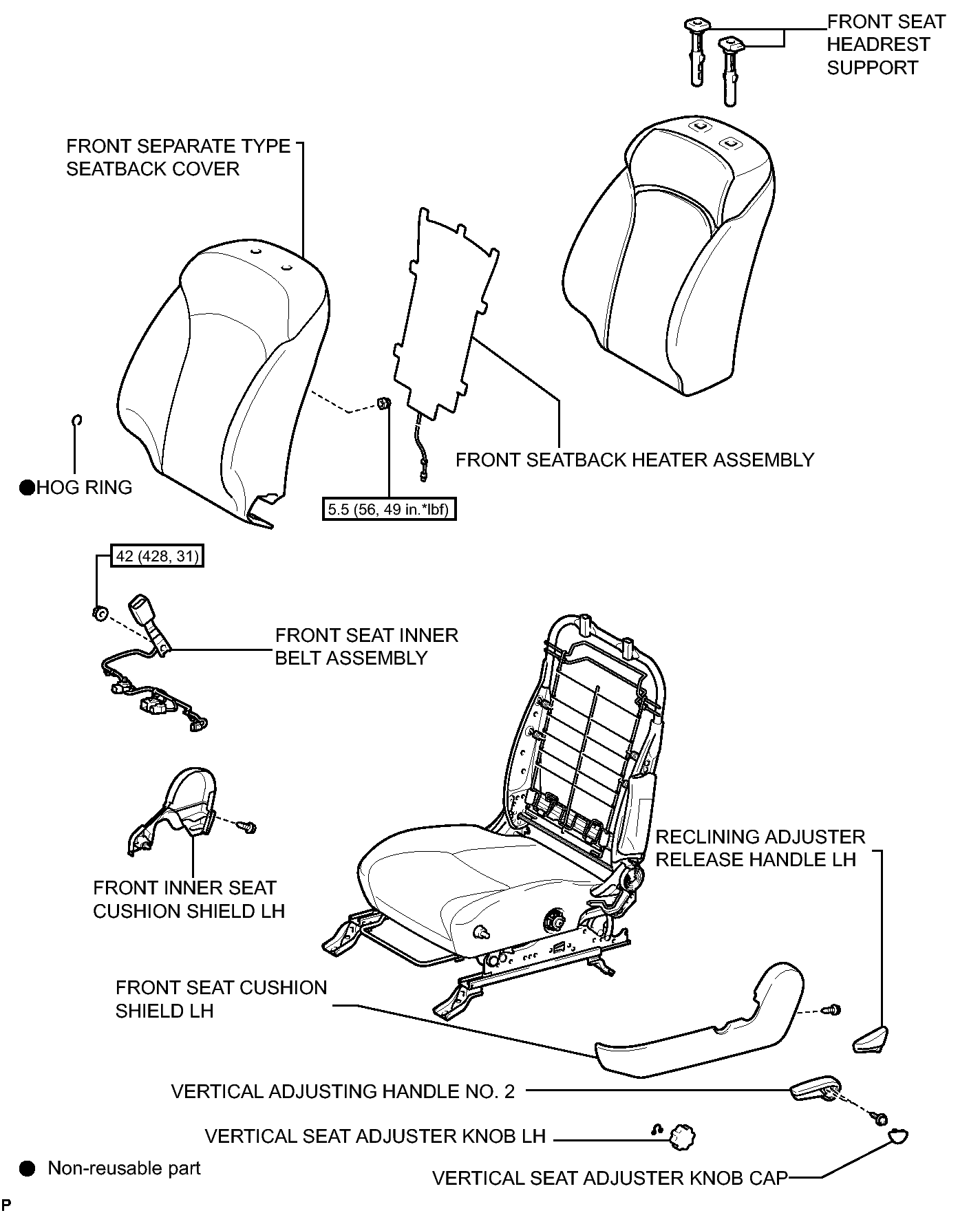

Fig 1: Identifying Front Seatback Heater (For Manual Seat) Replacement Components With Torque Specifications (2 Of 2)
GTY263852Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
