FRONT SEAT ASSEMBLY (for Manual Seat): Components: Illustration

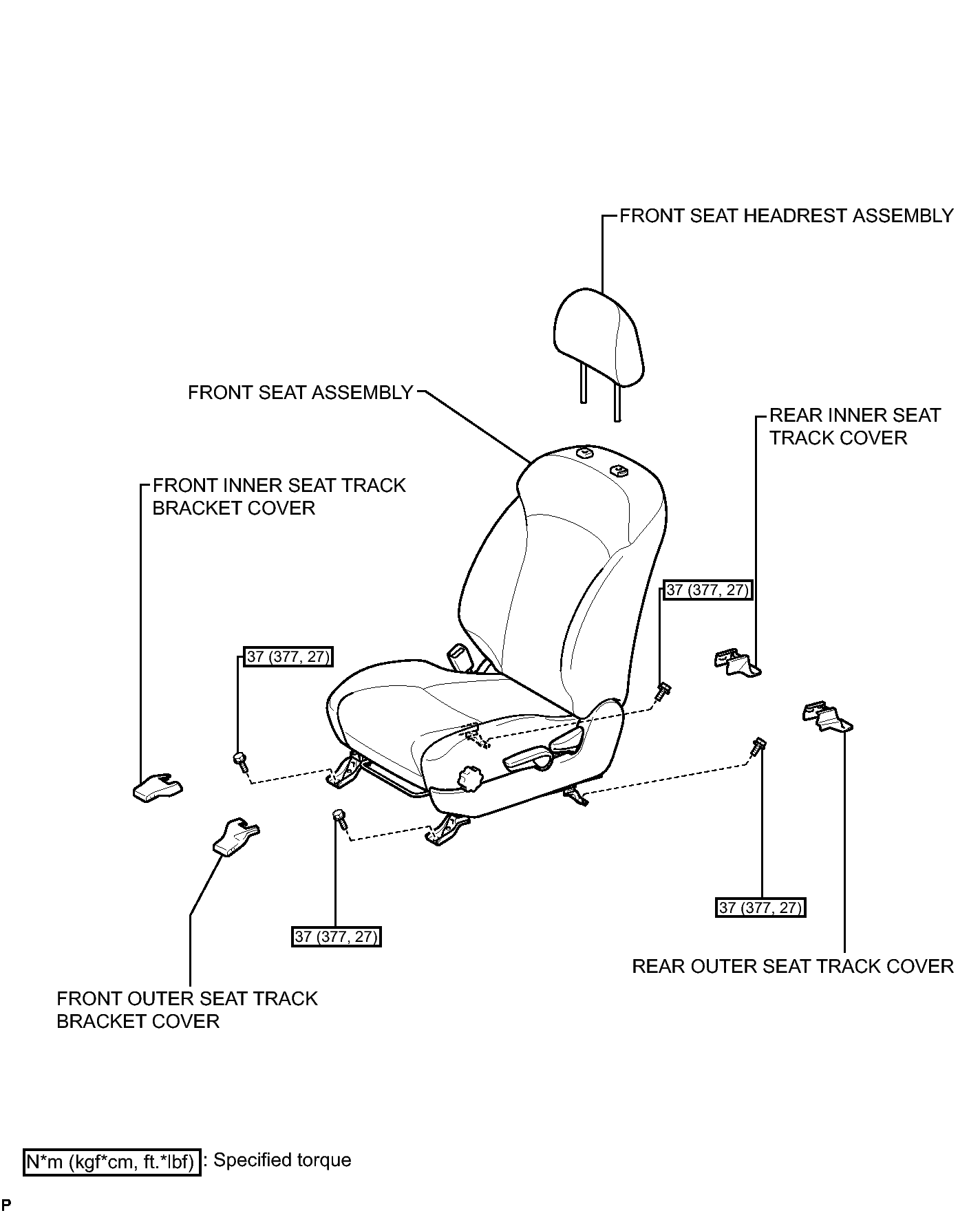

Fig 1: Identifying Front Seat Assembly (For Manual Seat) Replacement Components With Torque Specifications (1 Of 3)
GTY129010Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

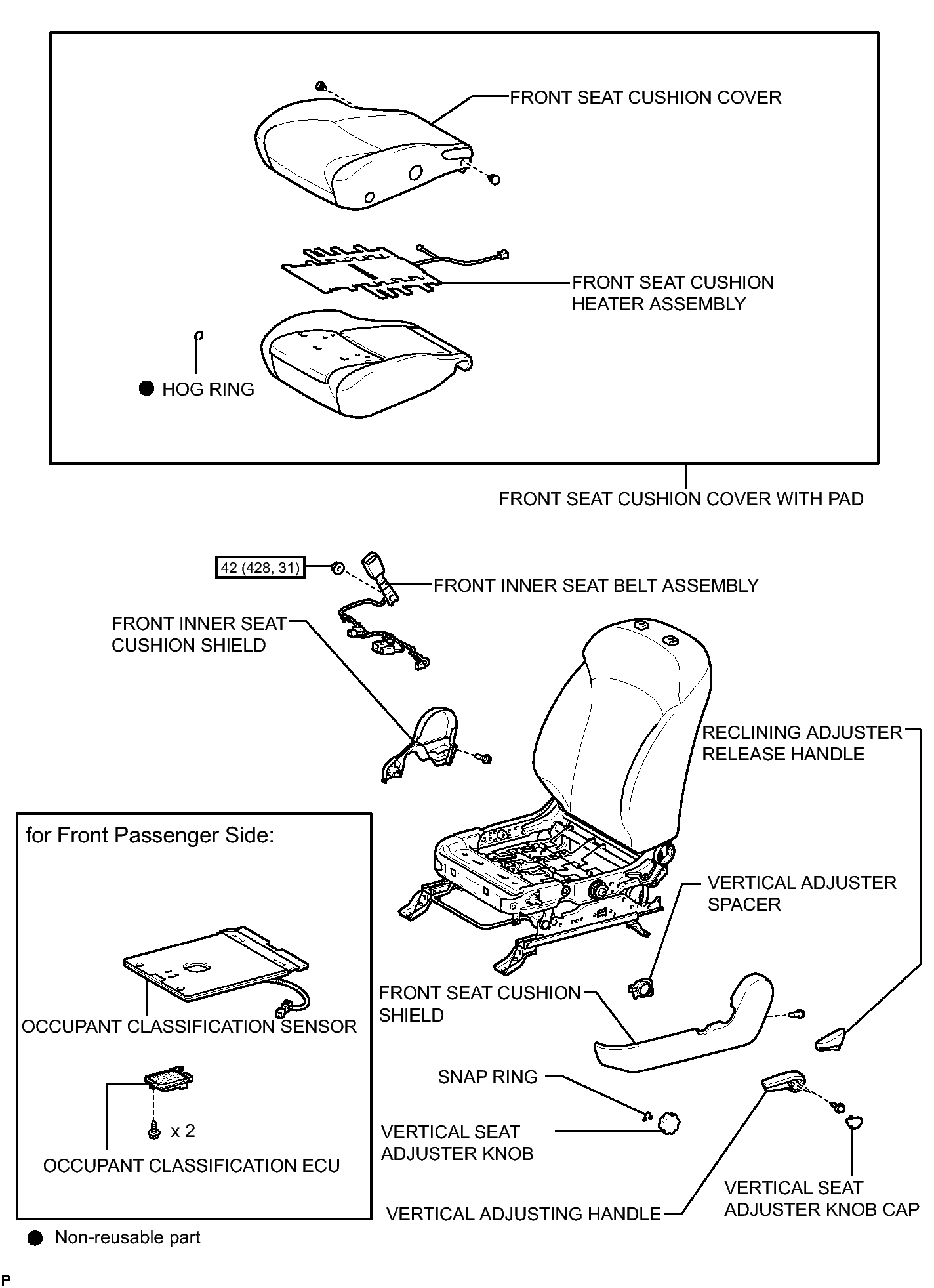

Fig 1: Identifying Front Seat Assembly (For Manual Seat) Replacement Components With Torque Specifications (2 Of 3)
GTY275255Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

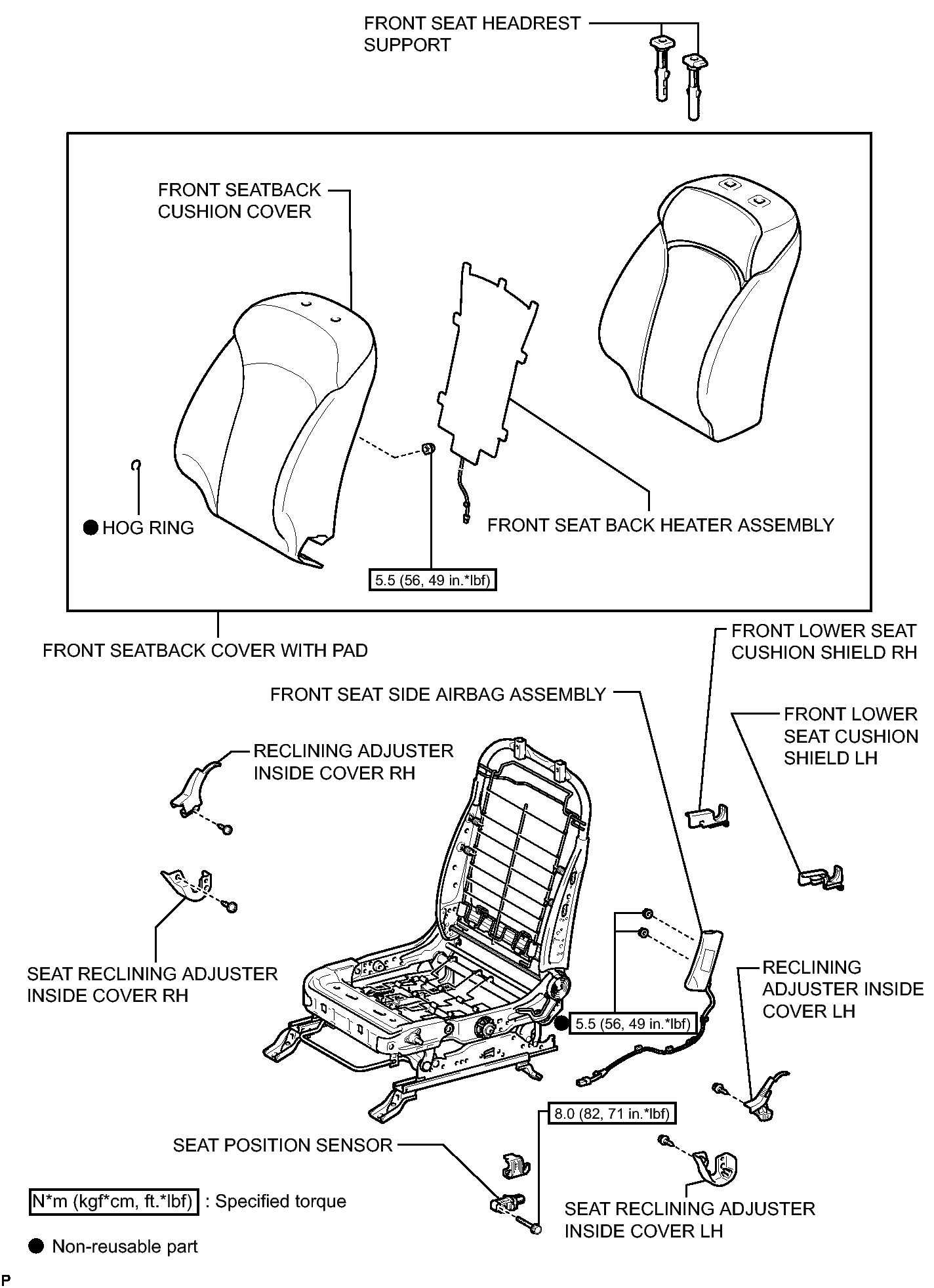

Fig 1: Identifying Front Seat Assembly (For Manual Seat) Replacement Components With Torque Specifications (3 Of 3)
GTY132326Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
