Parts Location: Illustration

Fig 1: Identifying Front Power Seat Control System Parts Location (1 Of 3)
GTY119163Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Fig 1: Identifying Front Power Seat Control System Parts Location (2 Of 3)
GTY119164Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

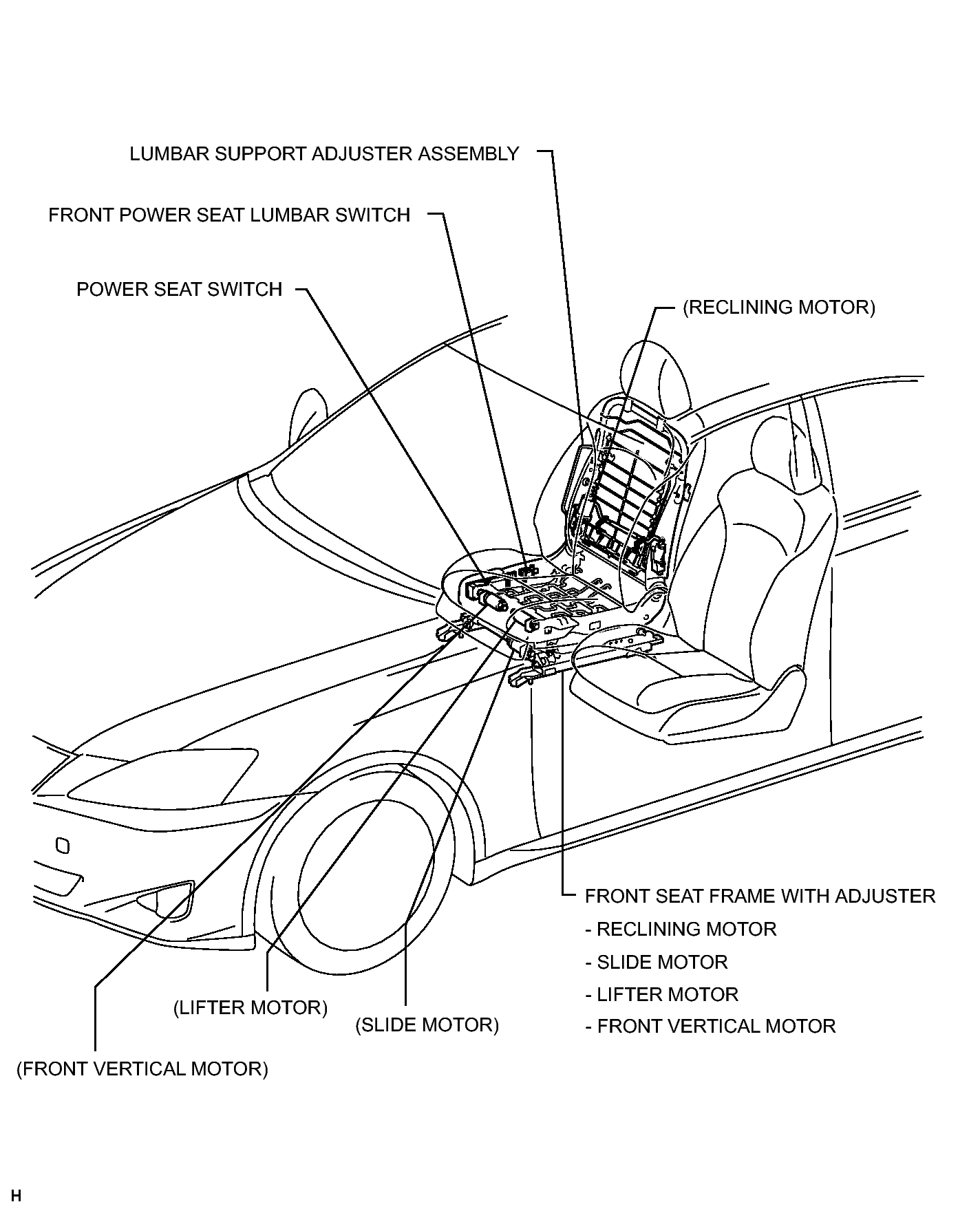

Fig 1: Identifying Front Power Seat Control System Parts Location (3 Of 3)
GTY118814Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
