Rear Sunshade (Diagnostics)
>>
Rear Sunshade System
>>
Rear Sunshade Does Not Operate With Rear Sunshade Switch
>>
Wiring Diagram
Rear Sunshade Does Not Operate With Rear Sunshade Switch: Wiring Diagram

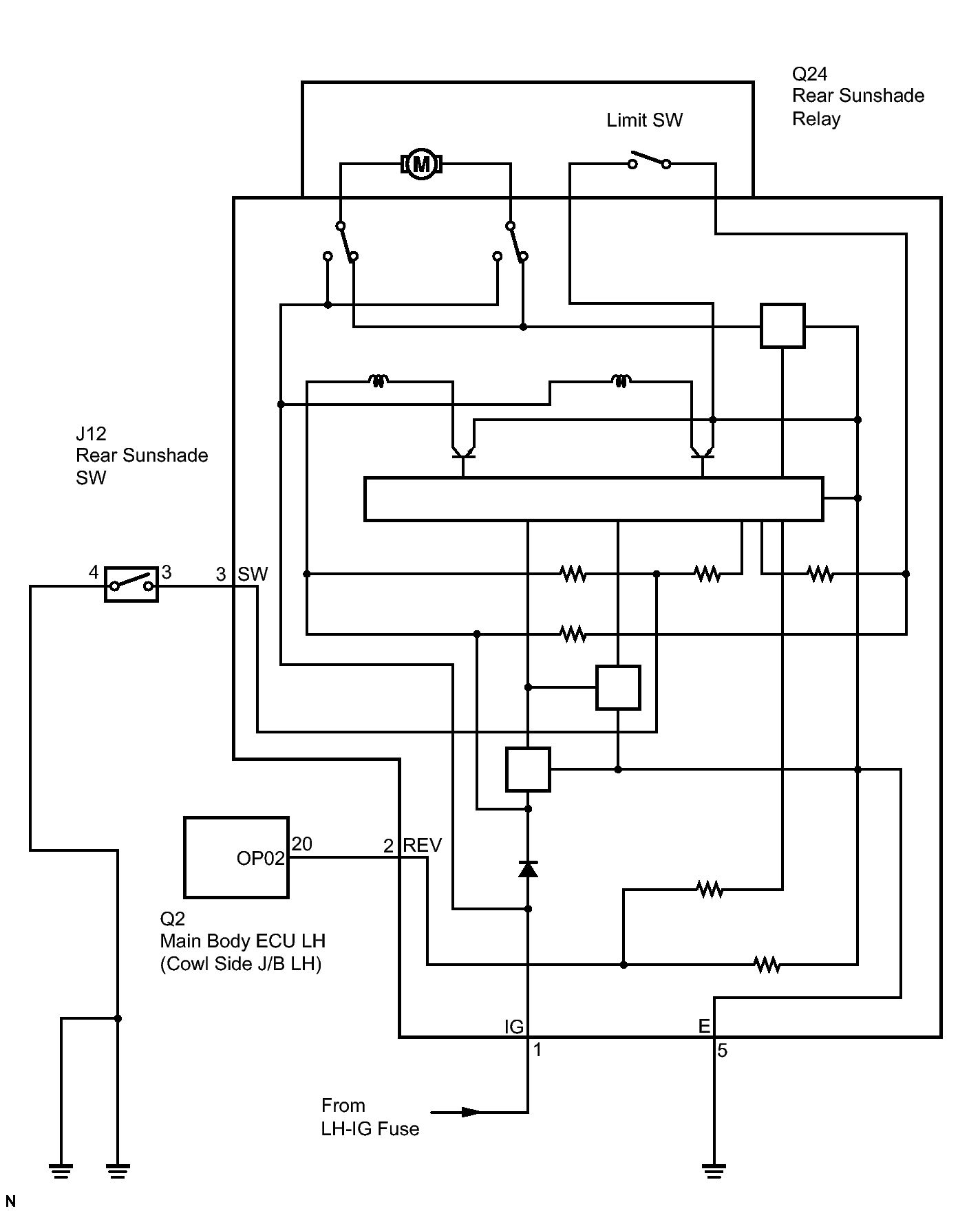

Fig 1: Rear Sunshade Does Not Operate With Rear Sunshade Switch -- Wiring Diagram
