Rear Door: Components: Illustration

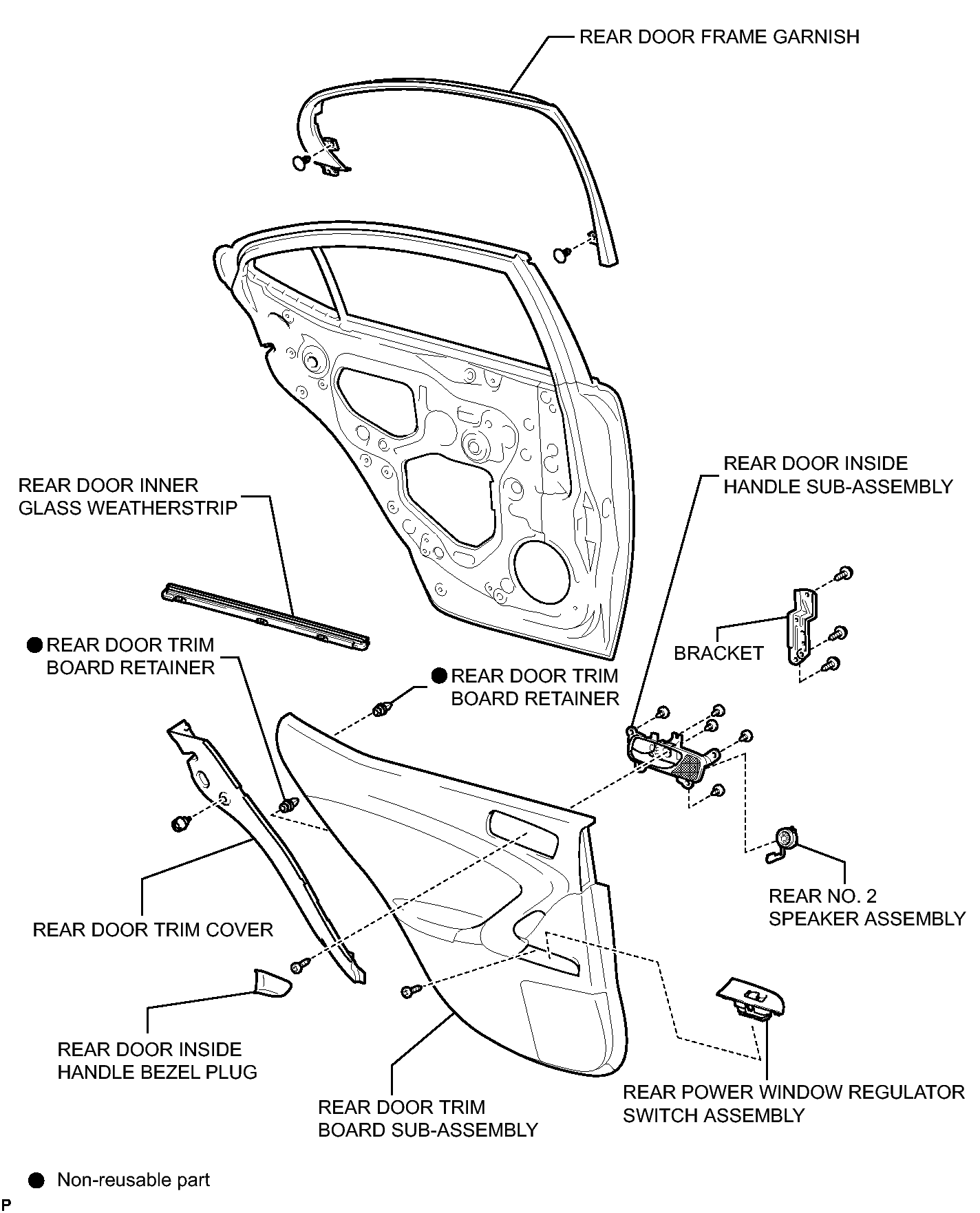

Fig 1: Identifying Rear Door Replacement Components (1 Of 3)
GTY118997Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

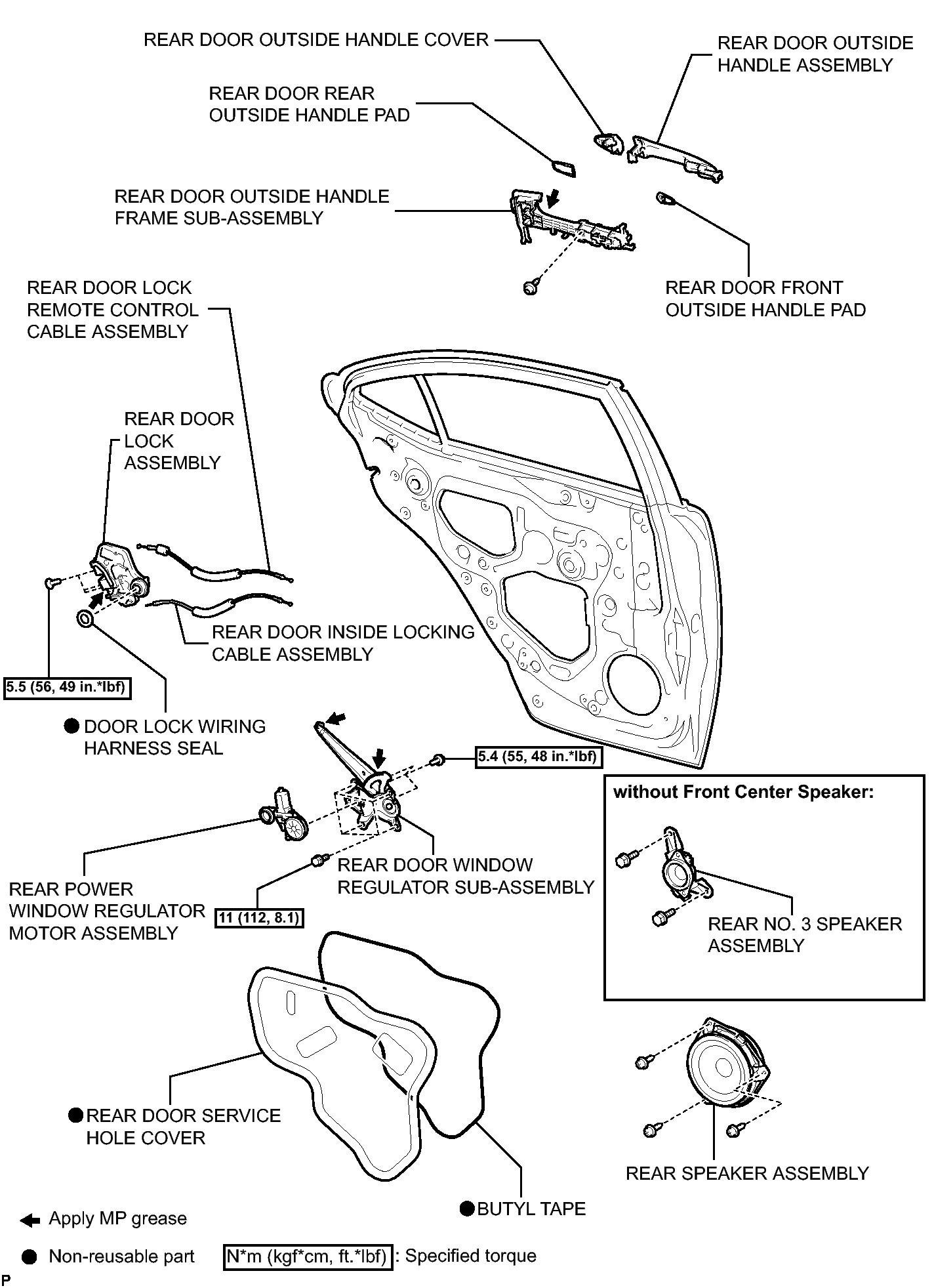

Fig 1: Exploded View Of Rear Door Components (2 Of 3) With Torque Specifications
GTY142594Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

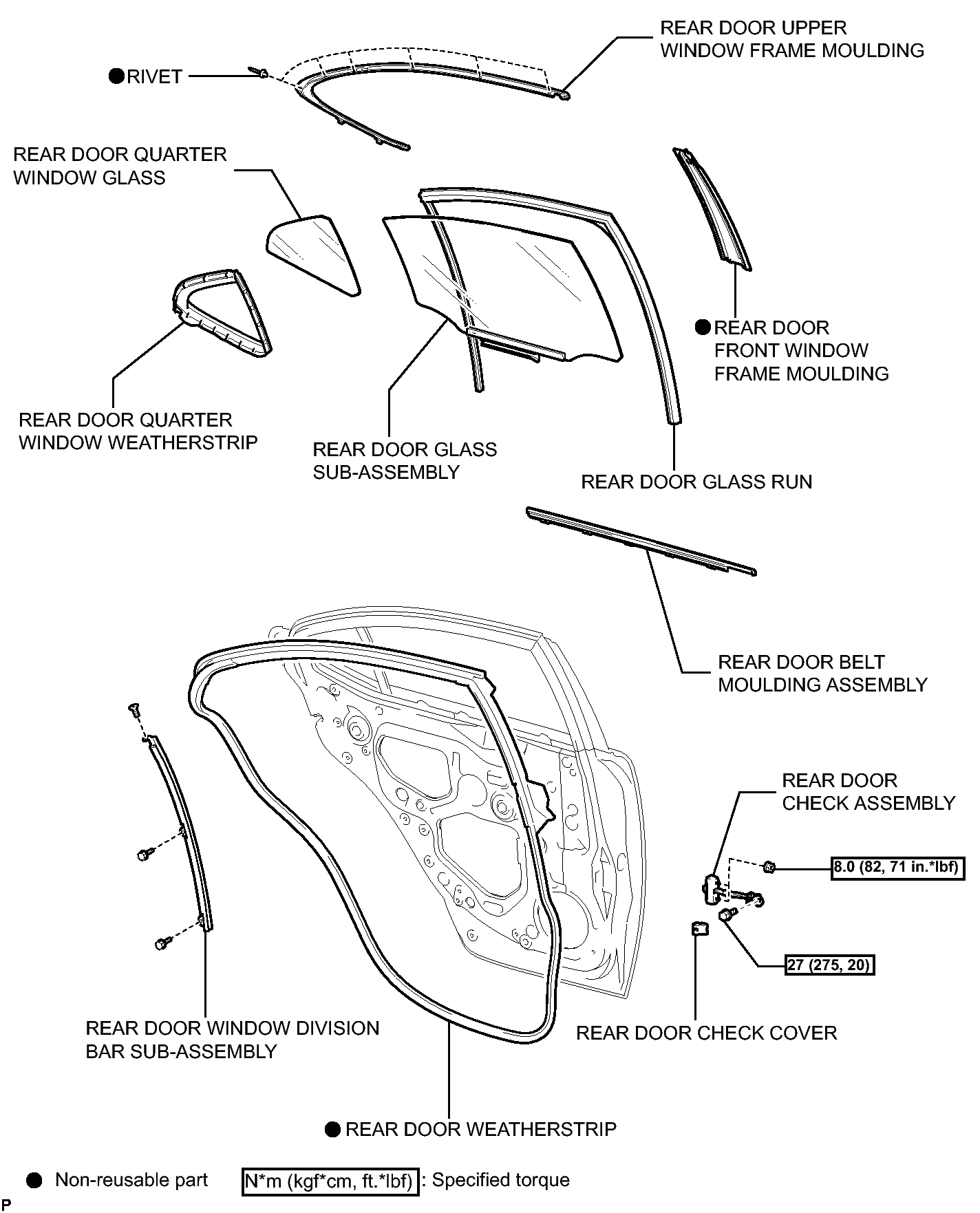

Fig 1: Exploded View Of Rear Door Components (3 Of 3) With Torque Specifications
GTY118998Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
