Fuel Lid Opener Motor Assembly: Removal: Removal

  1. REMOVE NO. 2 LUGGAGE COMPARTMENT TRIM COVER
  2. REMOVE DECK SIDE TRIM BOX LH
  3. REMOVE DECK SIDE TRIM BOX RH
  4. REMOVE ROPE HOOK ASSEMBLY  . Refer to REMOVAL - Step 4
  5. REMOVE REAR LUGGAGE COMPARTMENT TRIM COVER  . Refer to REMOVAL - Step 5
  6. REMOVE NO. 2 ROOM LIGHT ASSEMBLY  . Refer to REMOVAL - Step 6
  7. REMOVE ROPE HOOK  . Refer to REMOVAL - Step 7
  8. REMOVE FRONT LUGGAGE COMPARTMENT TRIM COVER  . Refer to REMOVAL - Step 8
  9. REMOVE NO. 1 LUGGAGE COMPARTMENT TRIM HOOK  . Refer to REMOVAL - Step 9
  10. REMOVE SIDE LUGGAGE COMPARTMENT TRIM COVER  . Refer to REMOVAL - Step 10
  11. REMOVE FUEL LID OPENER MOTOR ASSEMBLY
    1. Disconnect the connector.

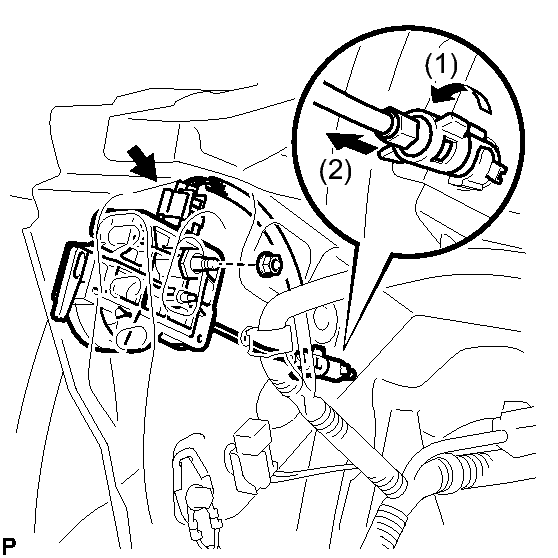

      Fig 1: Removing Fuel Lid Opener Motor Assembly
      GTY119176Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the lock and nut as shown in the illustration.
    3. Remove the fuel lid opener motor assembly.
