Fuel Lid Opener Motor Assembly: Components: Illustration

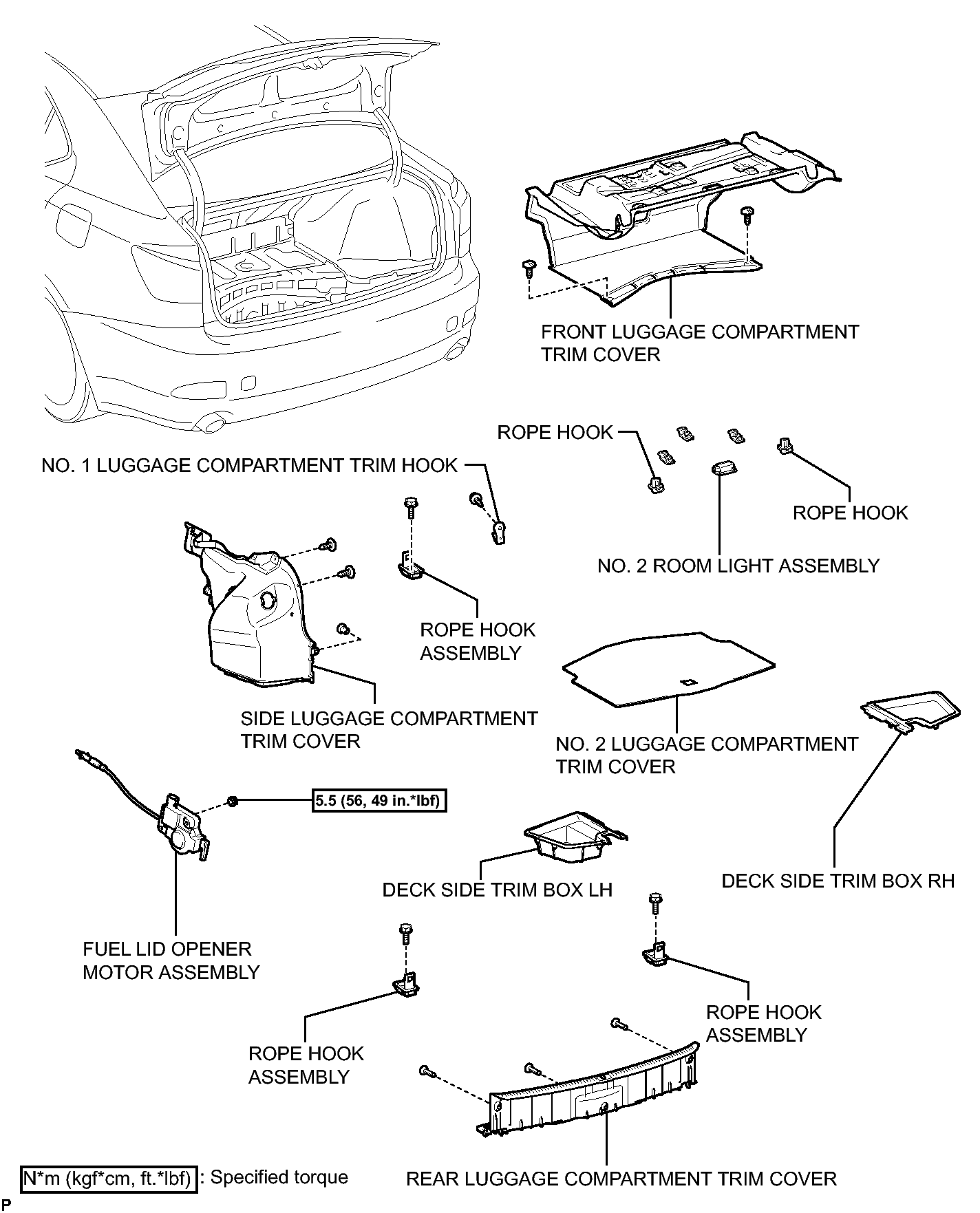

Fig 1: Identifying Fuel Lid Opener Motor Assembly Replacement Components With Torque Specifications
GTY118766Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
