Front Door: Components: Illustration

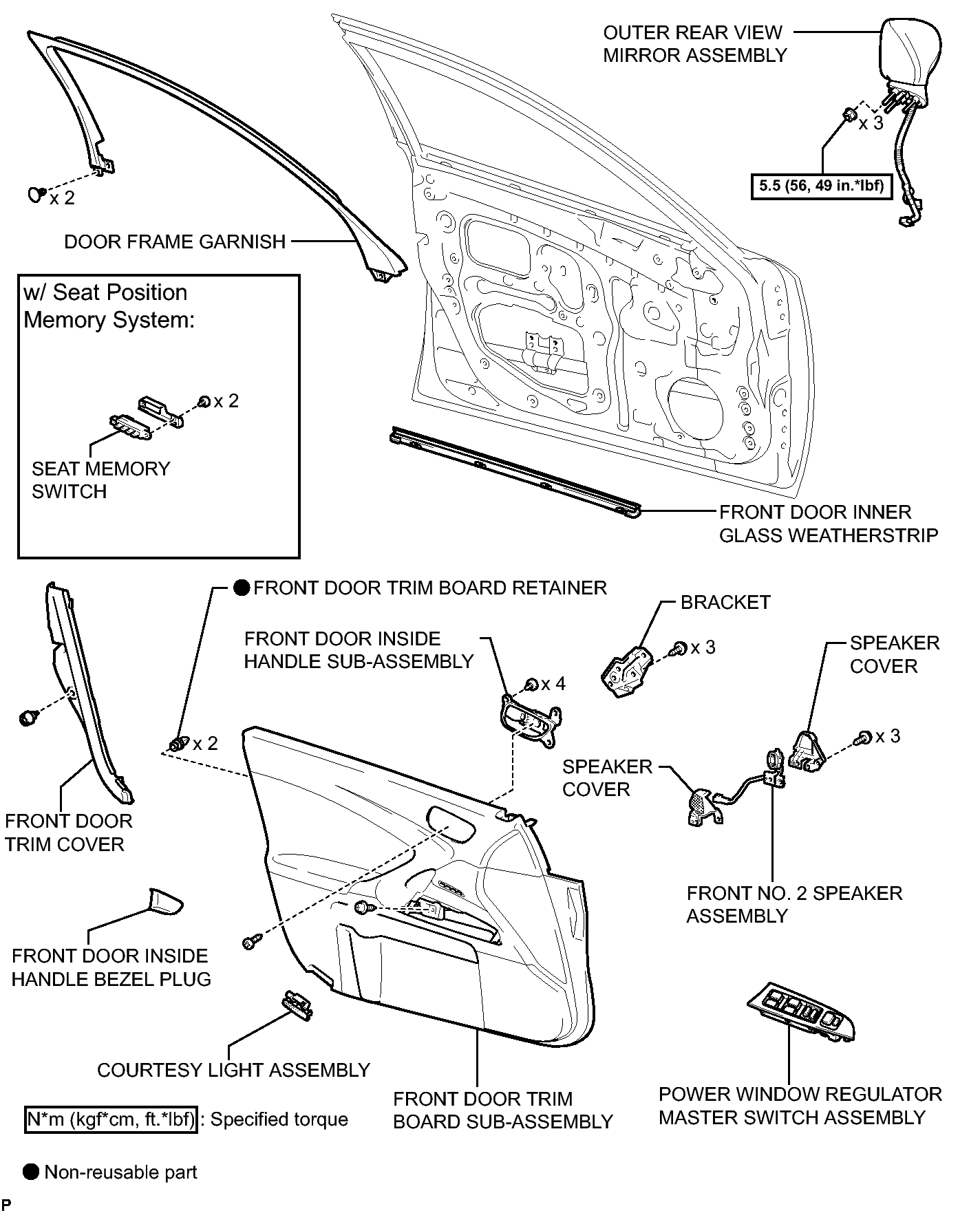

Fig 1: Identifying Front Door Replacement Components With Torque Specifications (1 Of 3)
GTY130896Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

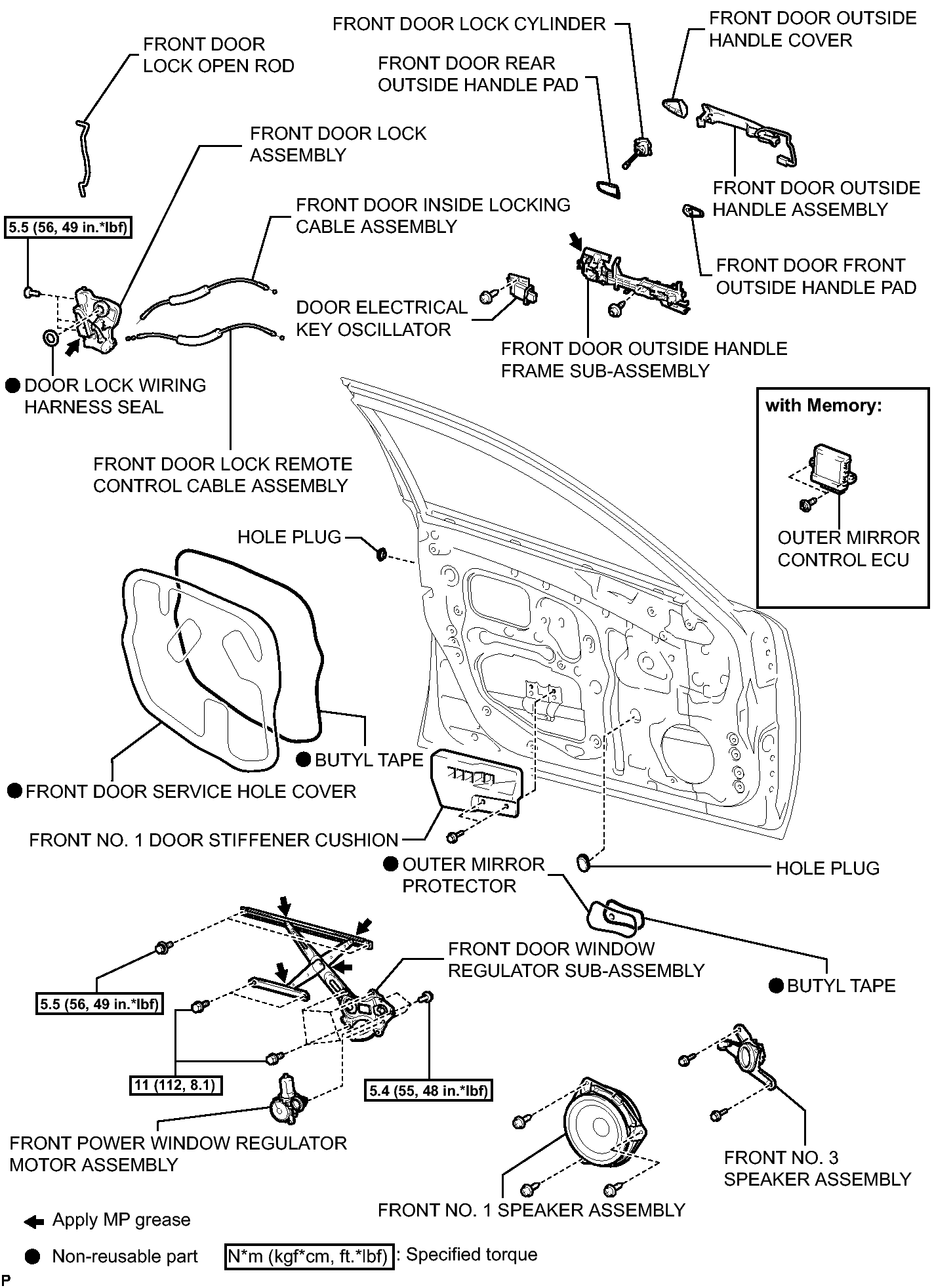

Fig 1: Identifying Front Door Replacement Components With Torque Specifications (2 Of 3)
GTY118995Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

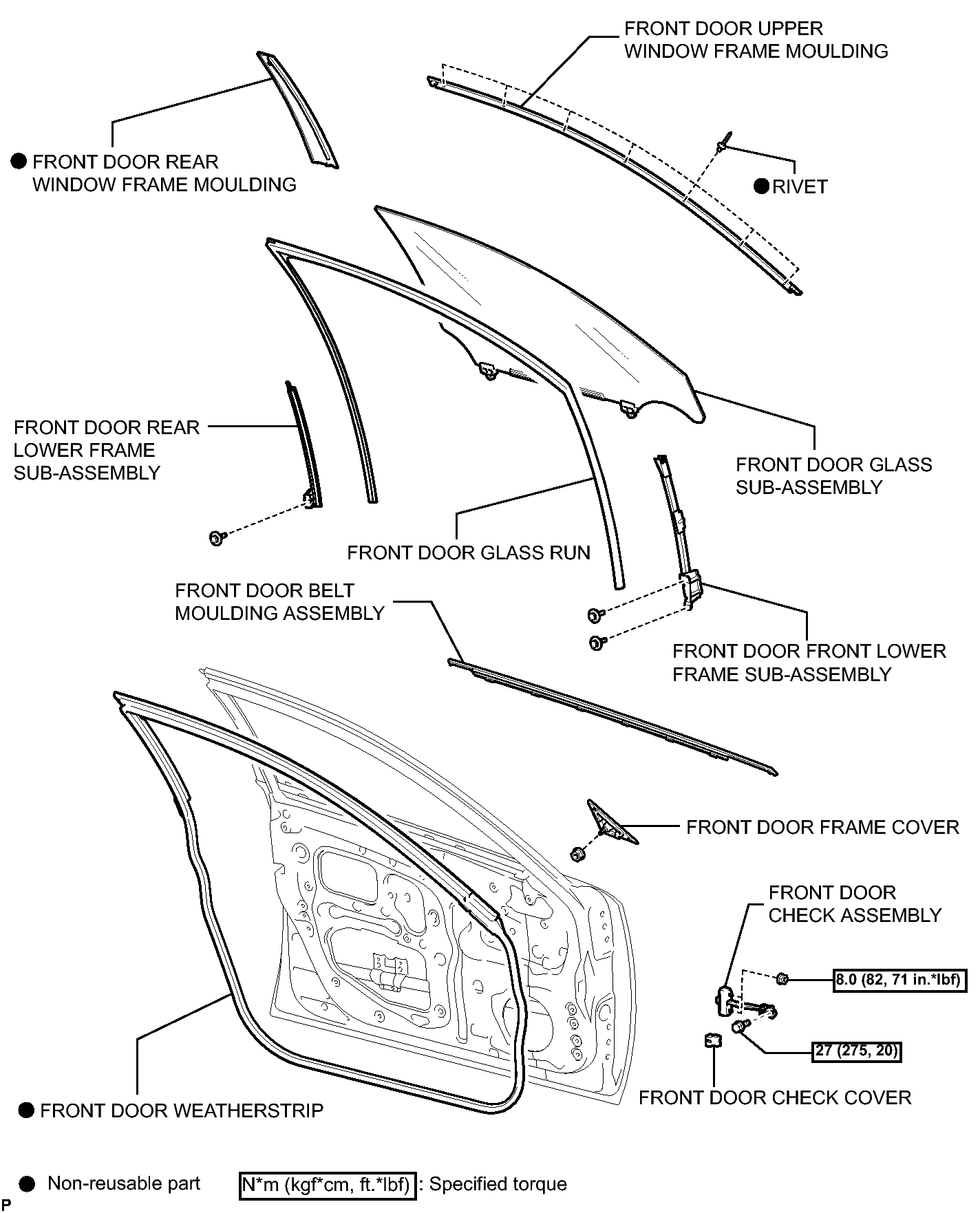

Fig 1: Identifying Front Door Replacement Components With Torque Specifications (3 Of 3)
GTY118996Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
