Parts Location: Illustration

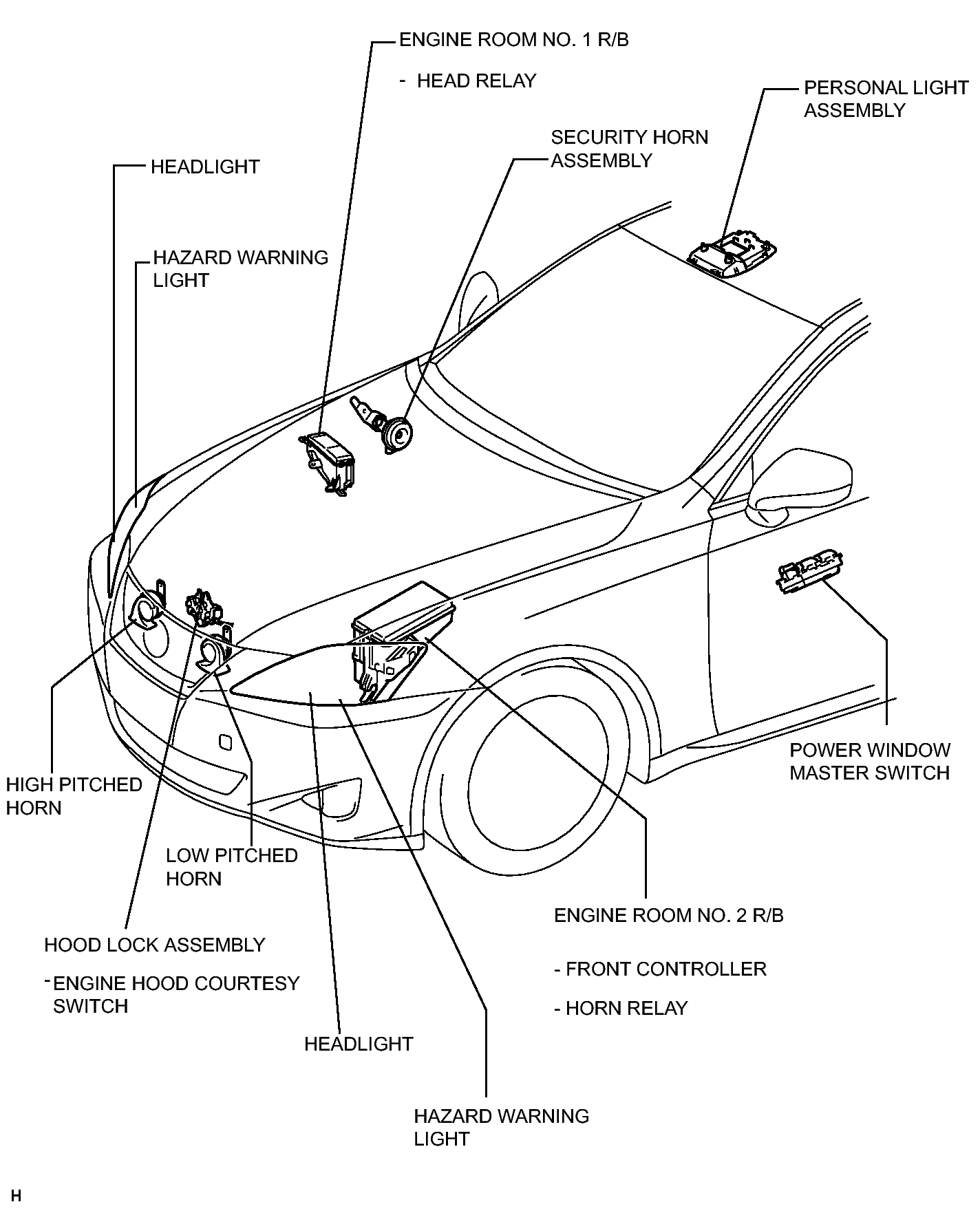

Fig 1: Identifying Theft Deterrent System replacement Components (1 Of 3)
GTY119006Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

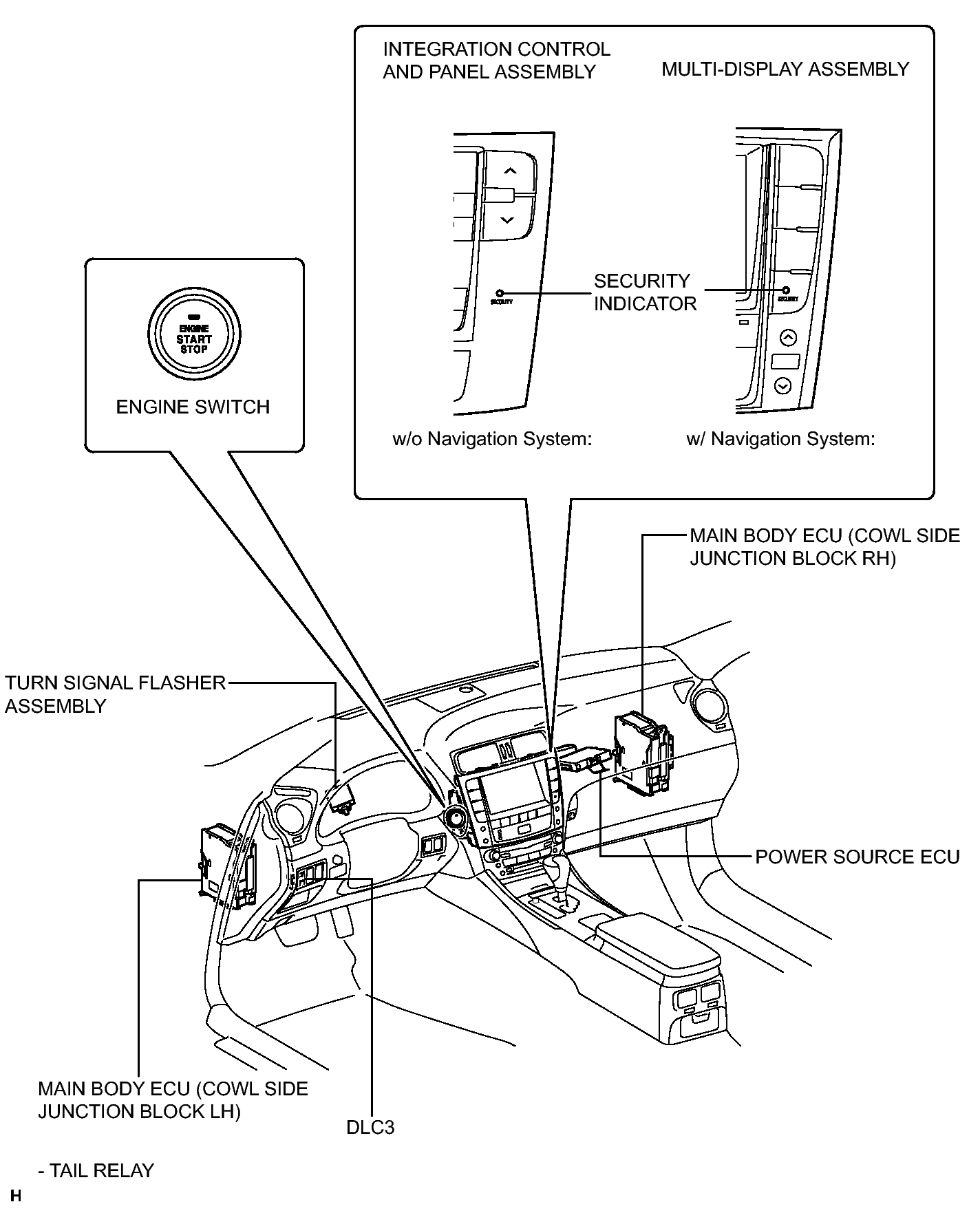

Fig 1: Identifying Theft Deterrent System replacement Components (2 Of 3)
GTY124870Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

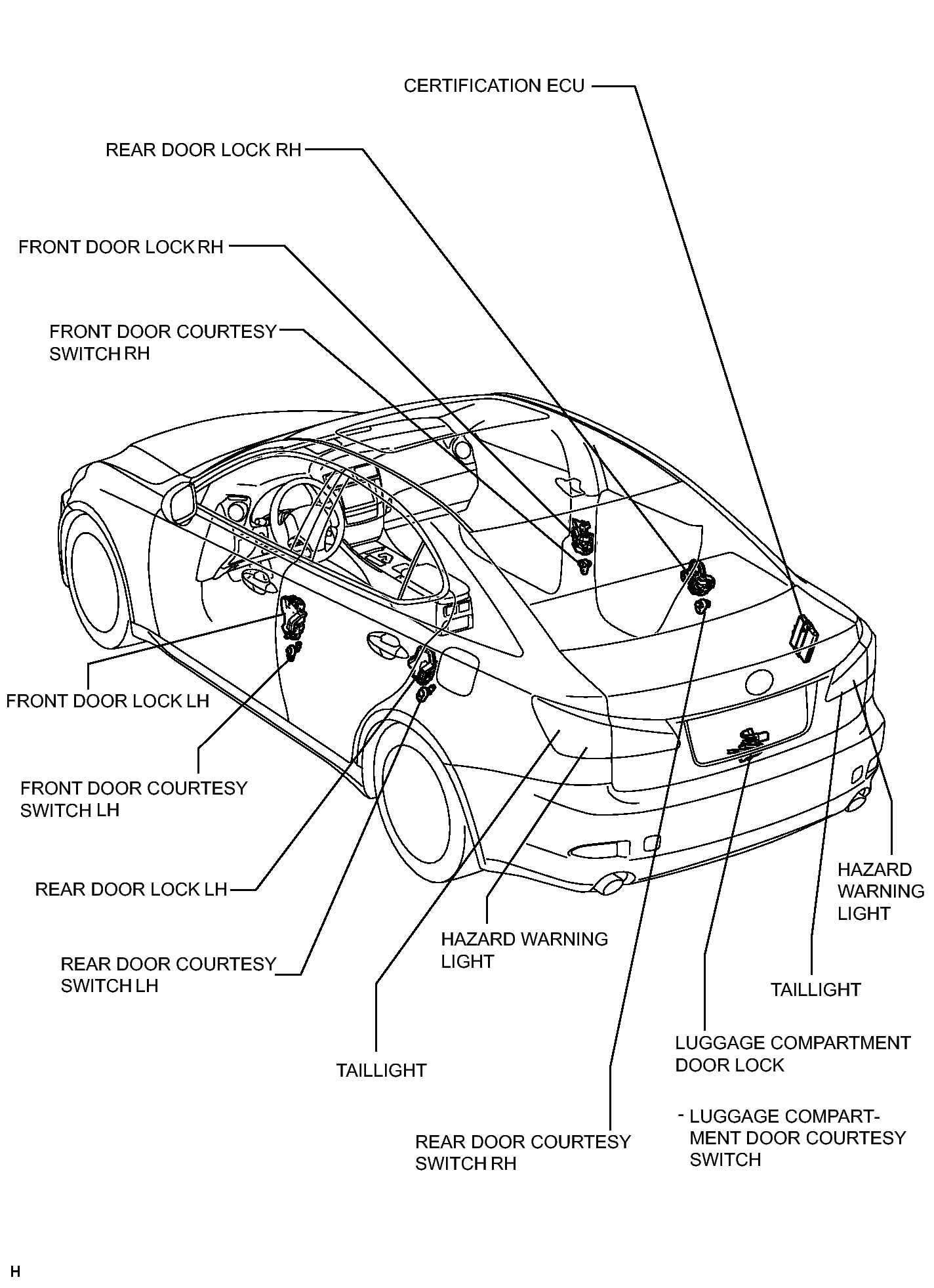

Fig 1: Identifying Theft Deterrent System replacement Components (3 Of 3)
GTY118781Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
