Parts Location: Illustration

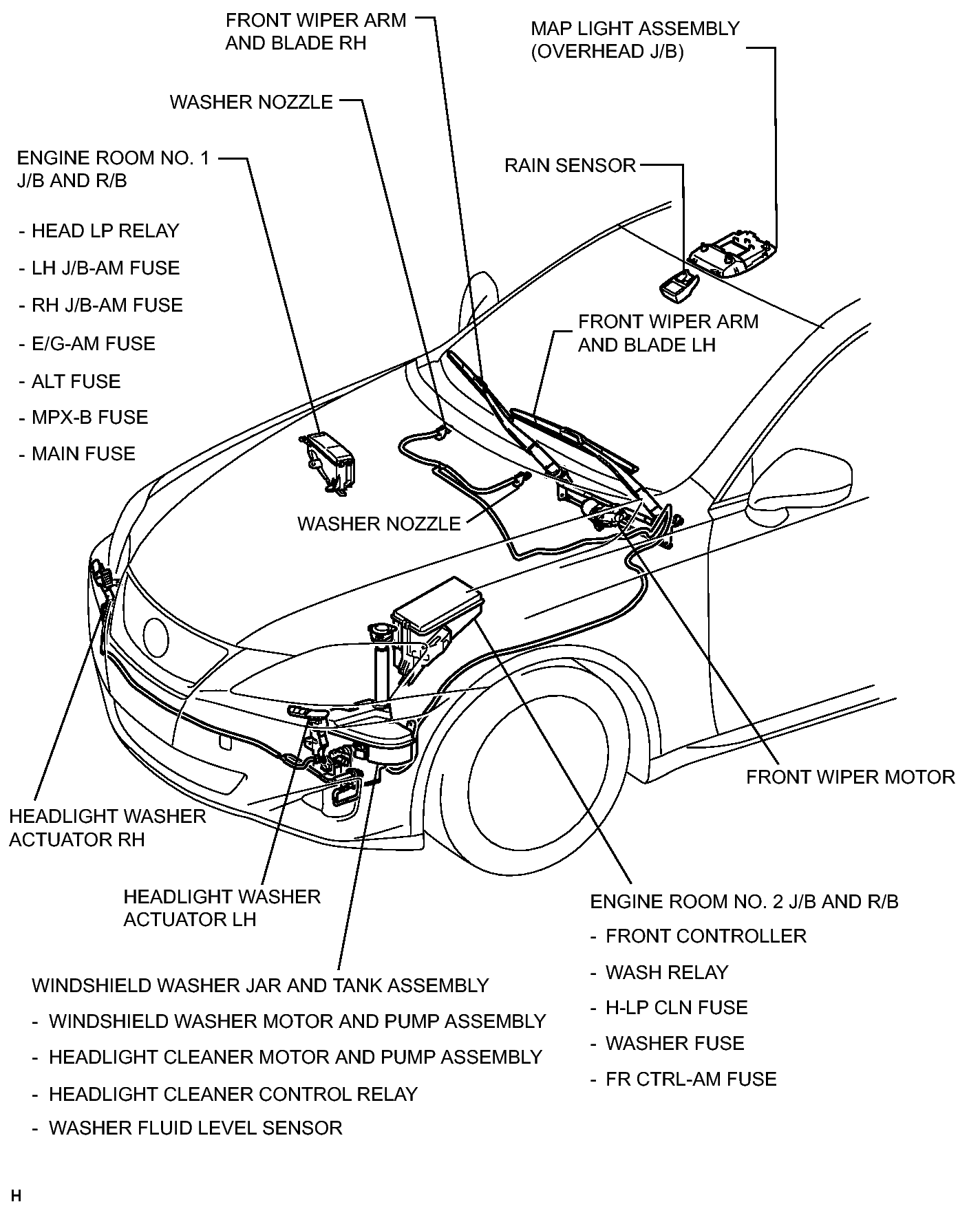

Fig 1: Identifying Wiper And Washer System Replacement Components (1 Of 2)
GTY133031Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

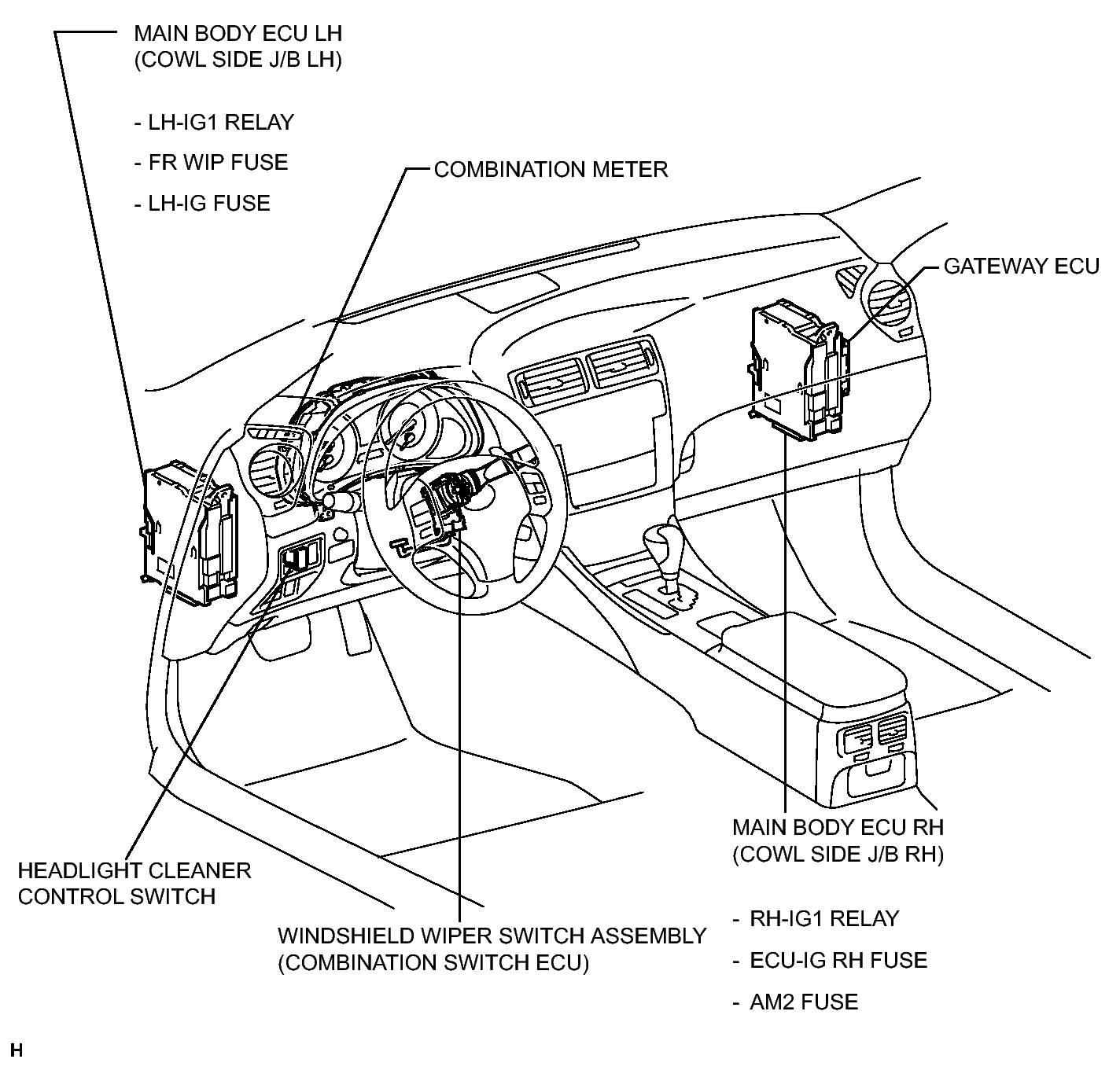

Fig 1: Identifying Wiper And Washer System Replacement Components (2 Of 2)
GTY138036Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
