Front Passenger Side Seat Belt Warning Light Malfunction: Wiring Diagram

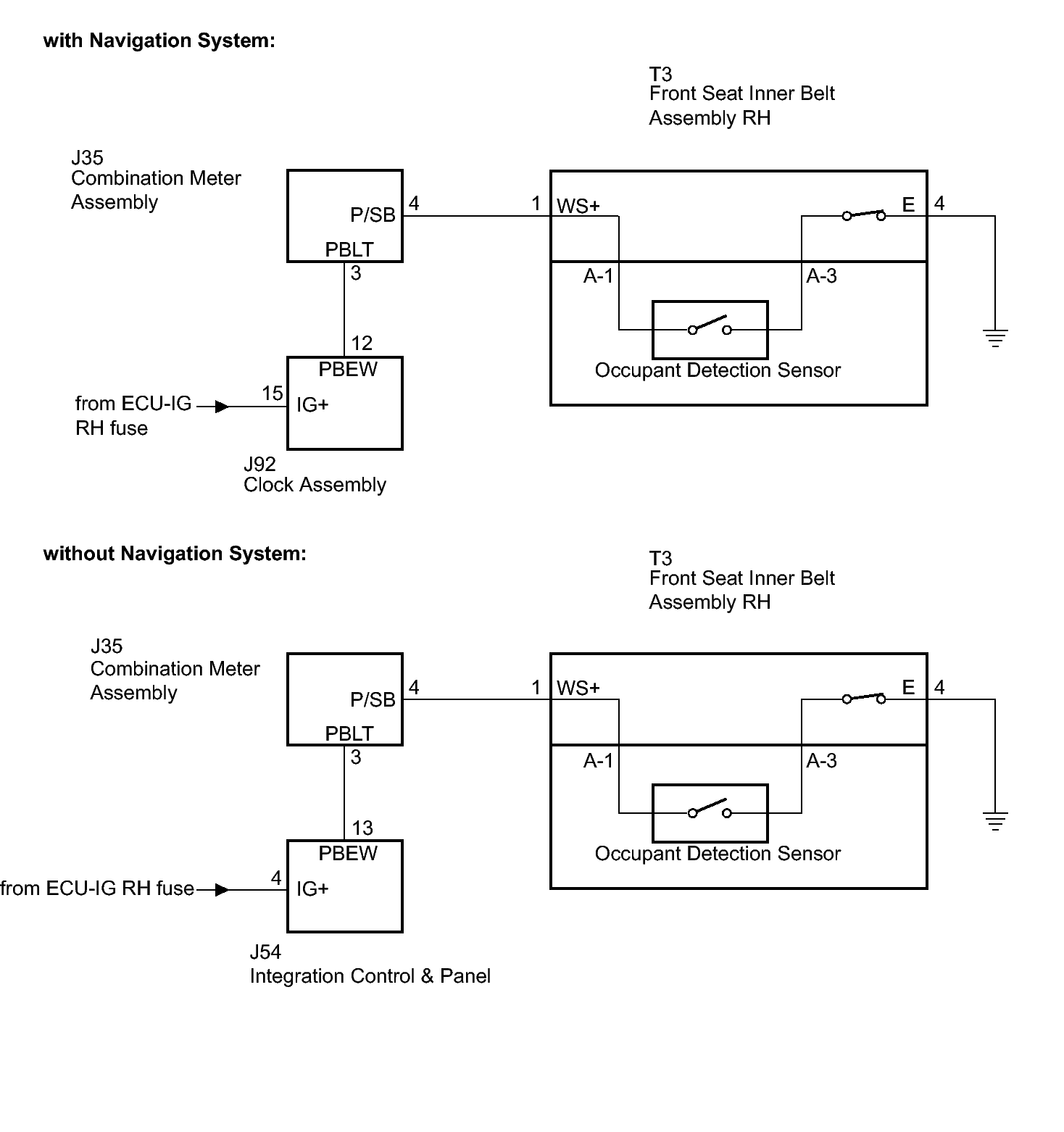

Fig 1: Front Seat Inner Belt Assembly -- Wiring Diagram

GTY128771

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
