Front Passenger Side Seat Belt Warning Light Malfunction: Wiring Diagram

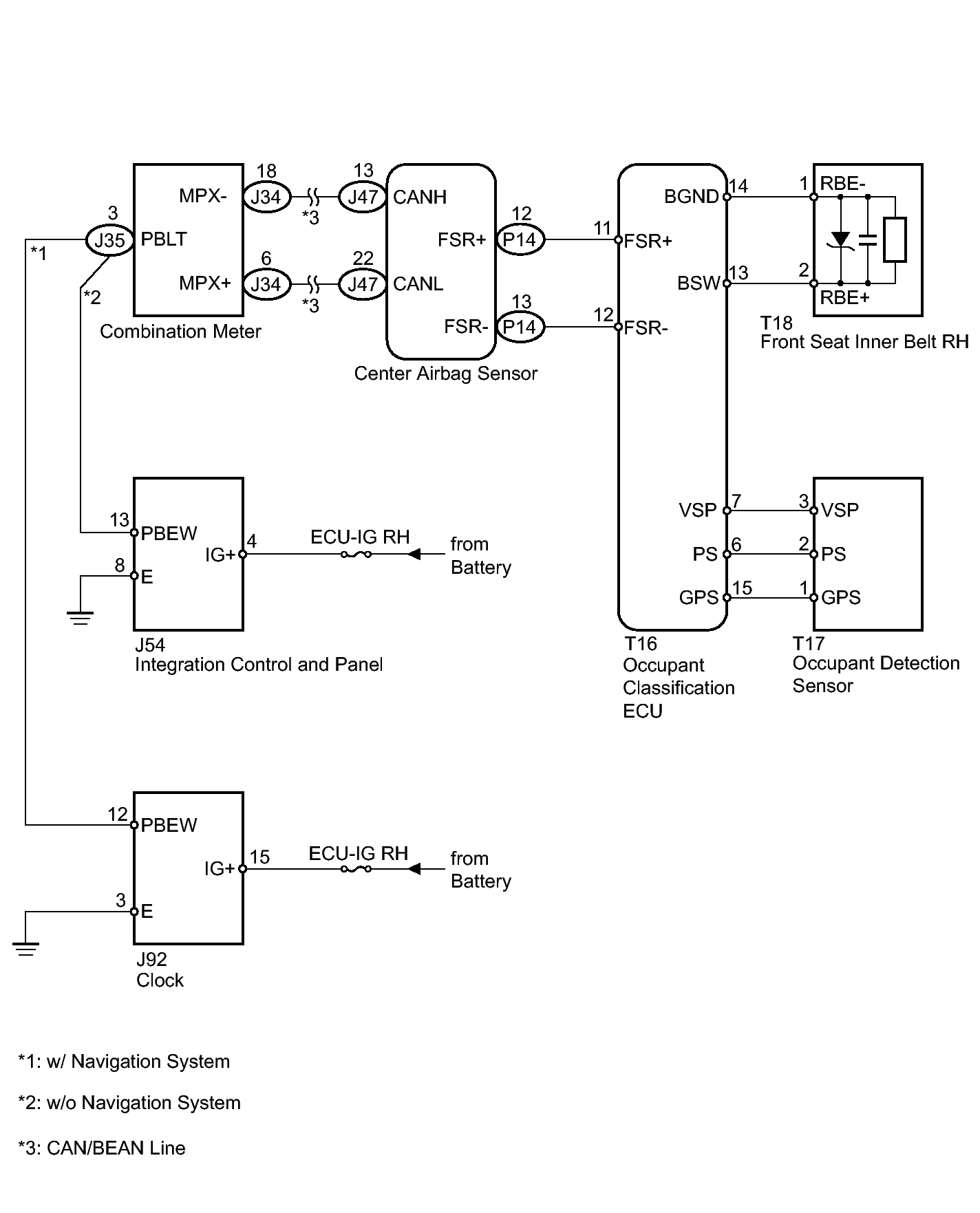

Fig 1: Front Passenger Side Seat Belt Wiring Diagram

GTY126697

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
