Warning Systems
>>
Intuitive Parking Assist (Diagnostic Codes & Circuit Tests)
>>
Intuitive Parking Assist System
>>
No. 1 Clearance Warning Buzzer Circuit
>>
Wiring Diagram

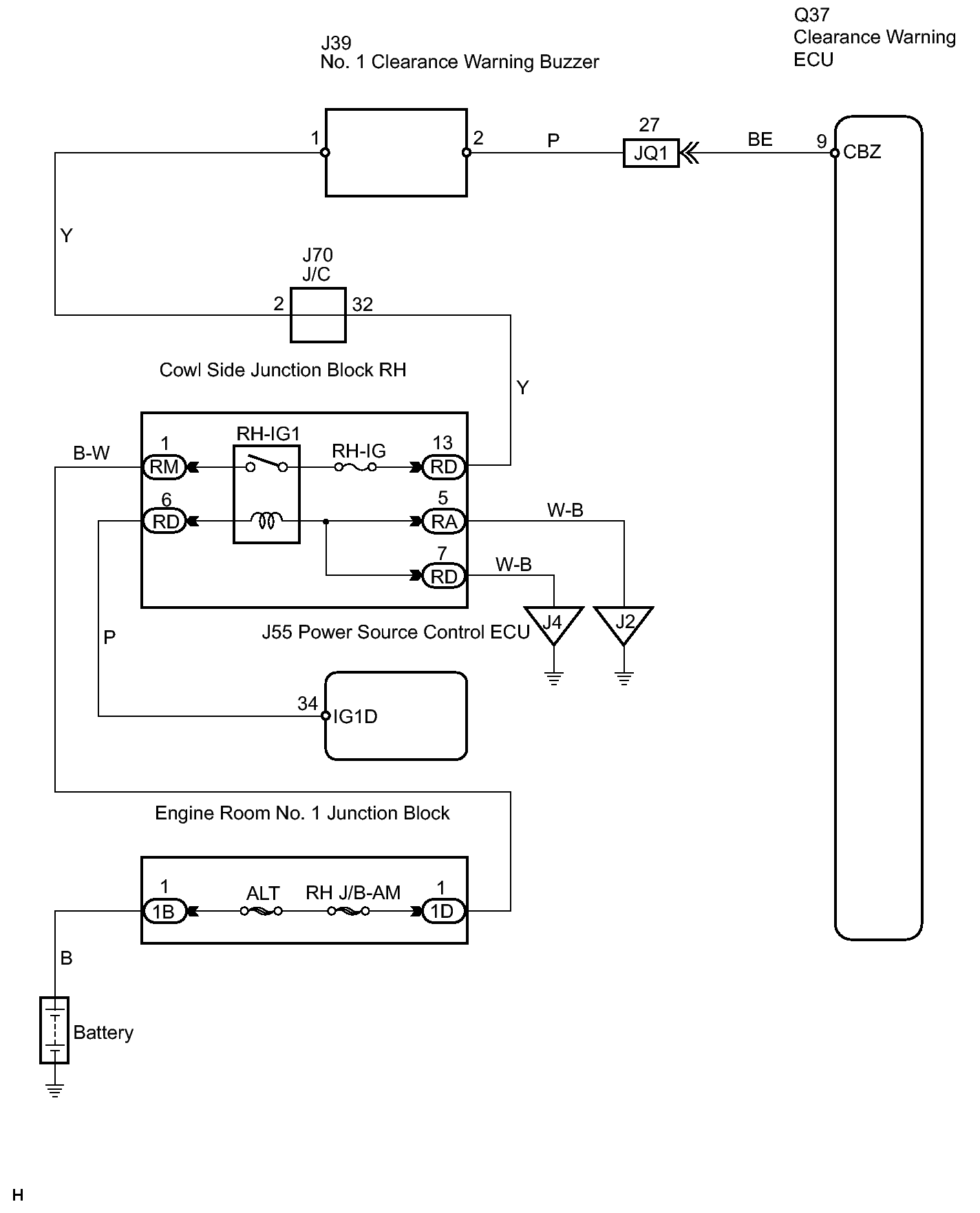

No. 1 Clearance Warning Buzzer Circuit: Wiring Diagram
Fig 1: View Of Clearance Warning Buzzer Circuit Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
