Front Passenger Side Power Seat Motor Circuit: Wiring Diagram

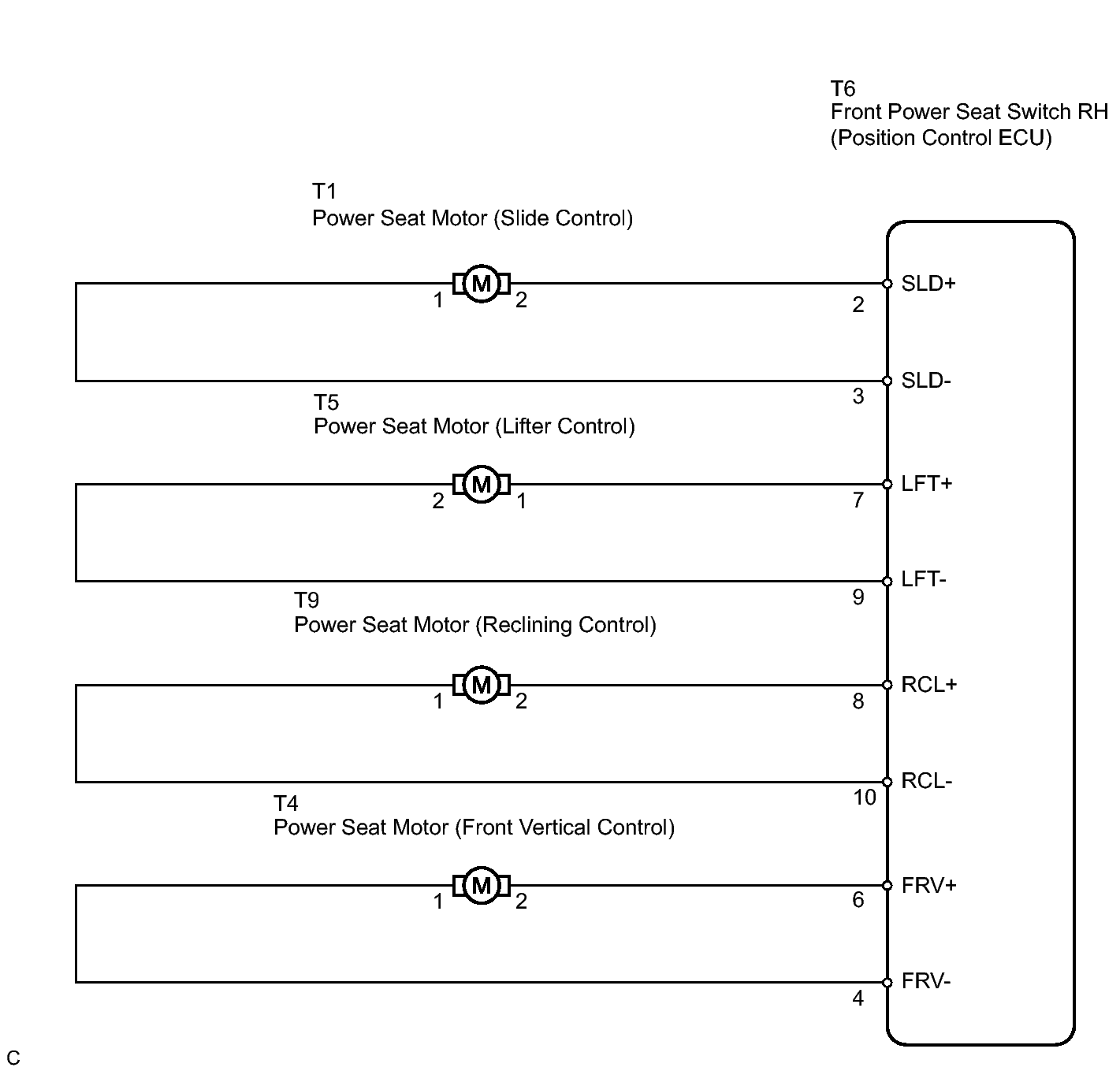

Fig 1: Wiring Diagram -- Front Passenger Side Power Seat Motor Circuit

GTY119638

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
