Rear Door Courtesy Switch: Components: Illustration

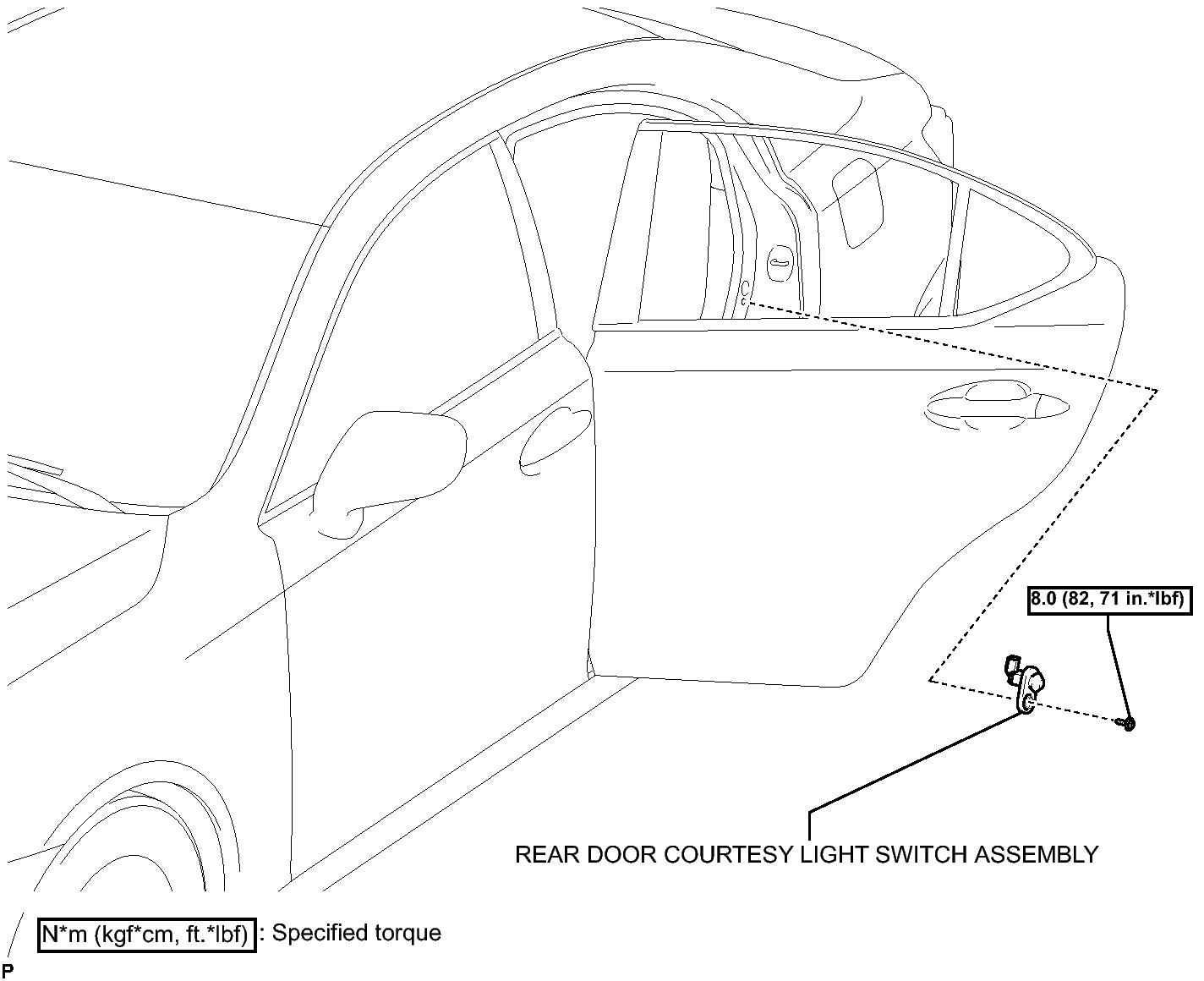

Fig 1: Identifying Rear Door Courtesy Switch Replacement Components With Torque Specifications

GTY151406

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
