Steering Pad Switch Circuit: Wiring Diagram

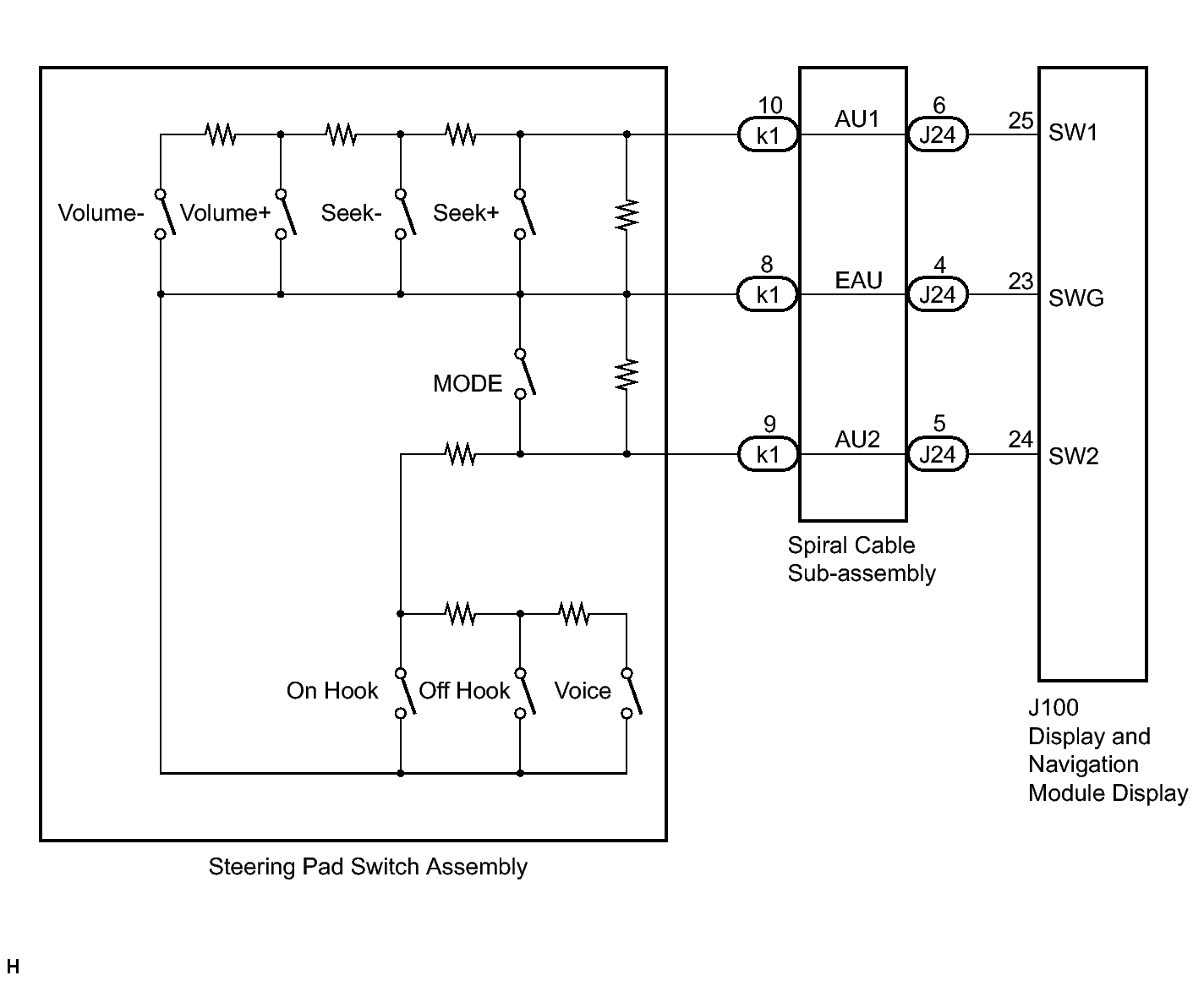

Fig 1: Steering Pad Switch Assembly Circuit Diagram

GTY260826

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
