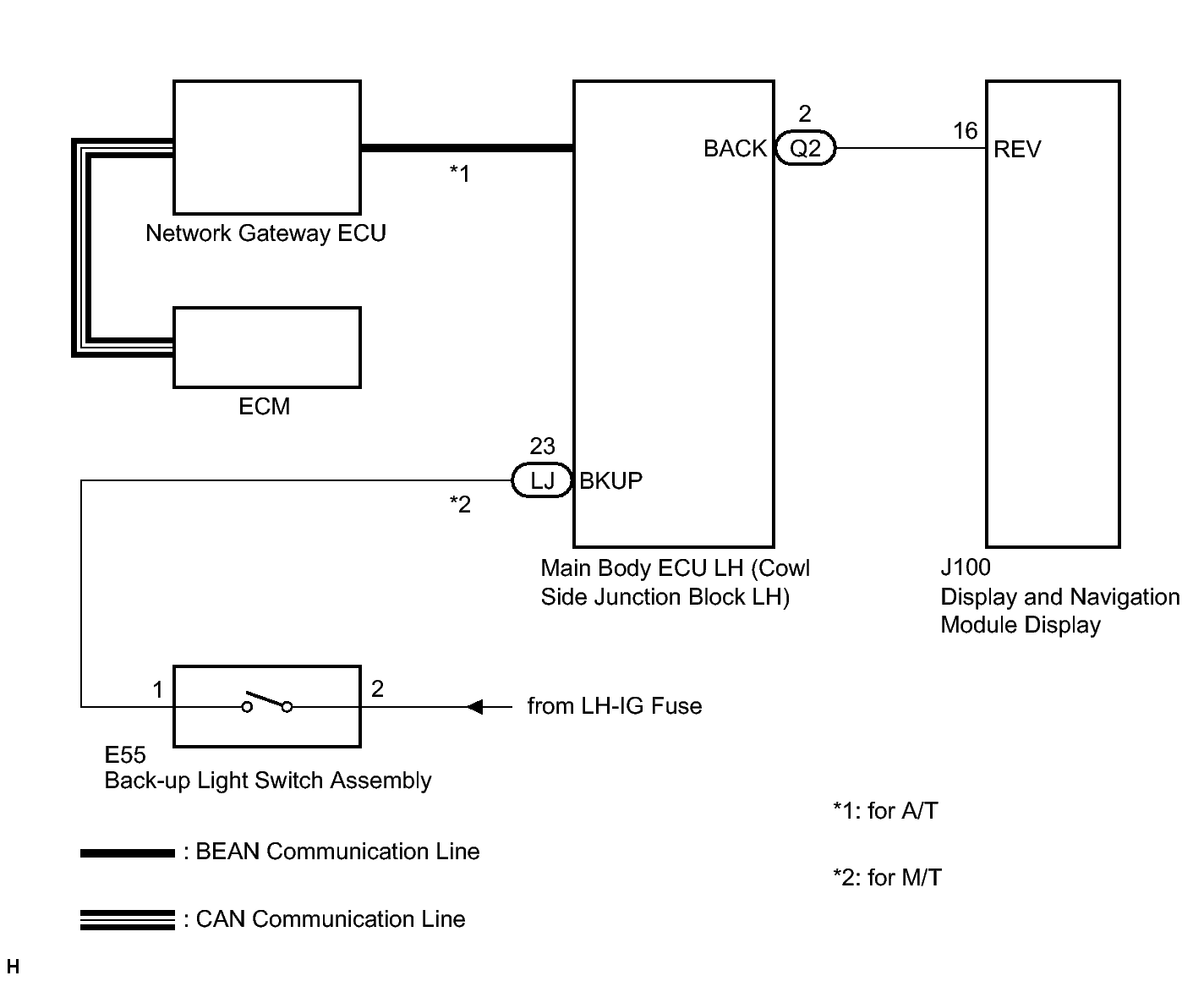

Home >> Lexus >> 2010 >> IS 250 AWD >> Repair and Diagnosis (Single Page) >> Accessories & Equipment >> Infotainment >> Navigation (For HDD) (Diagnostic Codes & Symptom Tests) >> NAVIGATION SYSTEM (for HDD) >> Reverse Signal Circuit >> Wiring Diagram
