Microphone Circuit between Microphone and Navigation ECU: Wiring Diagram

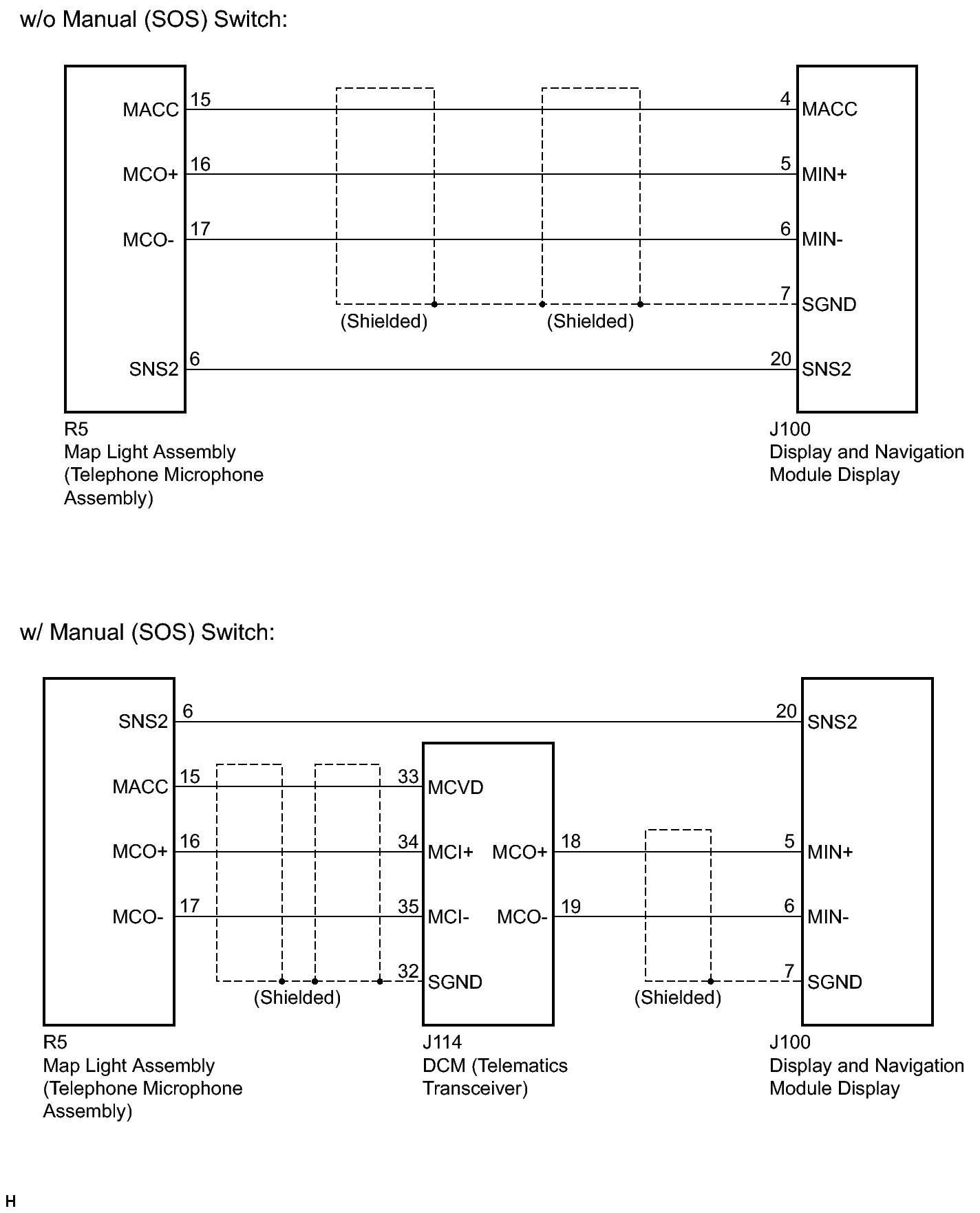

Fig 1: Microphone Circuit Between Microphone And Navigation ECU

GTY267532

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
