Parts Location: Illustration

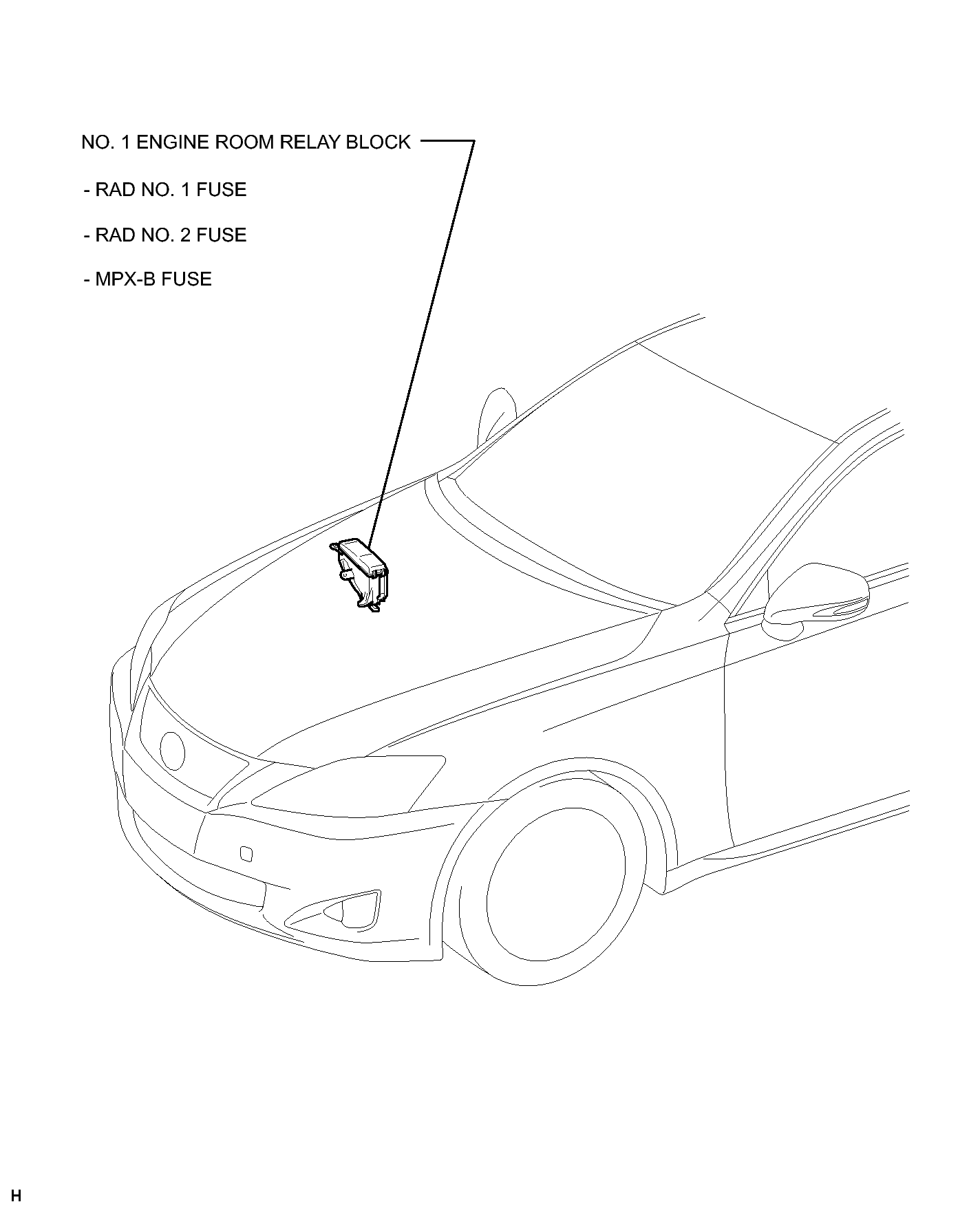

Fig 1: Identifying Navigation System (For DVD) Parts Location (1 Of 3)
GTY255083Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

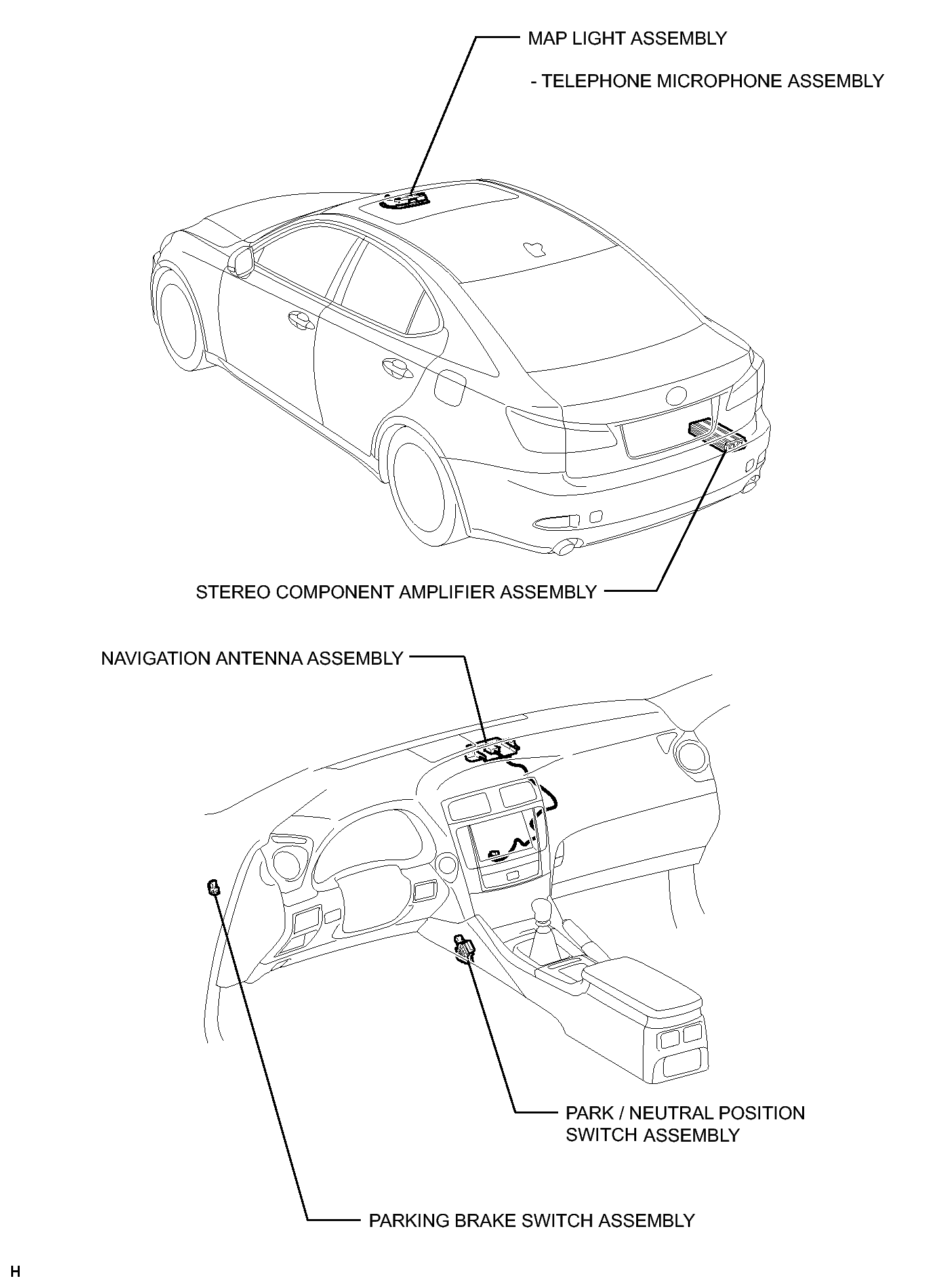

Fig 1: Identifying Navigation System (For DVD) Parts Location (2 Of 3)
GTY260914Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

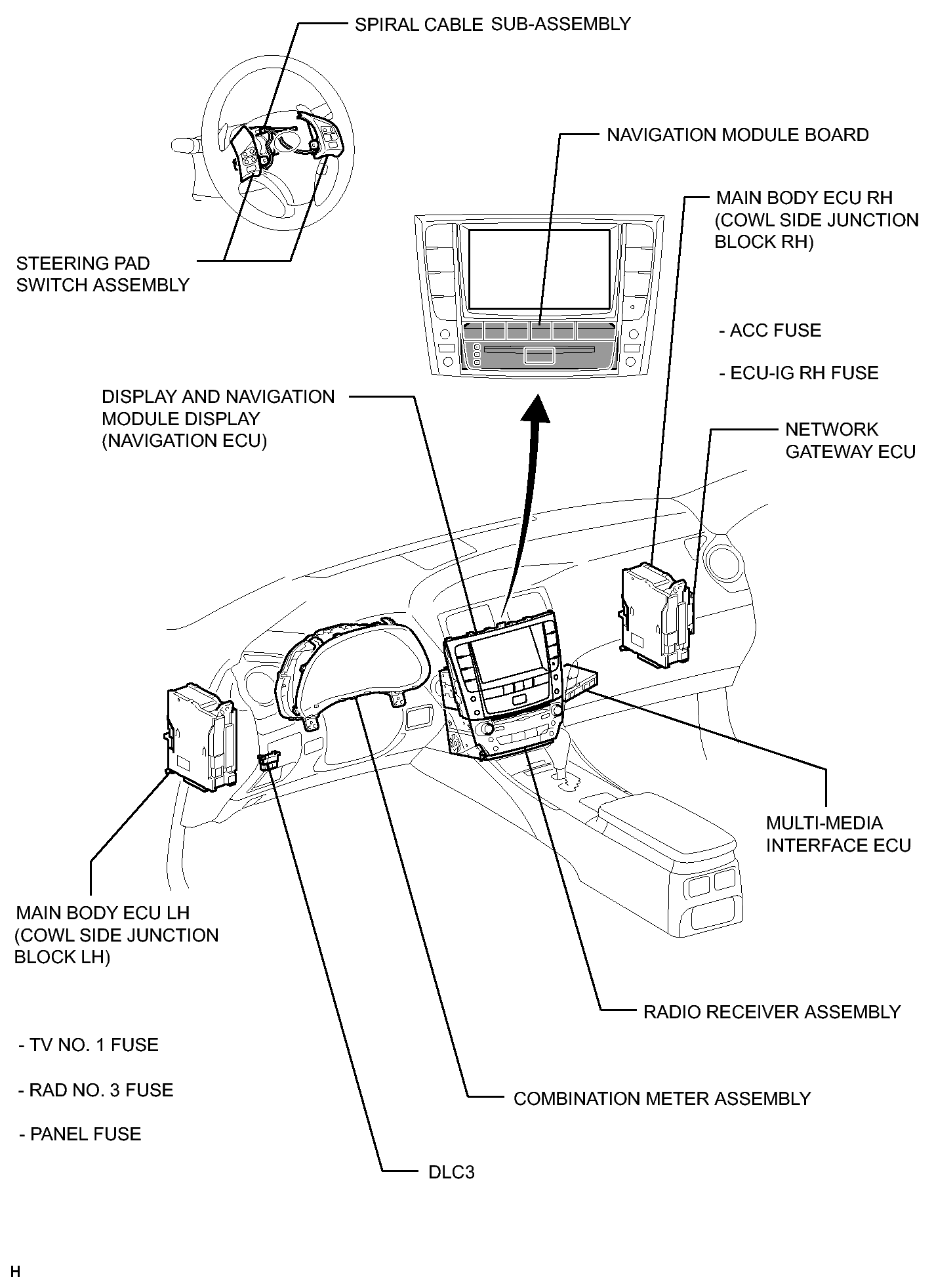

Fig 1: Identifying Navigation System (For DVD) Parts Location (3 Of 3)
GTY282737Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
