Steering Pad Switch Circuit: Wiring Diagram

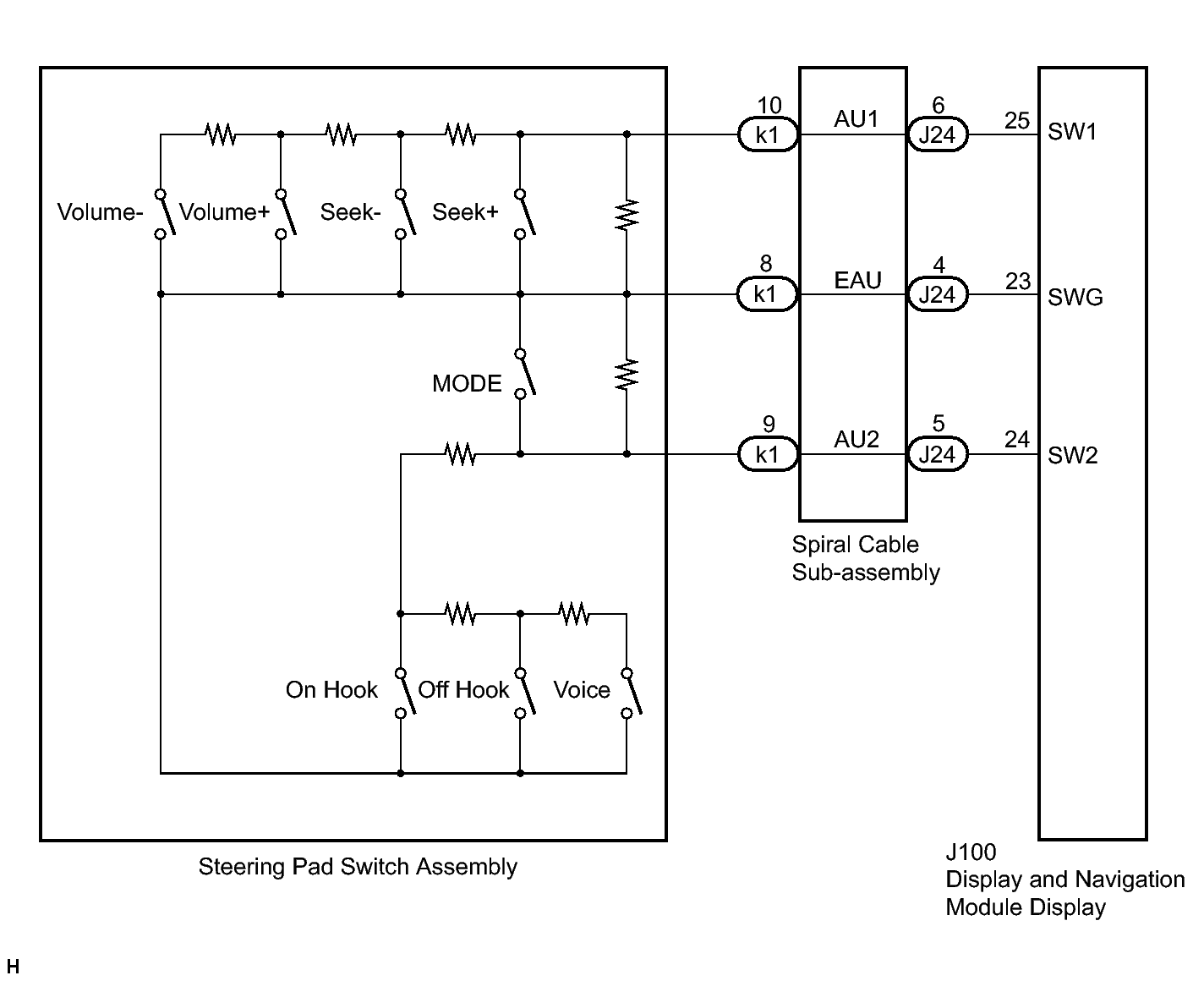

Fig 1: View Of Steering Pad Switch Circuit Wiring Diagram

GTY258758

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
