DTC B15D0: MOST Communication Malfunction: Wiring Diagram

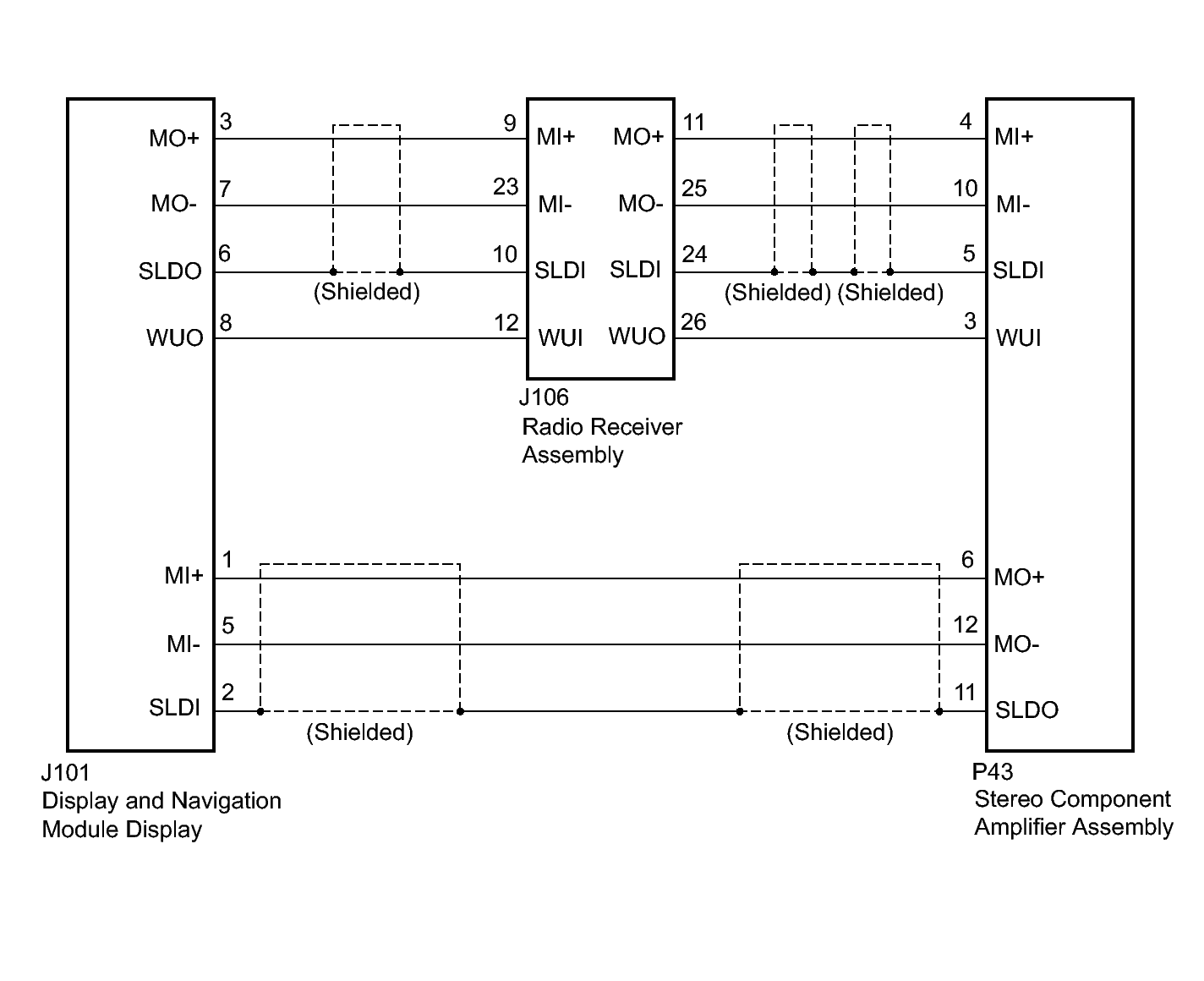

Fig 1: View Of MOST Network Wiring Diagram

GTY256276

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
