Infotainment
>>
Navigation (For DVD) (Diagnostic Codes & Symptom Tests)
>>
NAVIGATION SYSTEM (for DVD)
>>
DTC B1593: No Response from Stereo Component Amplifier; DTC B15D3: Stereo Component Amplifier Disconnected
>>
Wiring Diagram
DTC B1593: No Response from Stereo Component Amplifier; DTC B15D3: Stereo Component Amplifier Disconnected: Wiring Diagram

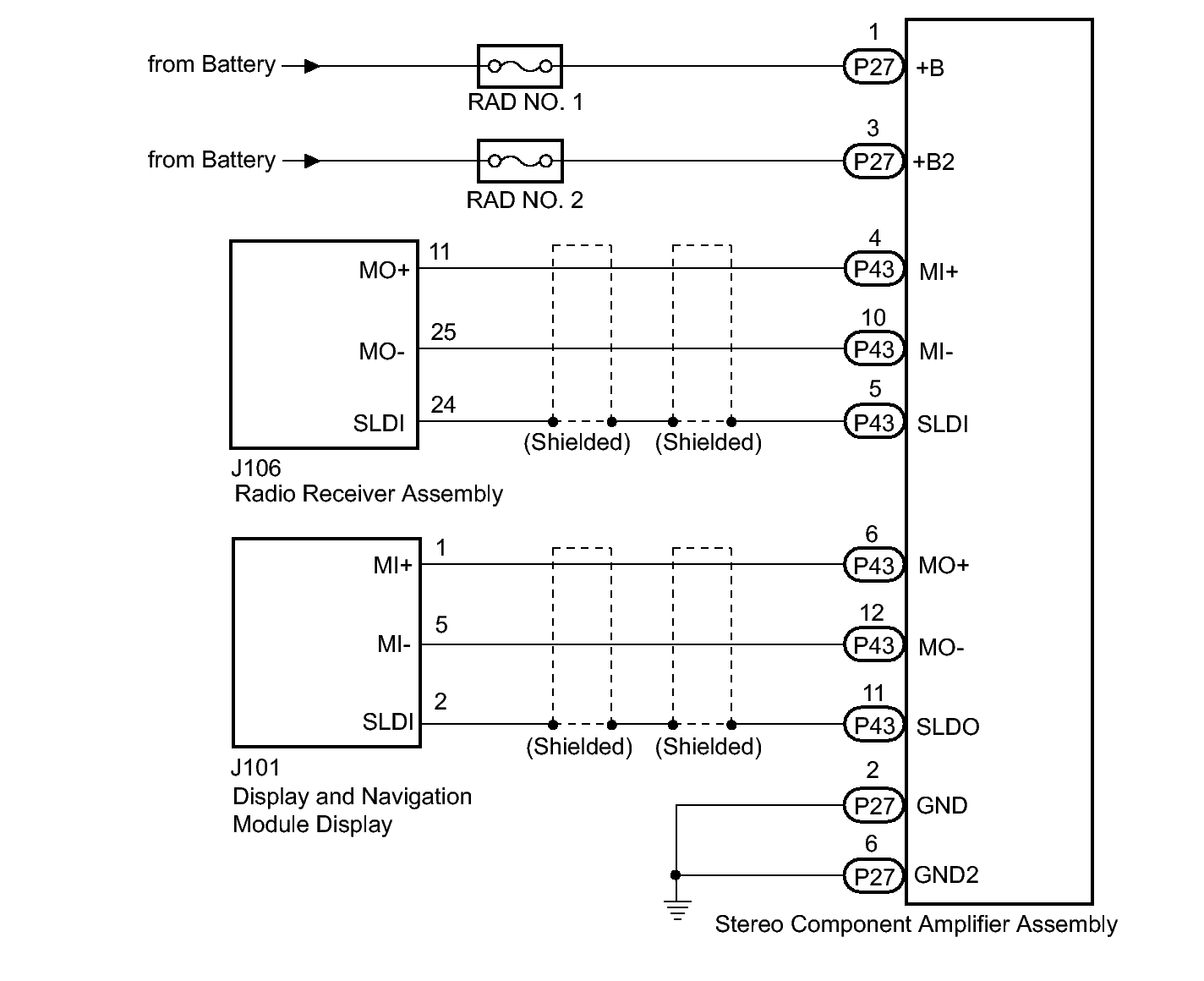

Fig 1: View Of Stereo Component Amplifier Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
