DTC B156B: Multi-Media Interface ECU Disconnected; DTC B156E: No Response from Multi-media Interface ECU: Wiring Diagram

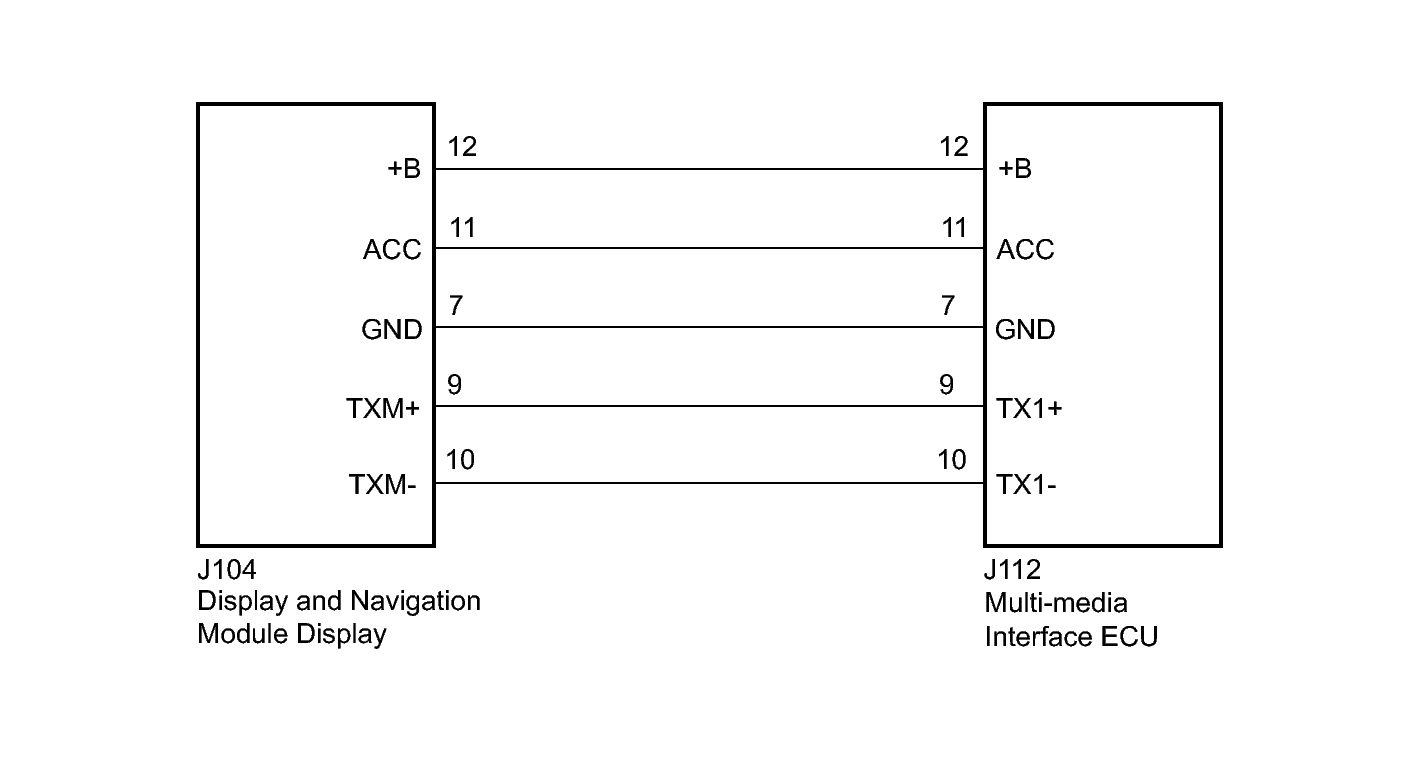

Fig 1: View Of Multi-Media Interface ECU Wiring Diagram
GTY274819Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
