Home >> Lexus >> 2010 >> IS 250 AWD >> Repair and Diagnosis (Single Page) >> Accessories & Equipment >> Infotainment >> Navigation (For DVD) (Diagnostic Codes & Symptom Tests) >> NAVIGATION SYSTEM (for DVD) >> DTC B156A: Gateway ECU Disconnected; DTC B1590: No Response from Gateway ECU >> Wiring Diagram

DTC B156A: Gateway ECU Disconnected; DTC B1590: No Response from Gateway ECU: Wiring Diagram

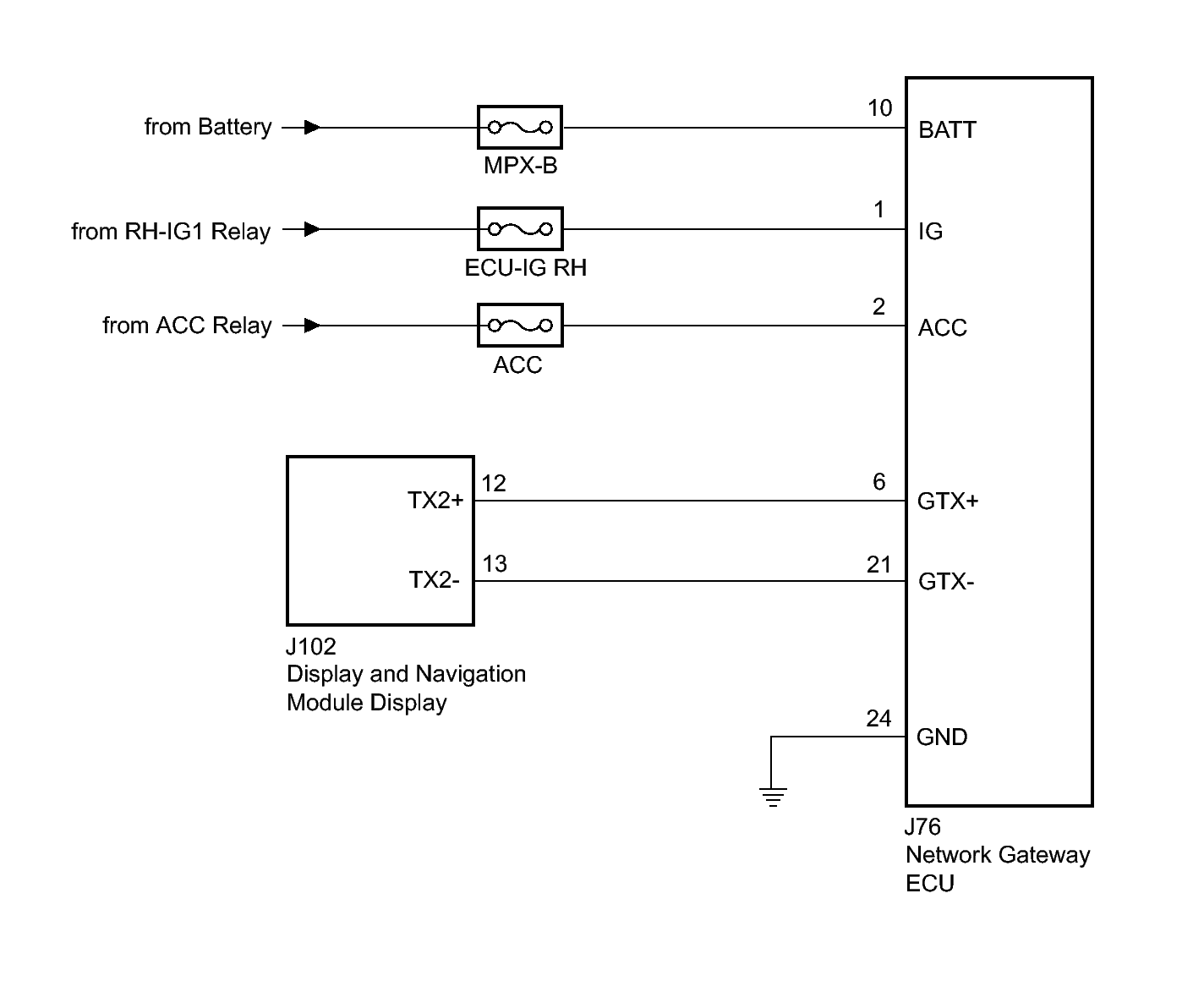

Fig 1: View Of Gateway ECU Power Source Circuit Wiring Diagram
GTY280724Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
