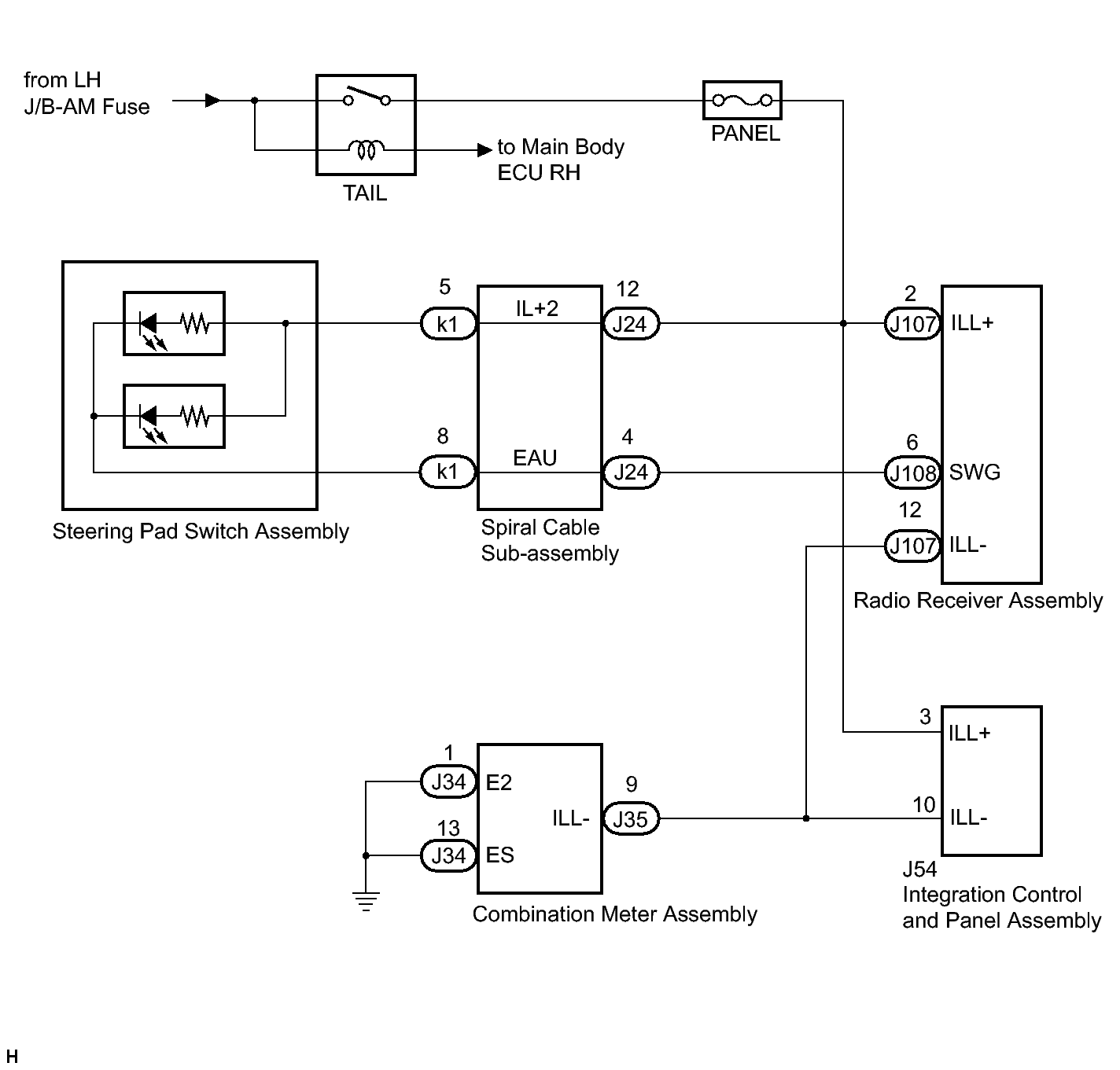

Home >> Lexus >> 2010 >> IS 250 AWD >> Repair and Diagnosis (Single Page) >> Accessories & Equipment >> Infotainment >> Audio / Visual (W/O Navigation) (Diagnostic Codes & Symptom Tests) >> AUDIO AND VISUAL SYSTEM (w/o Navigation System) >> Illumination Circuit >> Wiring Diagram
