RADIO ANTENNA CORD (w/ Satellite Radio): Components: Illustration

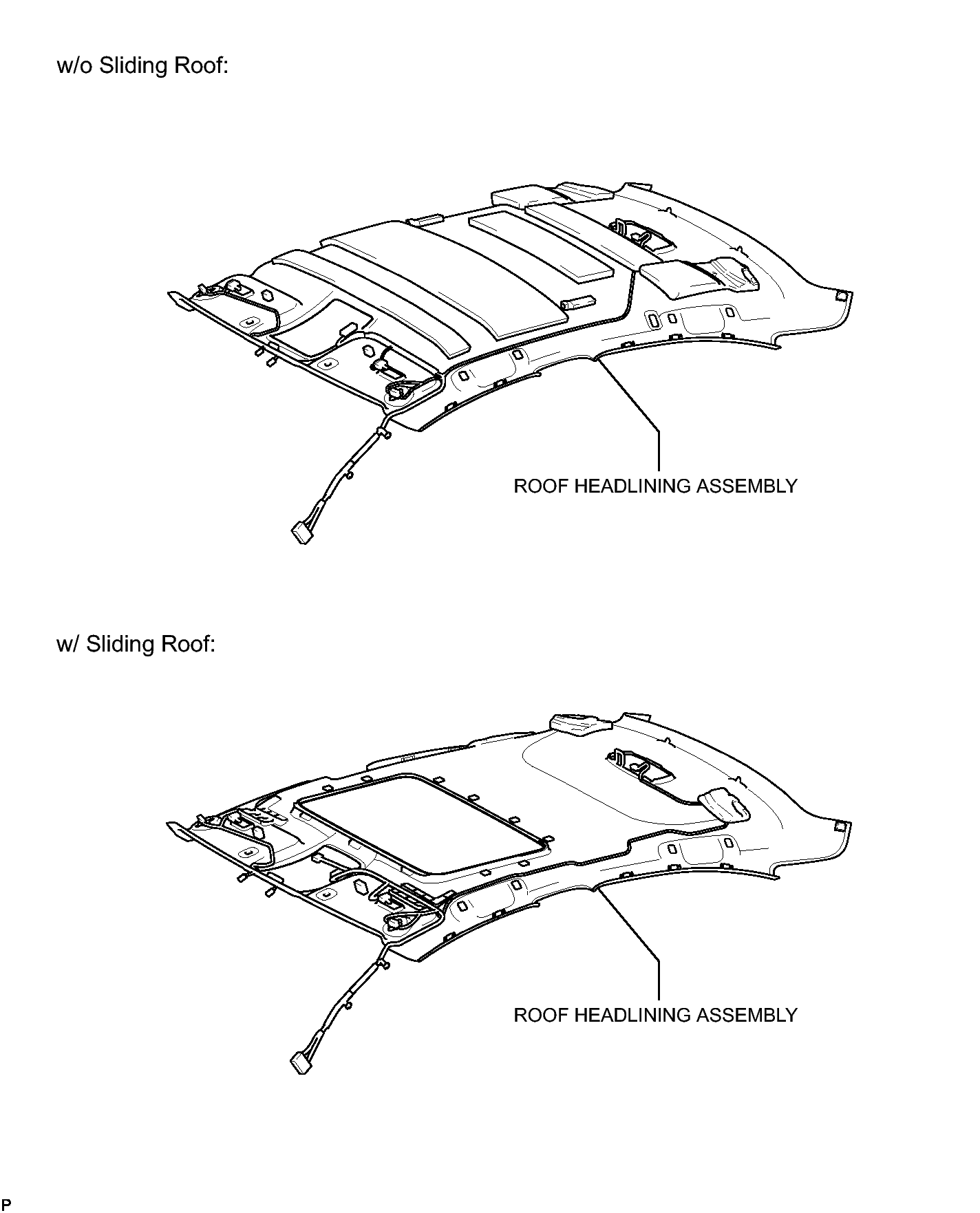

Fig 1: Identifying Radio Antenna Cord (W/ Satellite Radio) Replacement Components With Torque Specifications (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

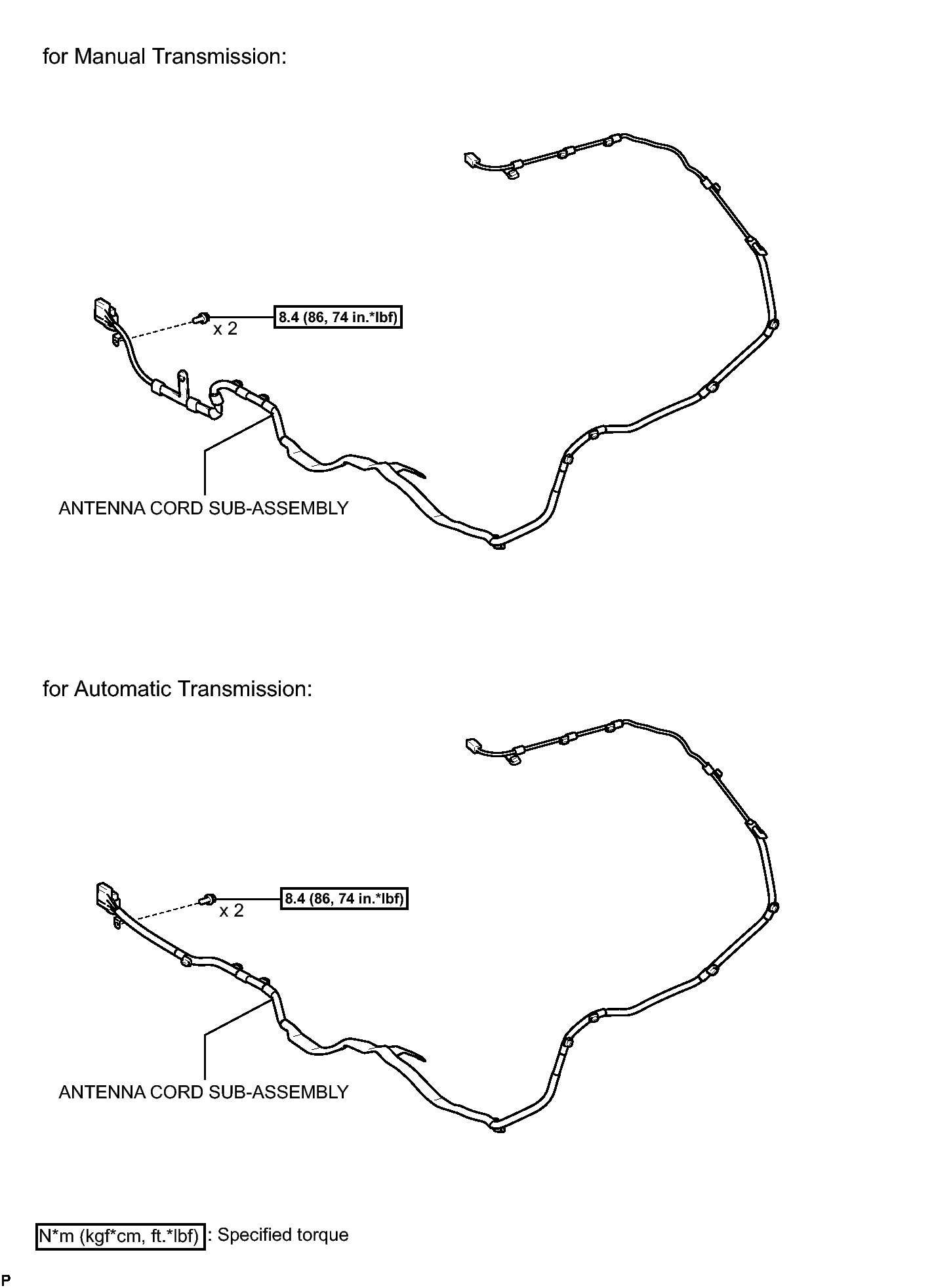

Fig 1: Identifying Radio Antenna Cord (W/ Satellite Radio) Replacement Components With Torque Specifications (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

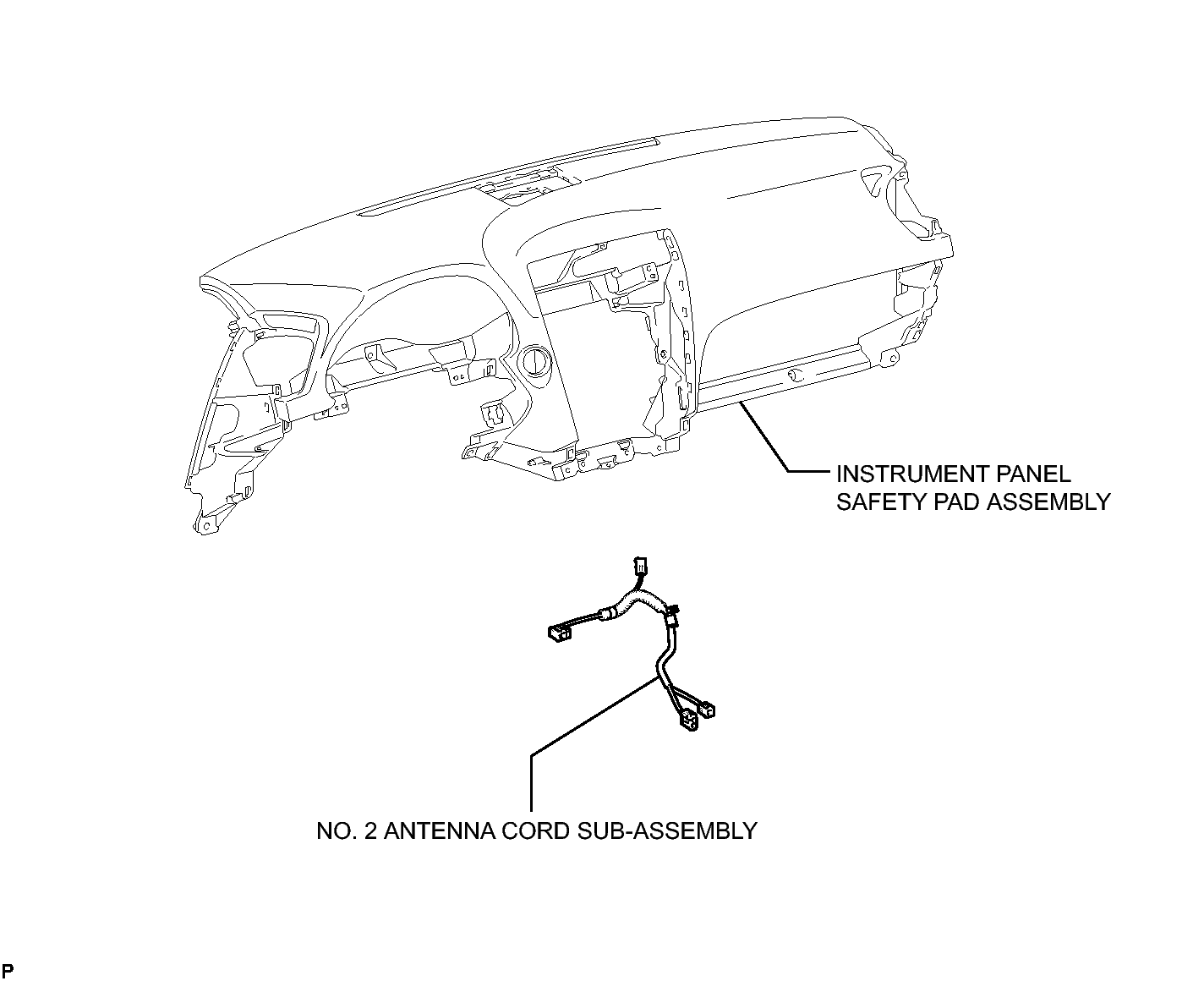

Fig 1: Identifying Radio Antenna Cord (W/ Satellite Radio) Replacement Components With Torque Specifications (3 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
