Parts Location: Illustration

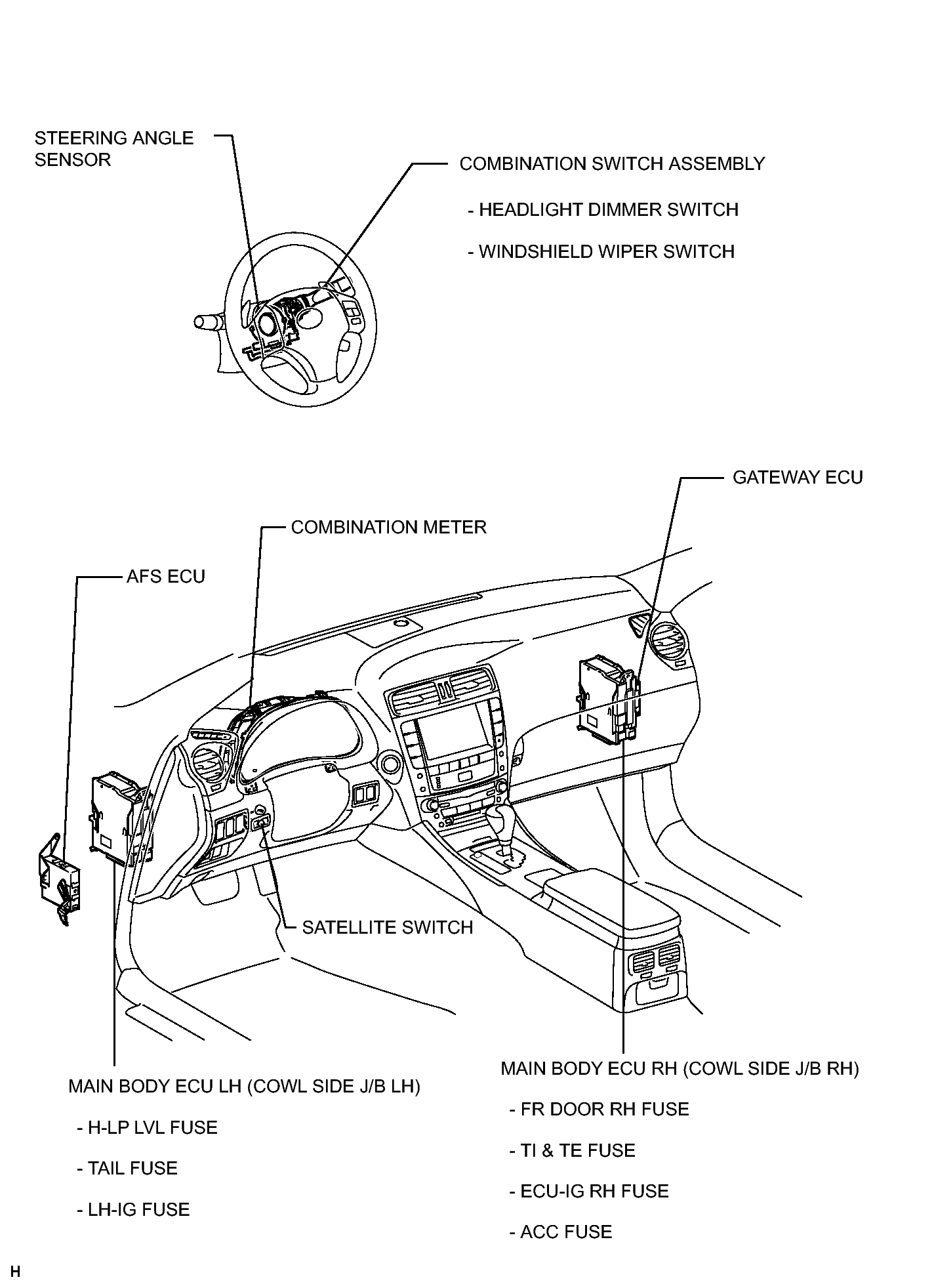

Fig 1: Identifying Lighting System Replacement Components (1 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

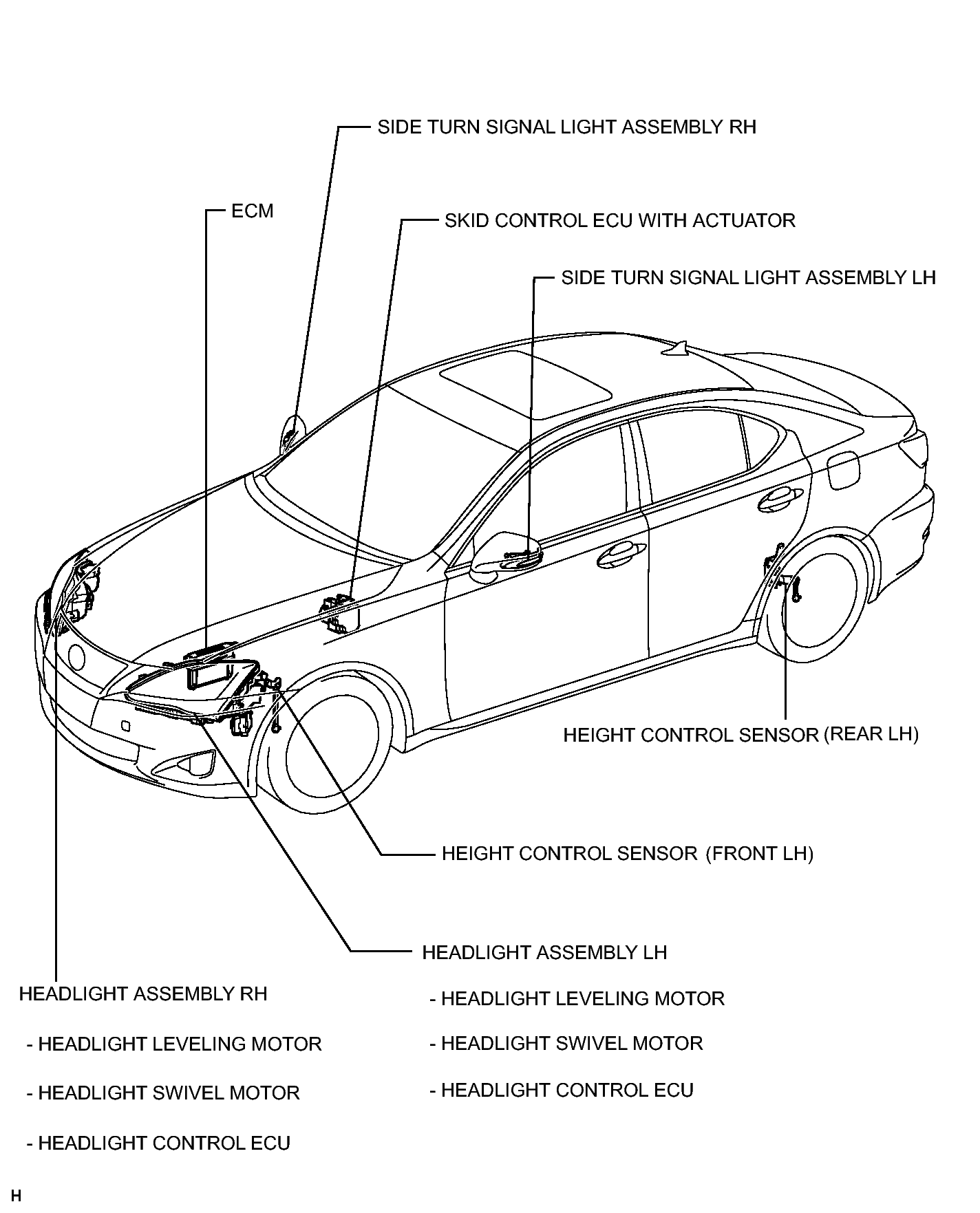

Fig 1: Identifying Lighting System Replacement Components (2 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

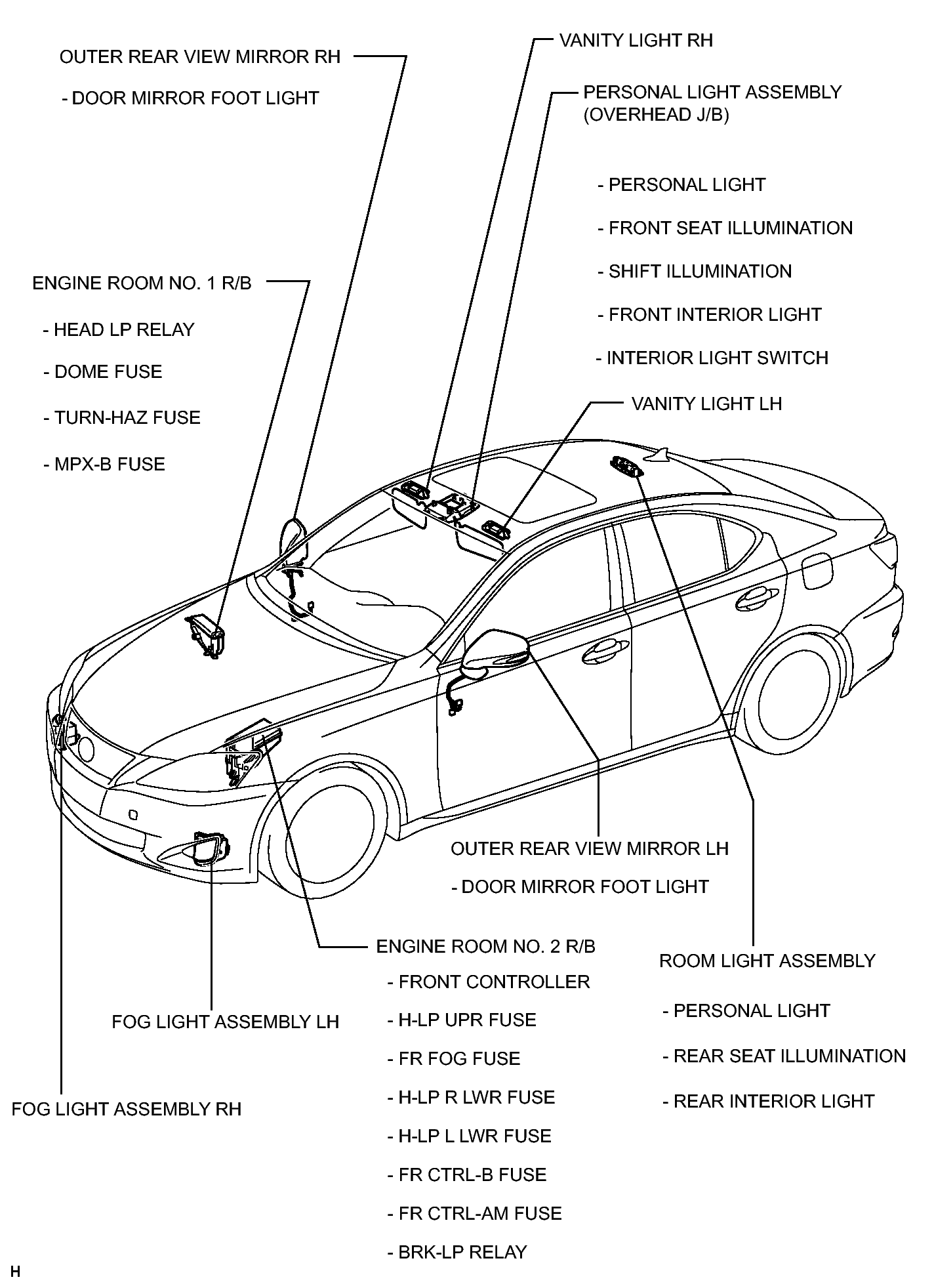

Fig 1: Identifying Lighting System Replacement Components (3 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 1: Identifying Lighting System Replacement Components (4 Of 6)

Fig 1: Identifying Lighting System Replacement Components (5 Of 6)

Fig 1: Identifying Lighting System Replacement Components (6 Of 6)
