Headlight Solenoid Circuit: Wiring Diagram

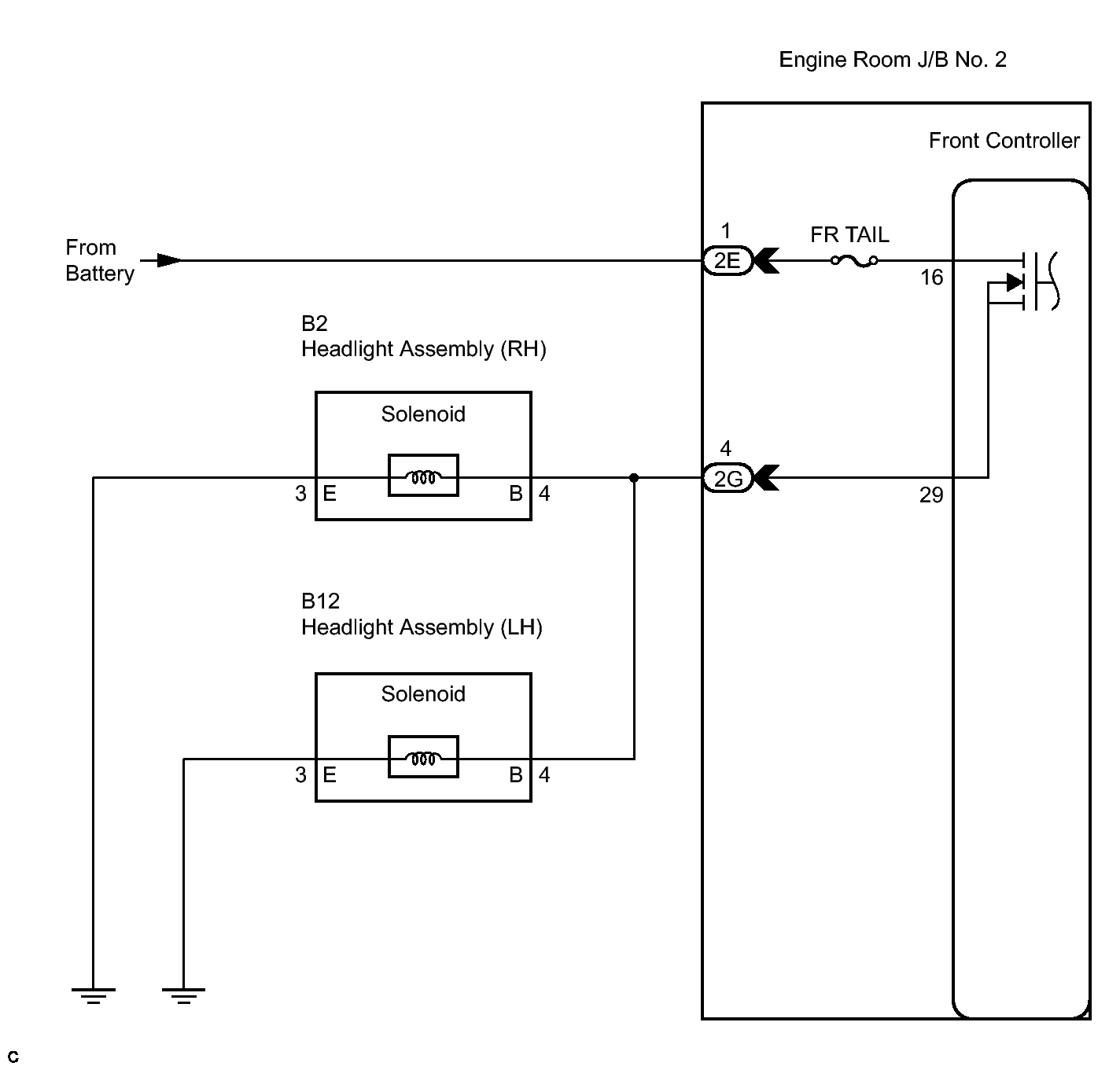

Fig 1: View Of Headlight Solenoid Circuit Wiring Diagram

GTY132720

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
