Headlight (HI-BEAM) Circuit: Wiring Diagram

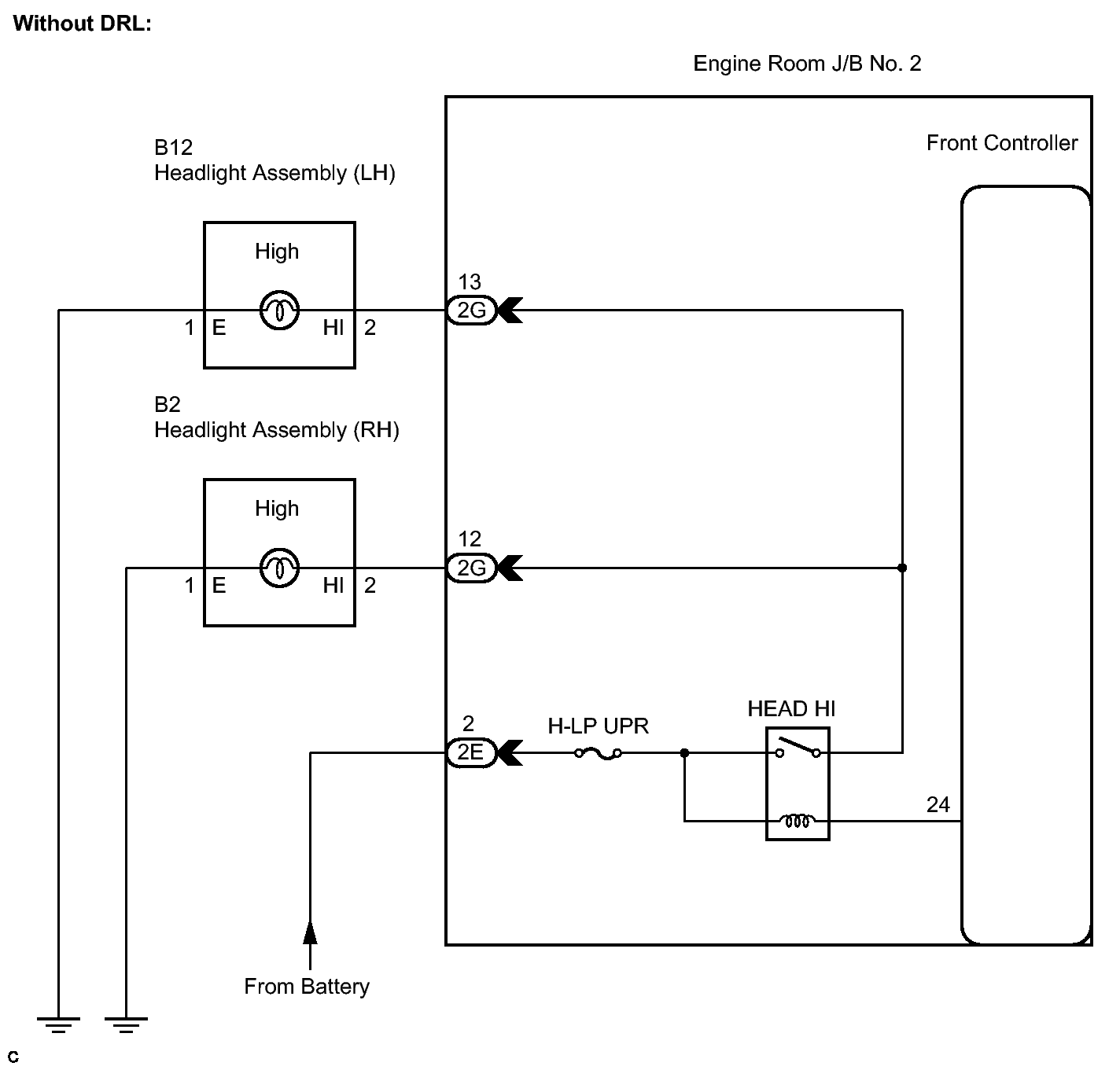

Fig 1: View Of Headlight (Hi-Beam) Circuit Wiring Diagram (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

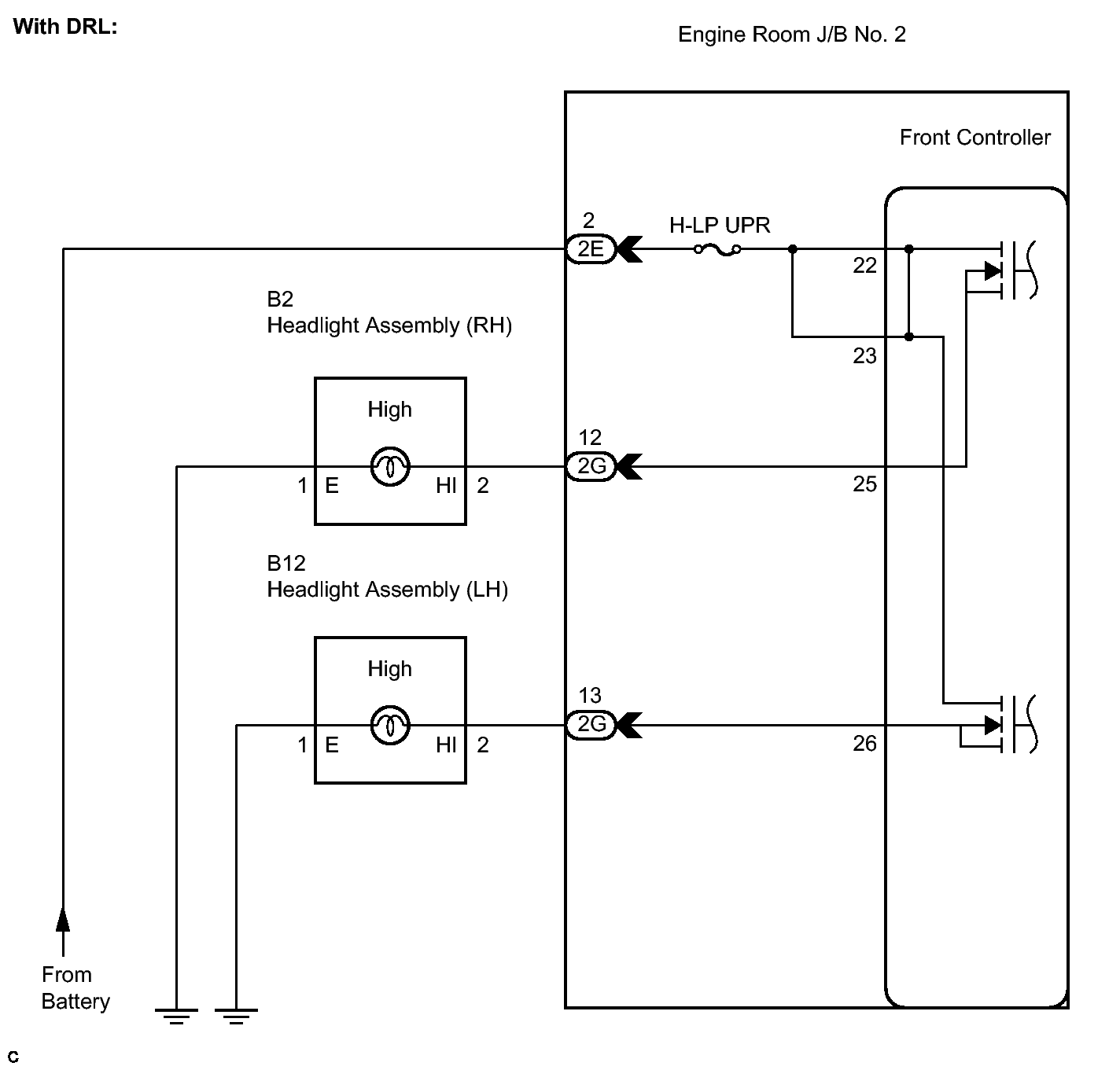

Fig 2: View Of Headlight (Hi-Beam) Circuit Wiring Diagram (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
