DTC B2417: Headlight Beam Level Control Motor LH Malfunction; DTC B2418: Headlight Beam Level Control Motor RH Malfunction: Wiring Diagram

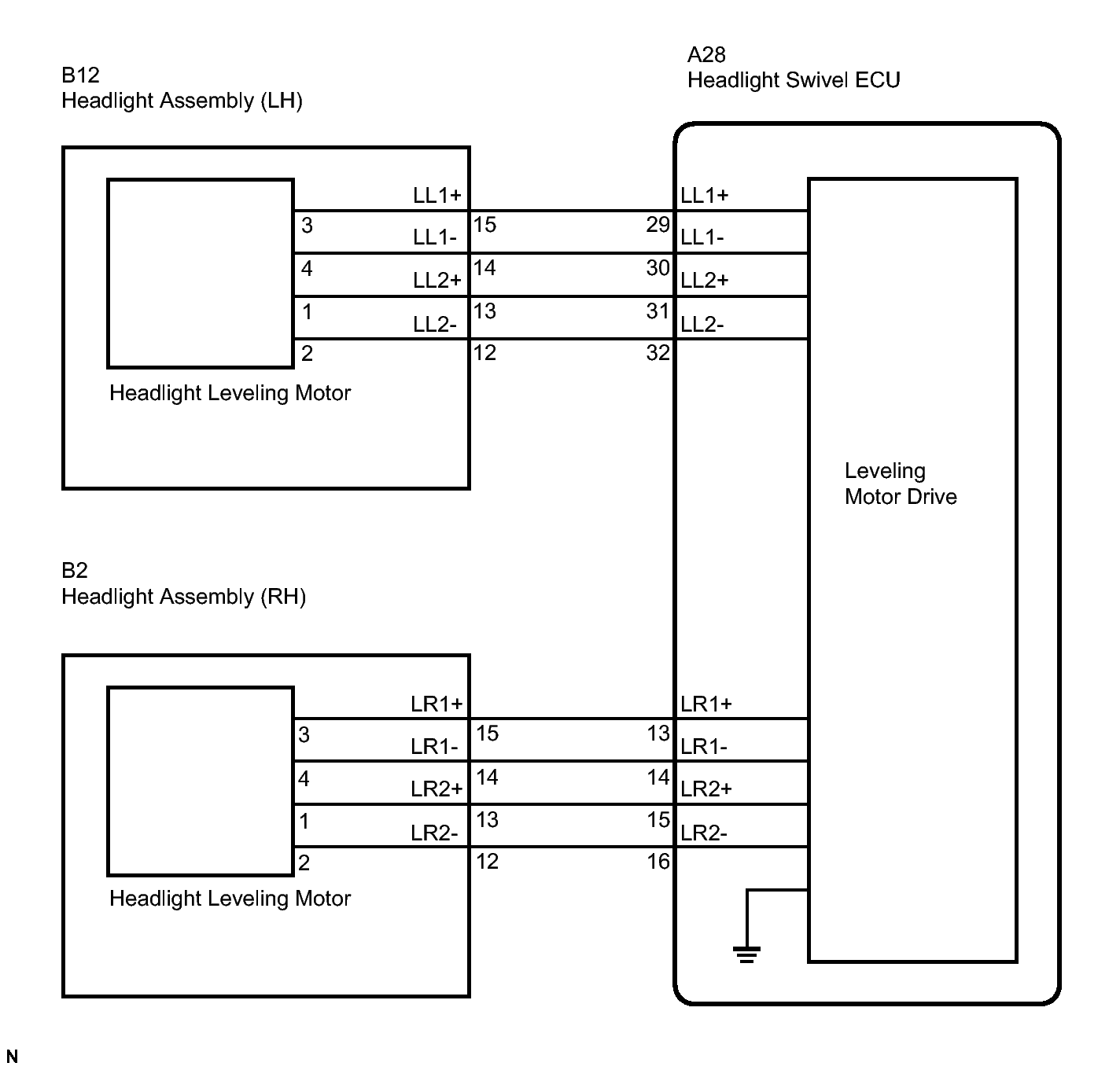

Fig 1: View Of Headlight Beam Level Control Motor Wiring Diagram
GTY123438Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
