Home >> Lexus >> 2010 >> IS 250 AWD >> Repair and Diagnosis (Single Page) >> Accessories & Equipment >> Exterior Lights >> Lighting (Diagnostic Codes & Circuit Tests) >> Lighting System >> DTC B2412: Headlight Swivel Motor LH Malfunction; DTC B2413: Headlight Swivel Motor RH Malfunction >> Wiring Diagram

DTC B2412: Headlight Swivel Motor LH Malfunction; DTC B2413: Headlight Swivel Motor RH Malfunction: Wiring Diagram

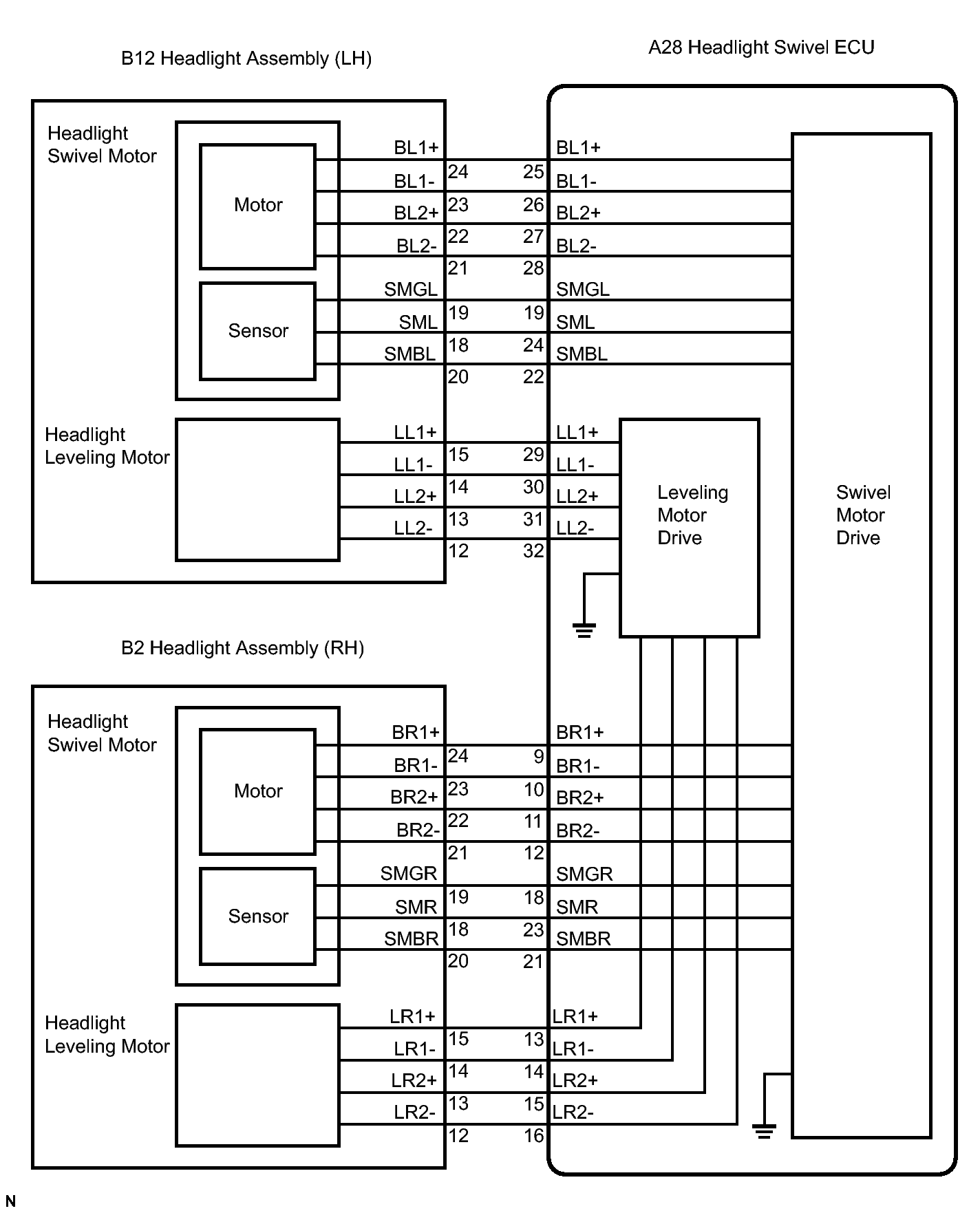

Fig 1: View Of Headlight Swivel Motor Wiring Diagram
GTY151502Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
