DTC P3108-535: A/C Amplifier Communication Circuit Malfunction; DTC P3108-536: A/C Amplifier Communication Circuit Malfunction; DTC P3108-538: A/C Amplifier Communication Circuit Malfunction: Wiring Diagram

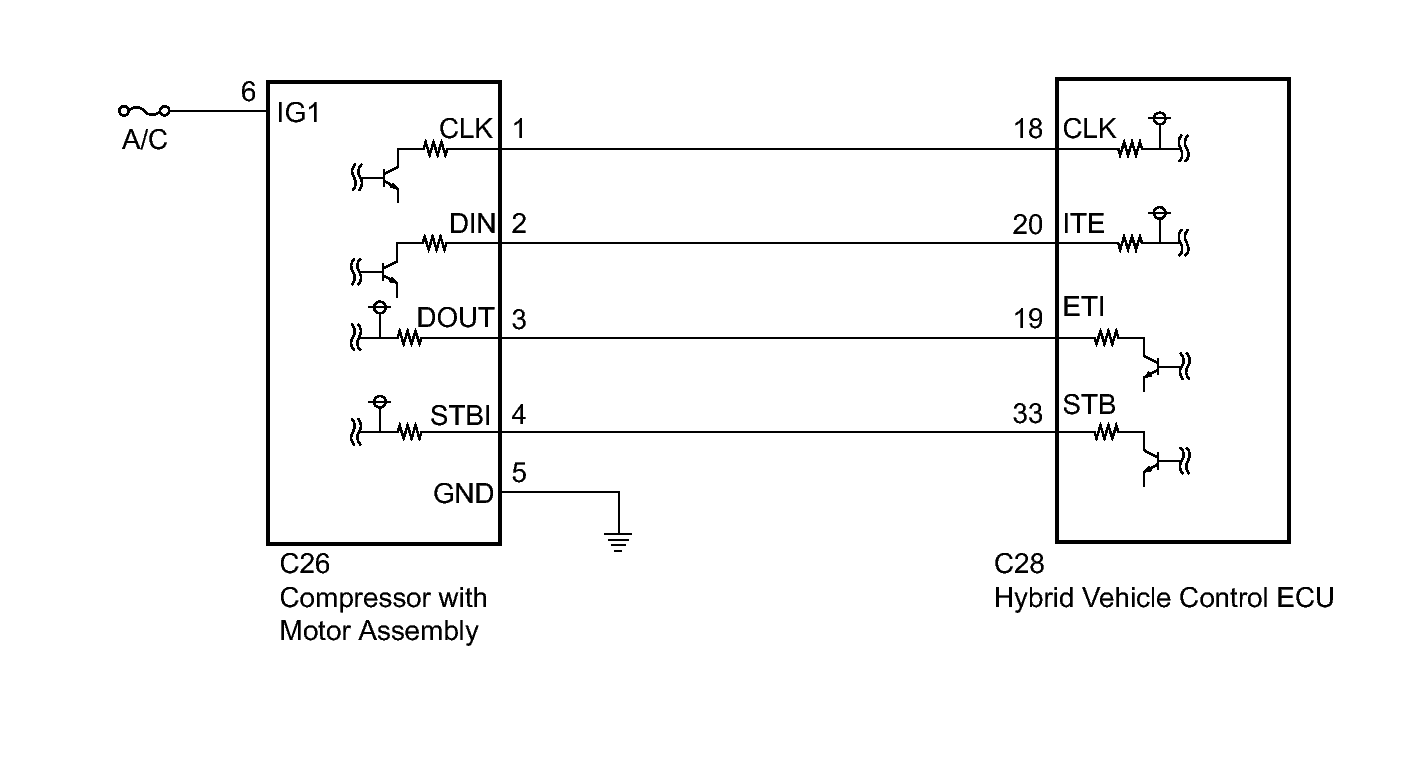

Fig 1: C26 Compressor With Motor Assembly - Wiring Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
