DTC P2601-777: Oil Pump Control Circuit Range / Performance: Wiring Diagram

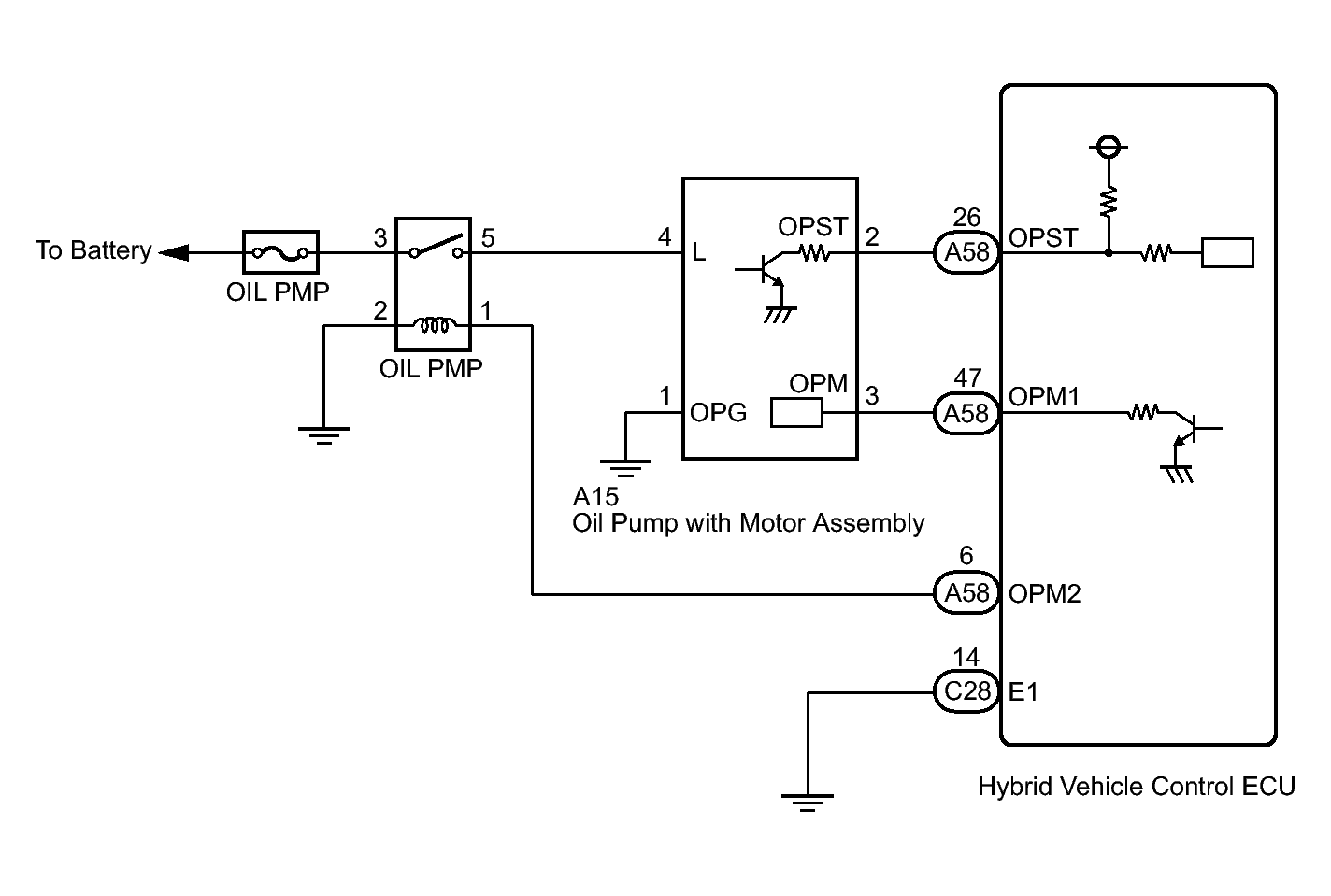

Fig 1: Hybrid Vehicle Control ECU - Wiring Diagram

GTY281186

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
