DTC P2532-772: Ignition Switch Run Position Circuit High: Wiring Diagram

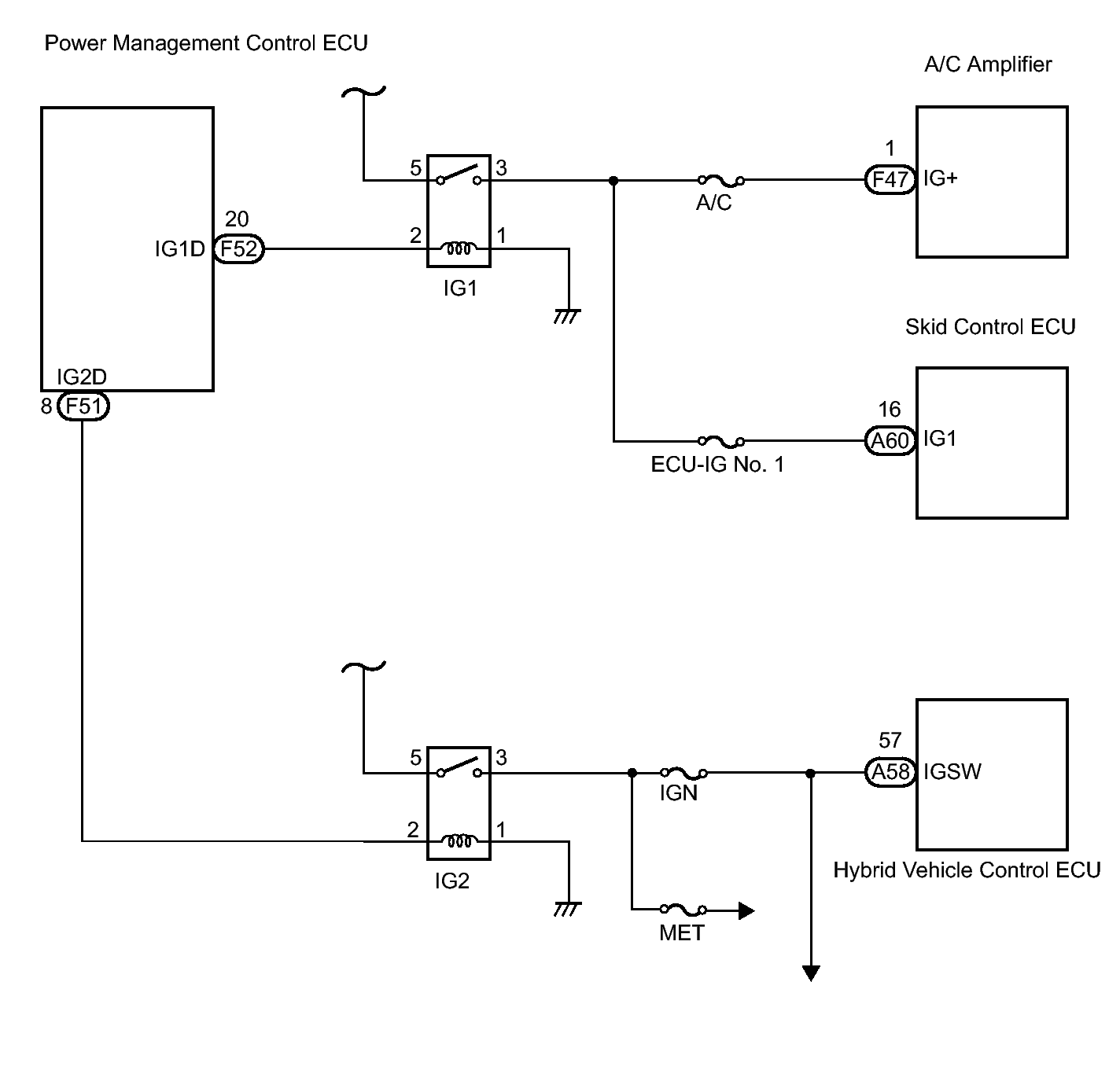

Fig 1: Power Management Control ECU - Wiring Diagram

GTY259070

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
