DTC P0AE6-225: Hybrid Battery Precharge Contactor Control Circuit Low: Wiring Diagram

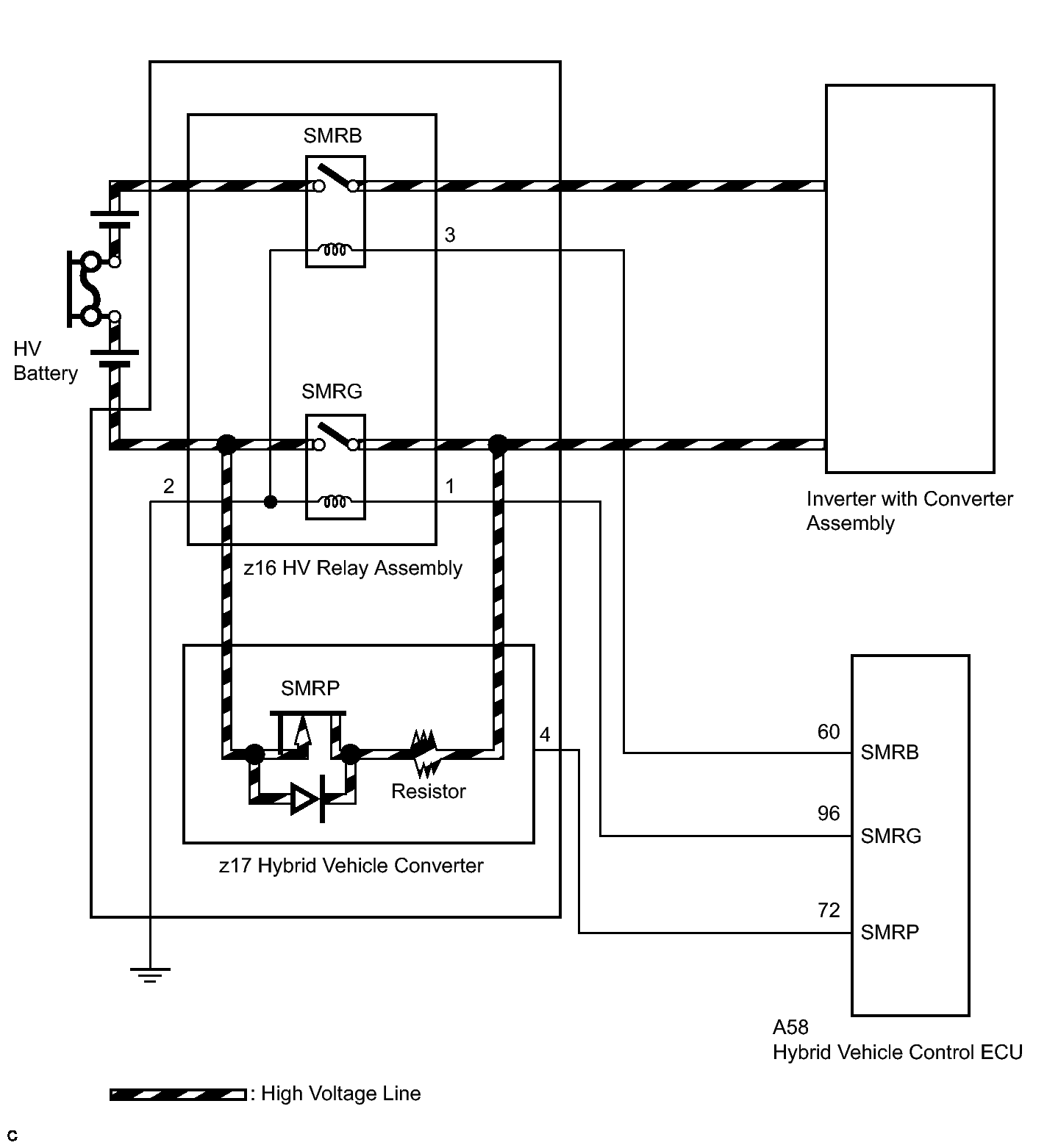

Fig 1: HV Vehicle Converter - Wiring Diagram (1 Of 2)
GTY270214Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

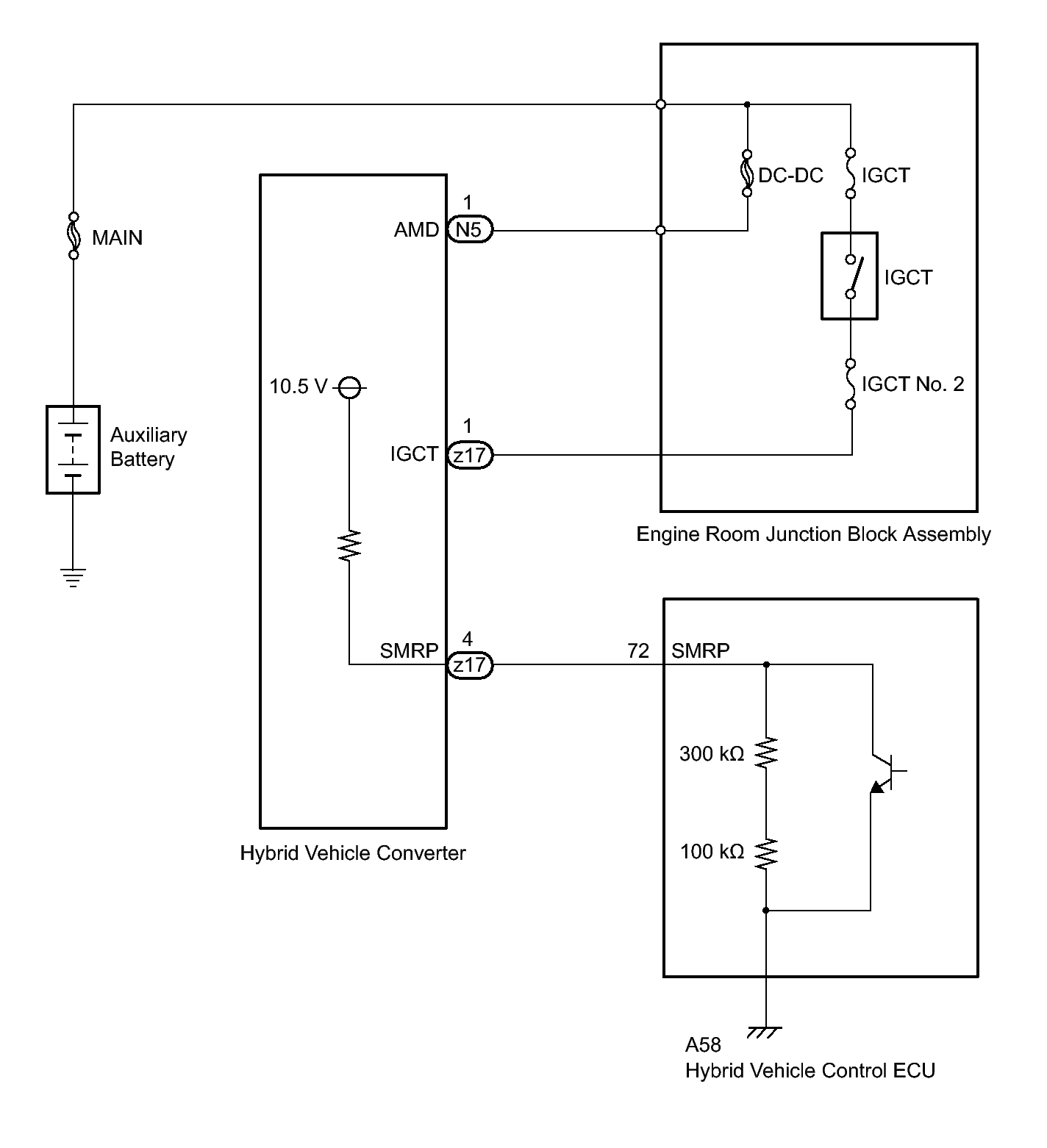

Fig 2: HV Vehicle Converter - Wiring Diagram (2 Of 2)
GTY285024Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
