DTC P0A38-257: Generator Temperature Sensor Circuit Low; DTC P0A39-259: Generator Temperature Sensor Circuit High: Wiring Diagram

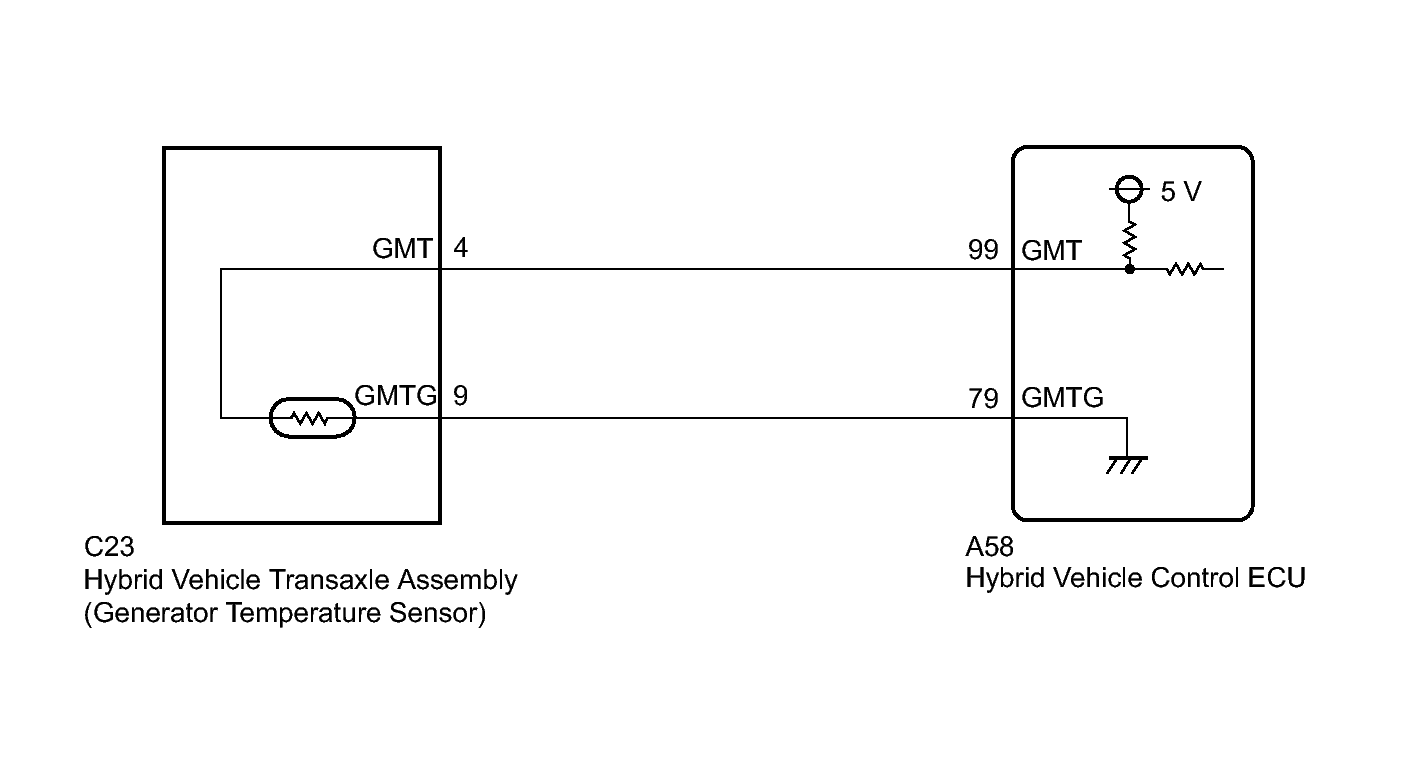

Fig 1: C23 Hybrid Transaxle Assembly (Generator Temperature Sensor) - Wiring Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
