DTC P0A1F-150: Battery Energy Control Module: Wiring Diagram

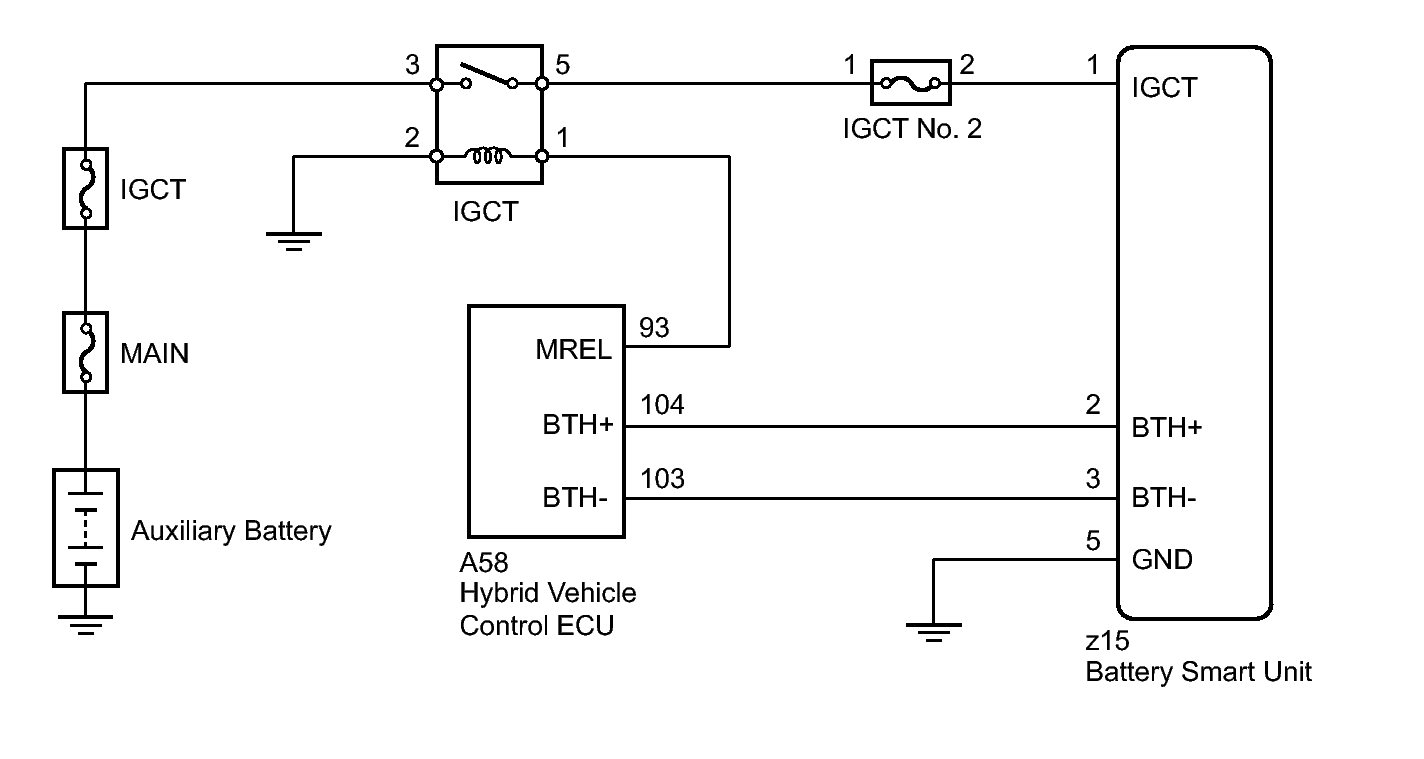

Fig 1: z15 Battery Smart Unit - Wiring Diagram

GTY269048

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
