DTC P0A09-591: DC / DC Converter Status Circuit Low Input: Wiring Diagram

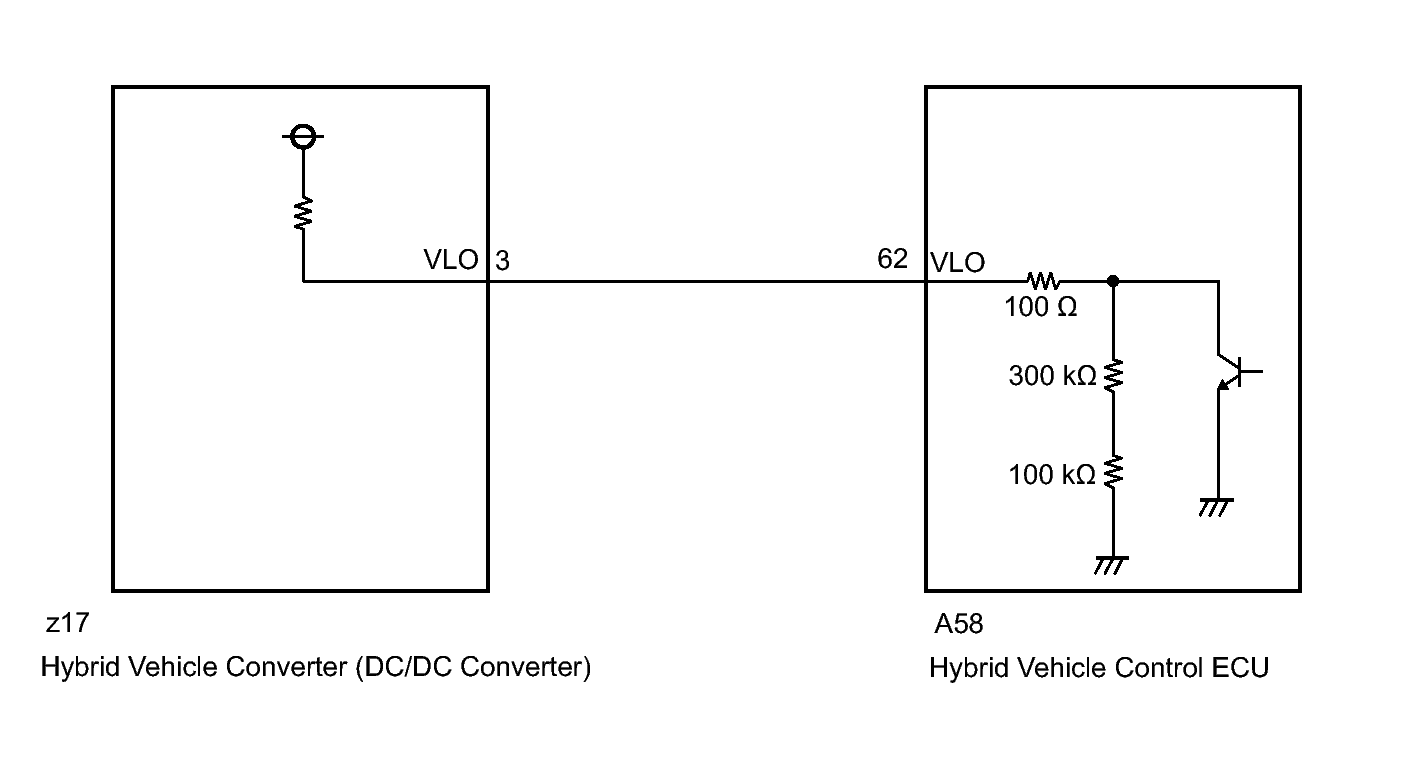

Fig 1: z17 Hybrid Vehicle Converter (DC/DC Converter) - Wiring Diagram

GTY266639

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
