DTC P0A08-101: DC / DC Converter Status Circuit: Description
The cooling fan of the HV battery and cooling fan in the hybrid vehicle converter are used to cool the hybrid vehicle converter (DC/DC converter).

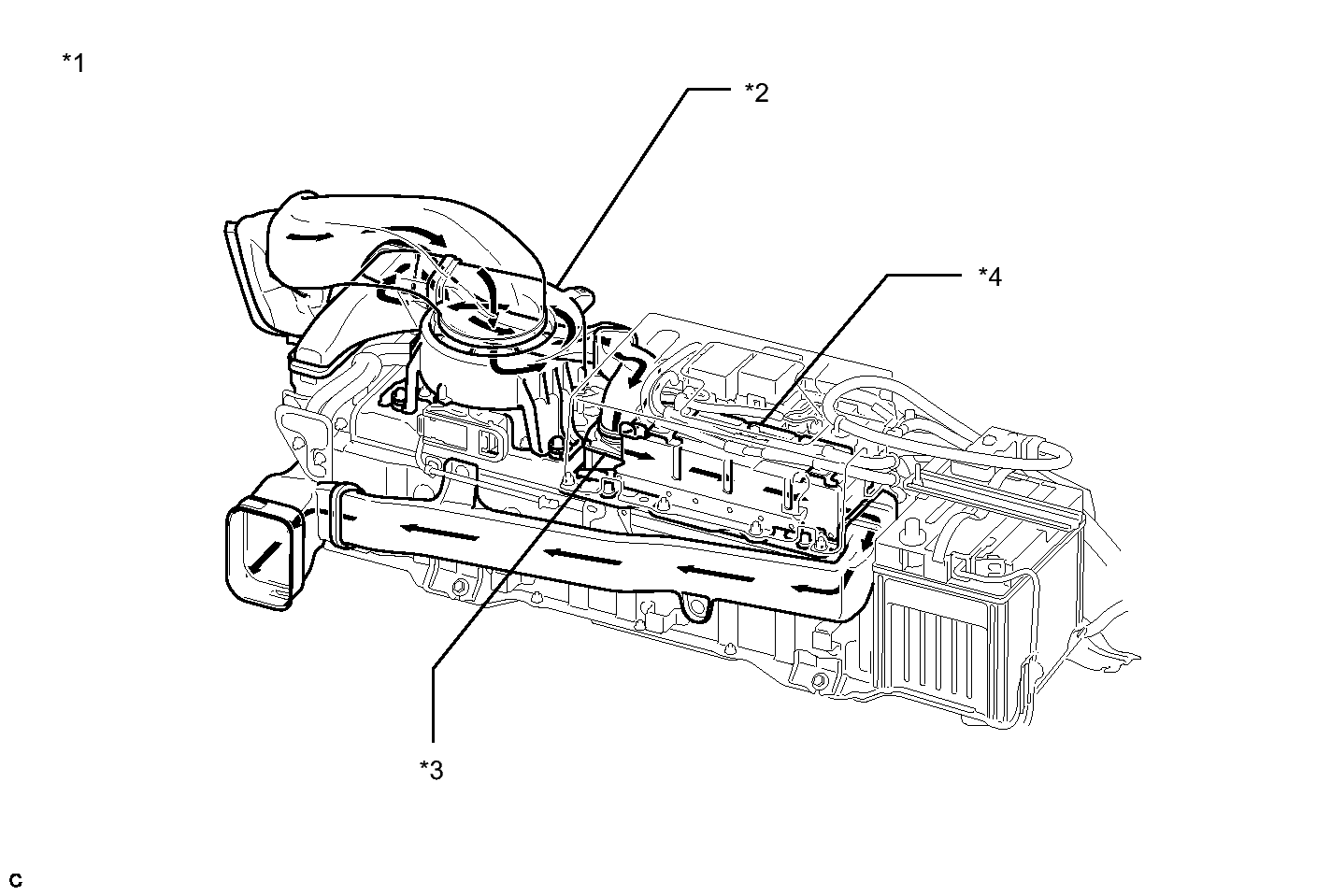

Fig 1: Identifying HV Battery Assembly, Battery Cooling Blower, Battery Cooling Blower Assembly & Hybrid Vehicle Converter (DC/DC Converter)
TEXT IN ILLUSTRATION
| *1 | HV Battery Assembly | *2 | Battery Cooling Blower Assembly |
| *3 | Cooling Blower (for Hybrid Vehicle Converter) | *4 | Hybrid Vehicle Converter (DC/DC Converter) |
| DTC No. | INF Code | DTC Detection Condition | Trouble Area |
|---|---|---|---|
| P0A08 | 101 | Overheating of the hybrid vehicle converter (DC/DC converter) |
|
