DTC P0516-769: Battery Temperature Sensor Circuit Low; DTC P0517-770: Battery Temperature Sensor Circuit High: Wiring Diagram

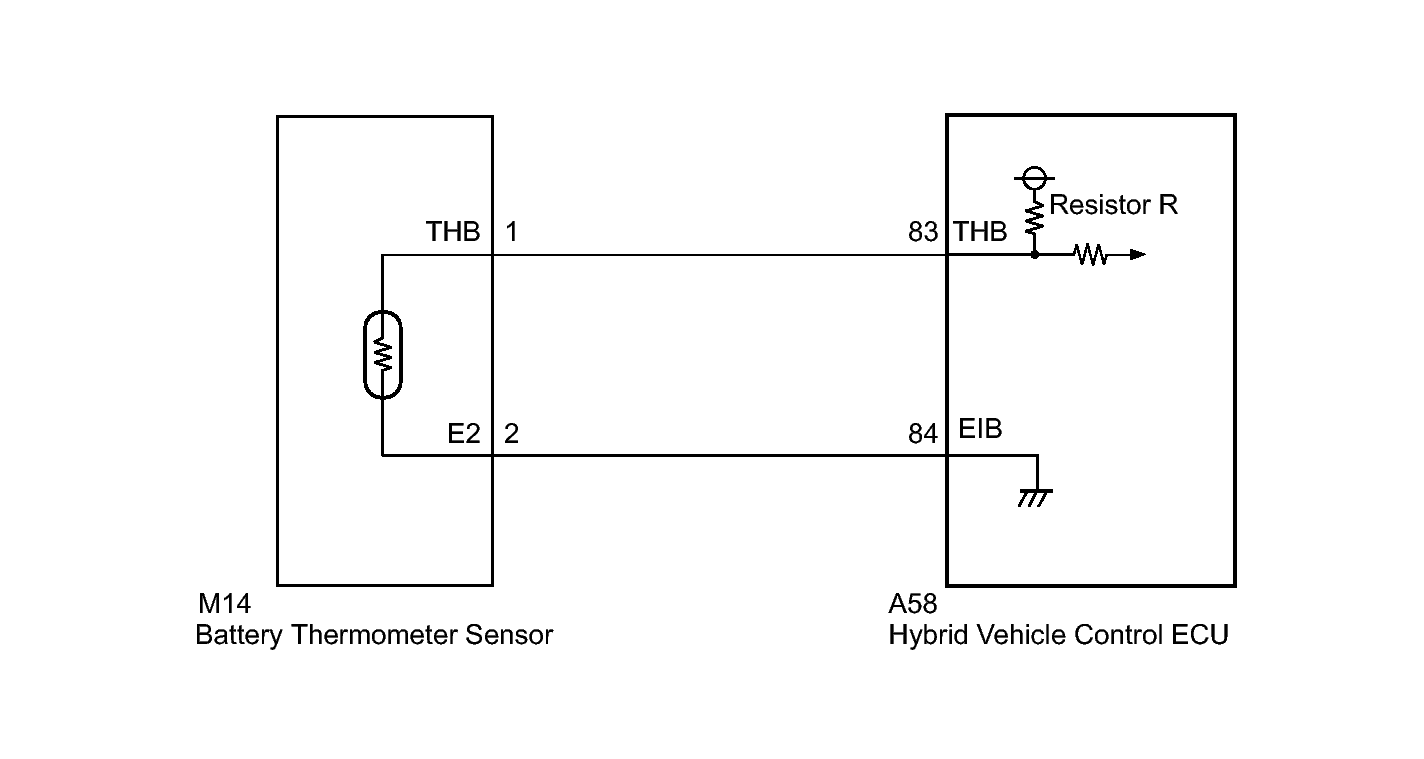

Fig 1: M14 Battery Thermometer Sensor - Wiring Diagram
GTY265644Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
