Brake Pedal: Components: Illustration

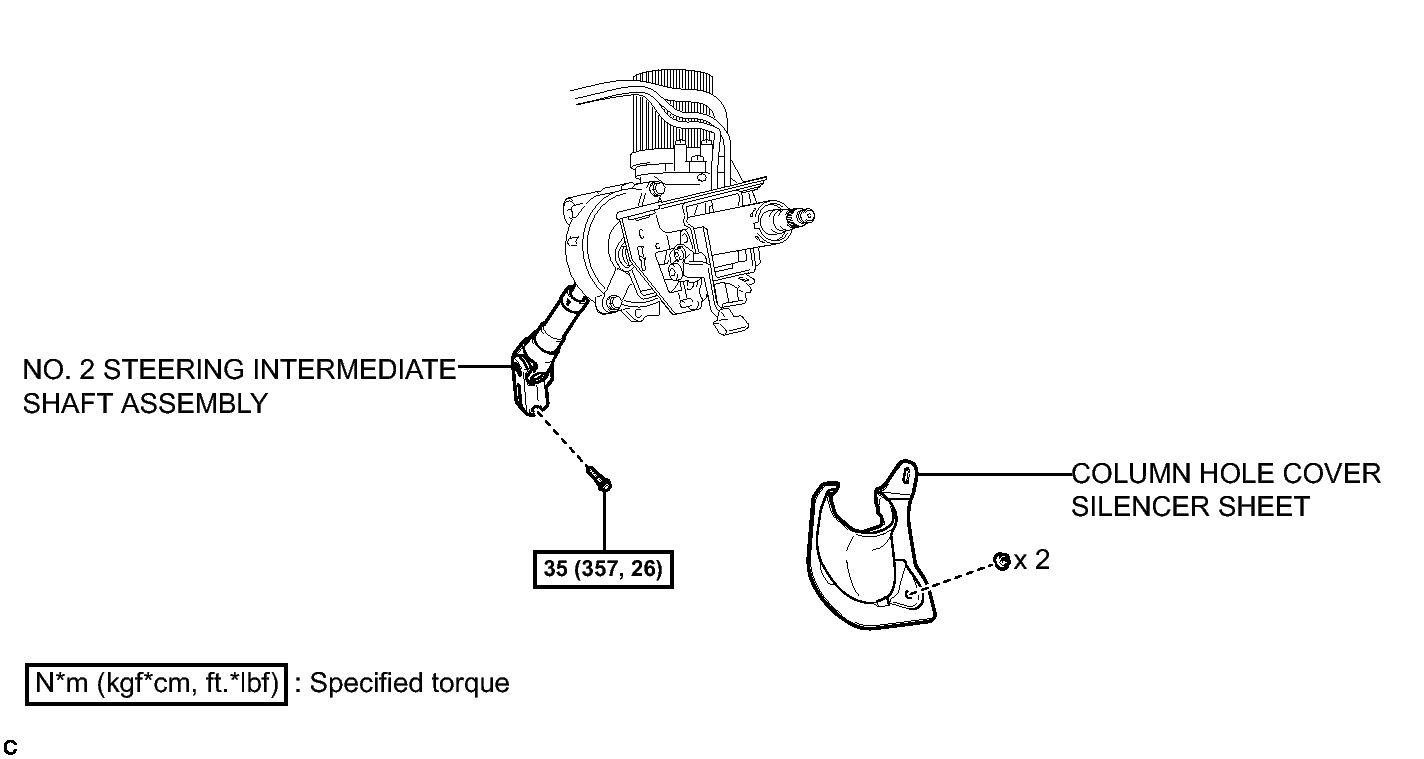

Fig 1: Identifying Brake Pedal Replacement Components With Torque Specifications (1 Of 3)
GTY286619Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

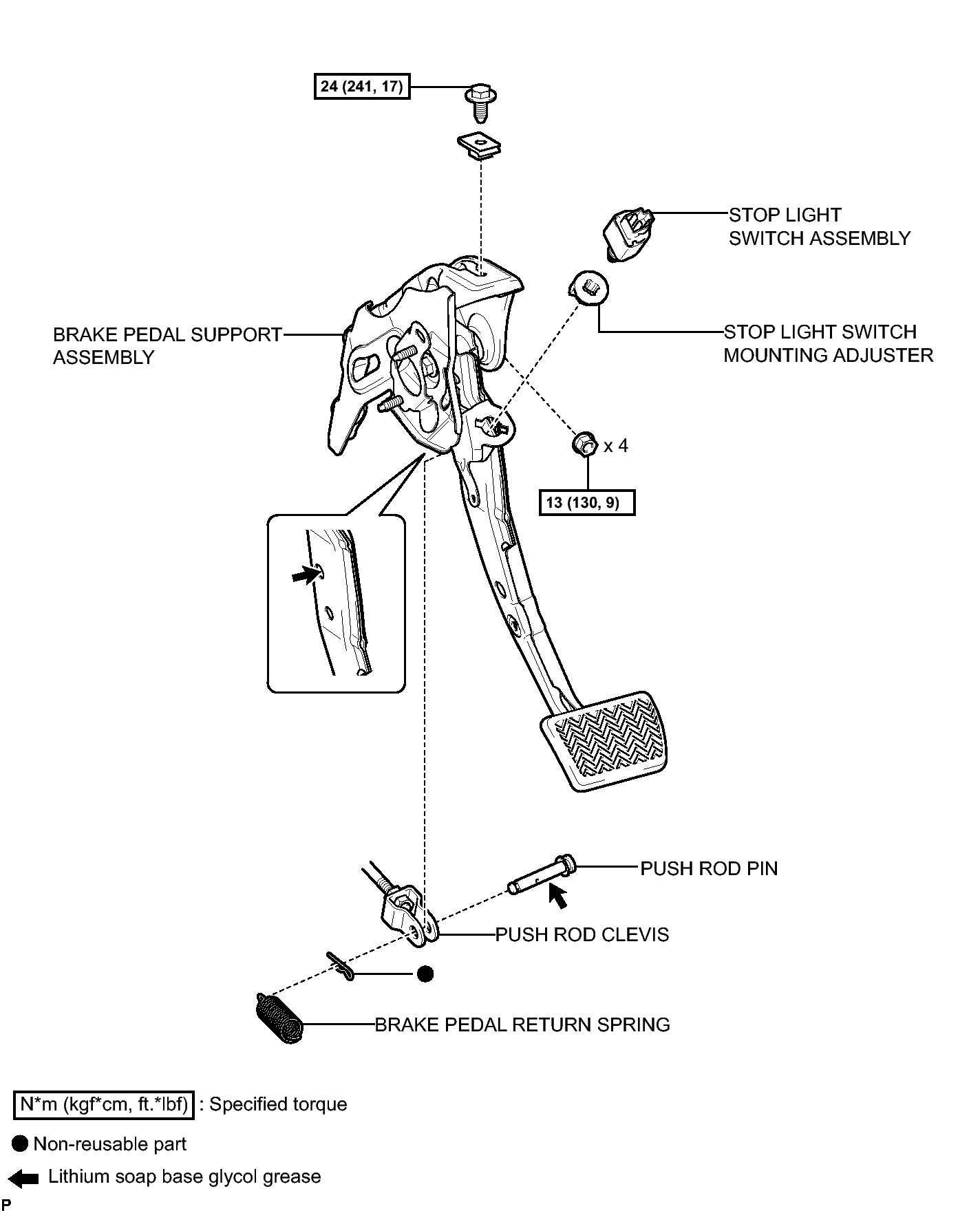

Fig 1: Identifying Brake Pedal Replacement Components With Torque Specifications (2 Of 3)
GTY275913Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

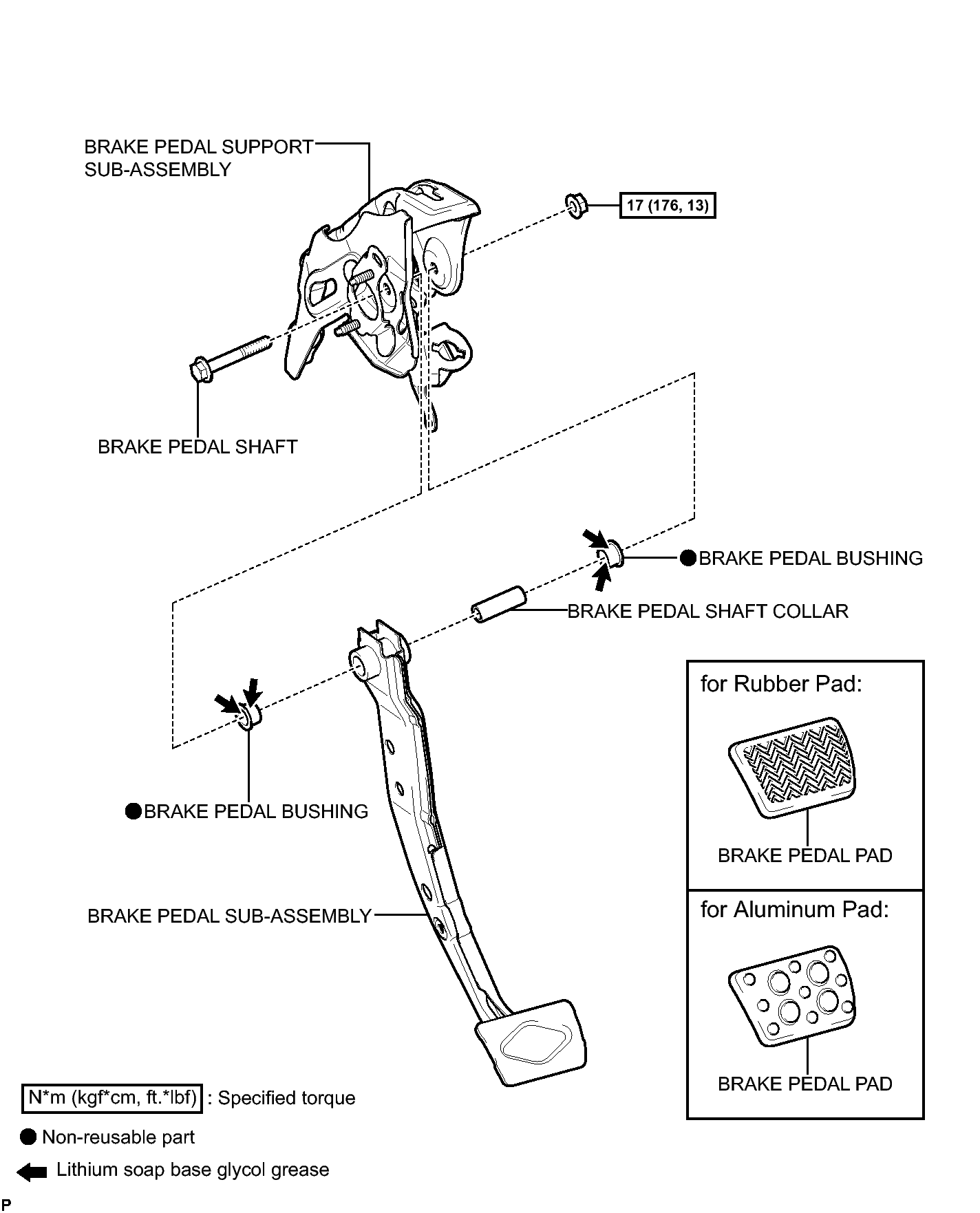

Fig 1: Identifying Brake Pedal Replacement Components With Torque Specifications (3 Of 3)
GTY268199Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
