Brake Booster: Components: Illustration

Fig 1: Identifying Brake Booster Replacement Components (1 Of 6)
GTY273351Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

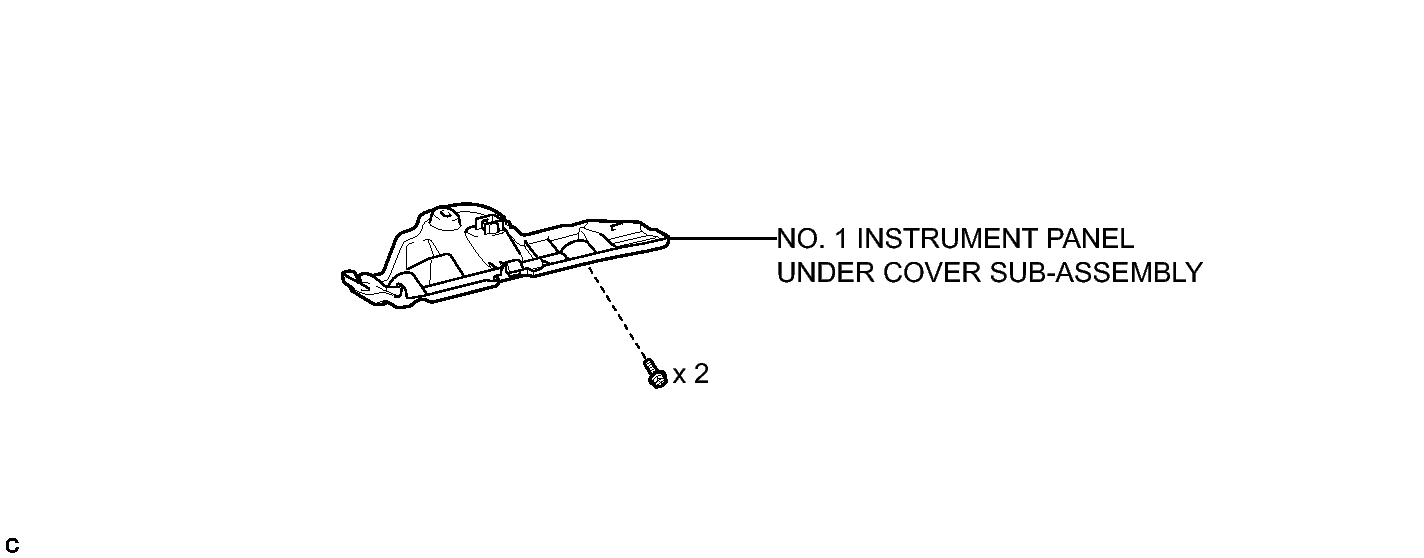

Fig 1: Identifying Brake Booster Replacement Components (2 Of 6)
GTY282005Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

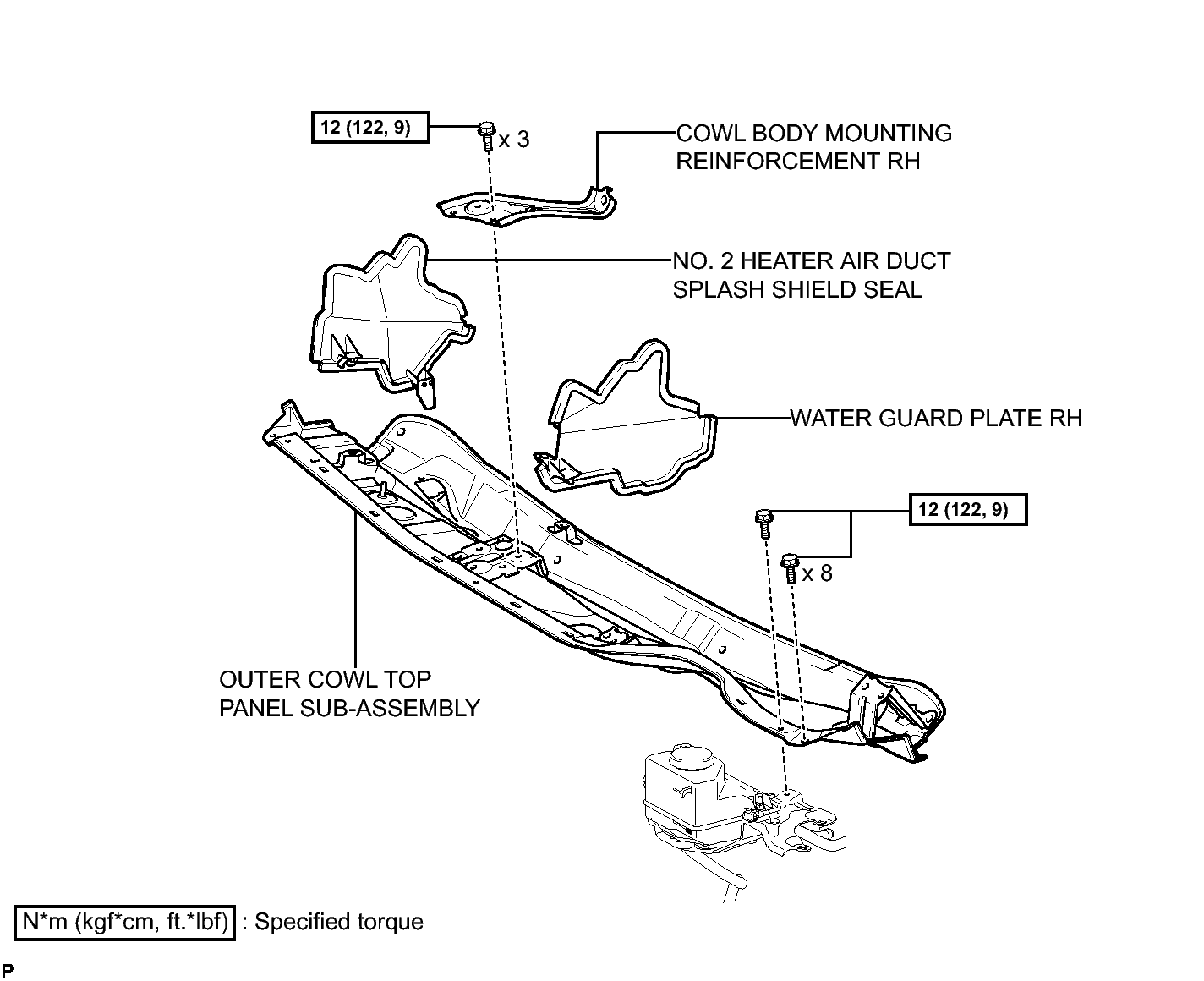

Fig 1: Identifying Brake Booster Replacement Components With Torque Specifications (3 Of 6)
GTY265437Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

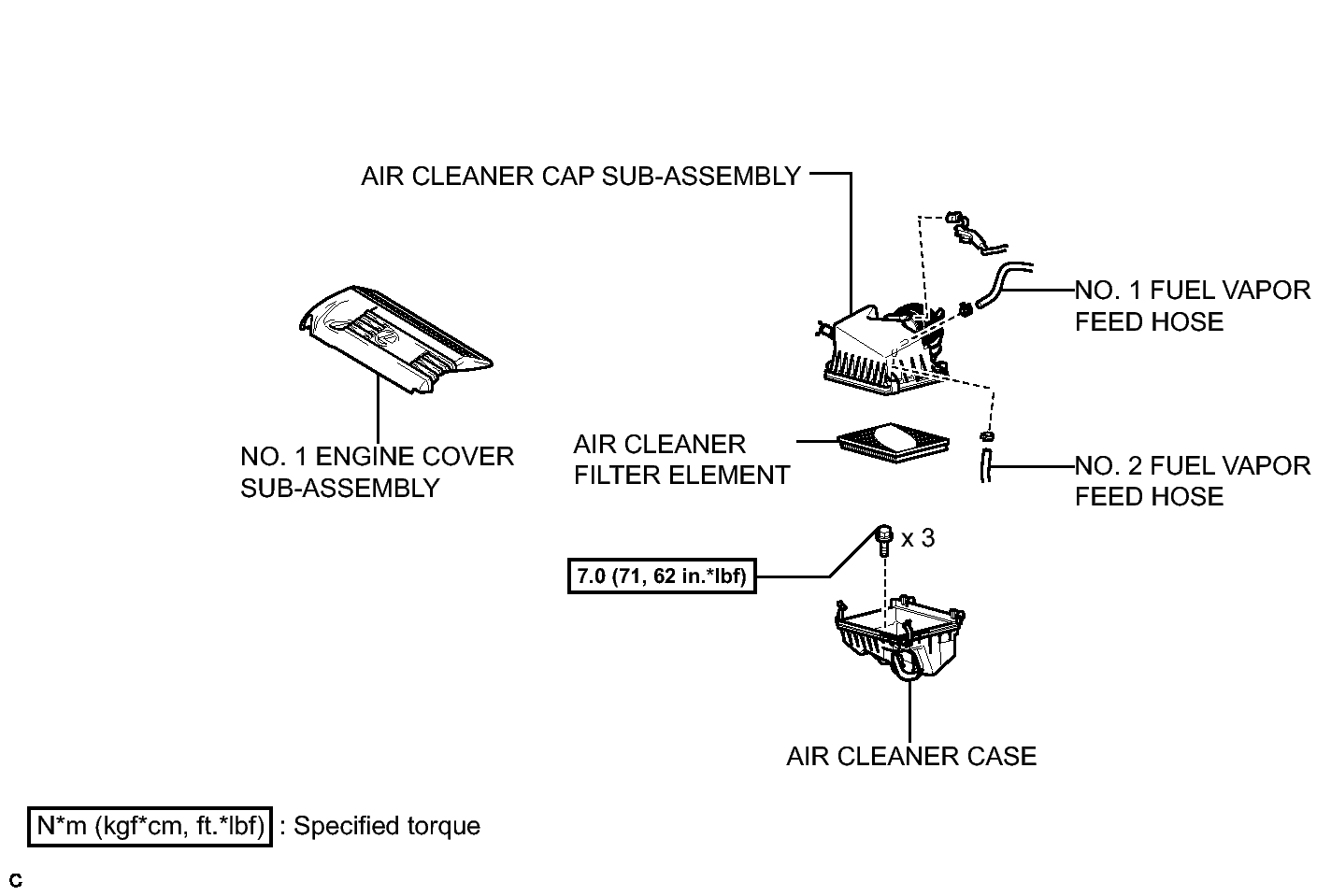

Fig 1: Identifying Brake Booster Replacement Components With Torque Specifications (4 Of 6)
GTY284698Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

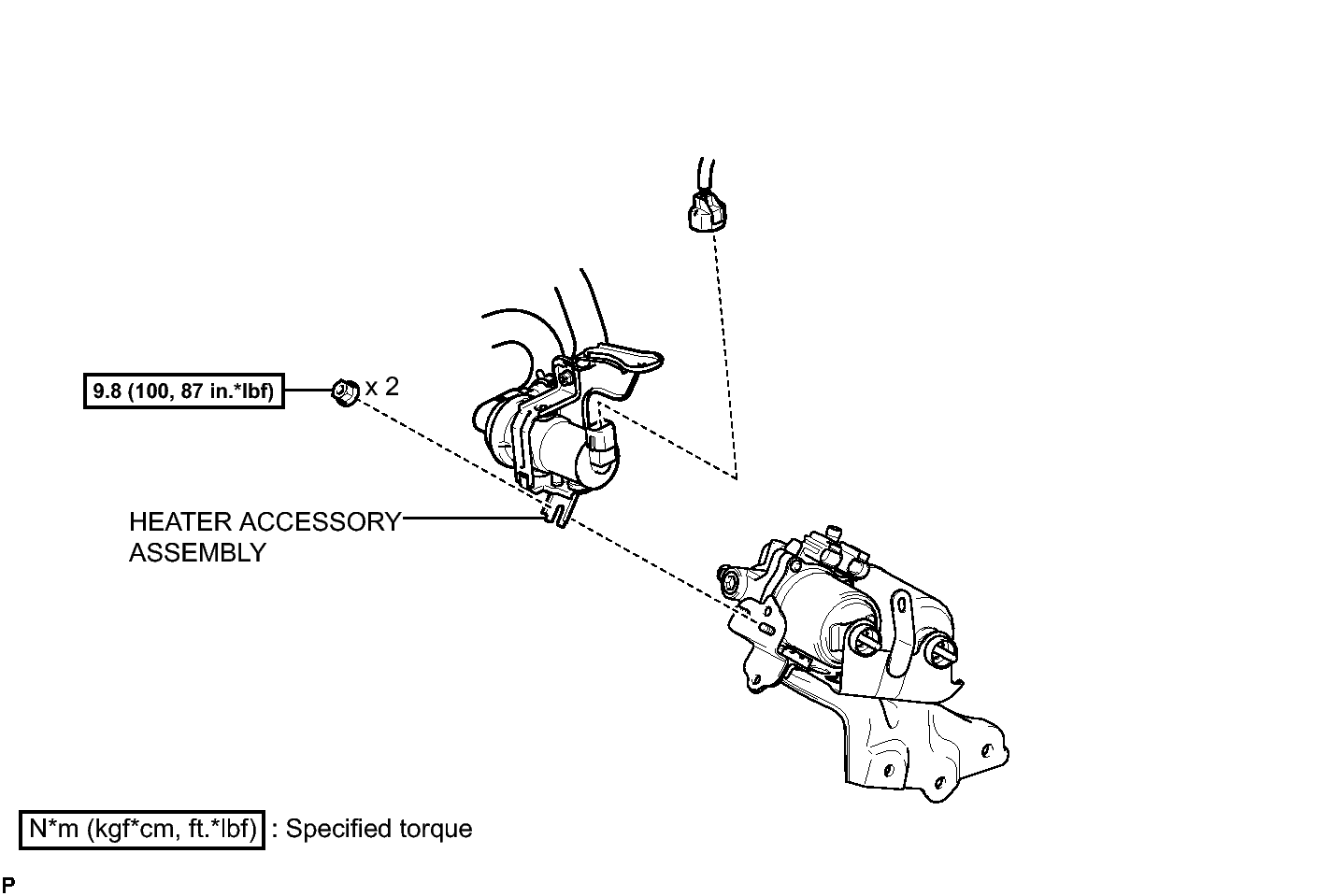

Fig 1: Identifying Brake Booster Replacement Components With Torque Specifications (5 Of 6)
GTY281080Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

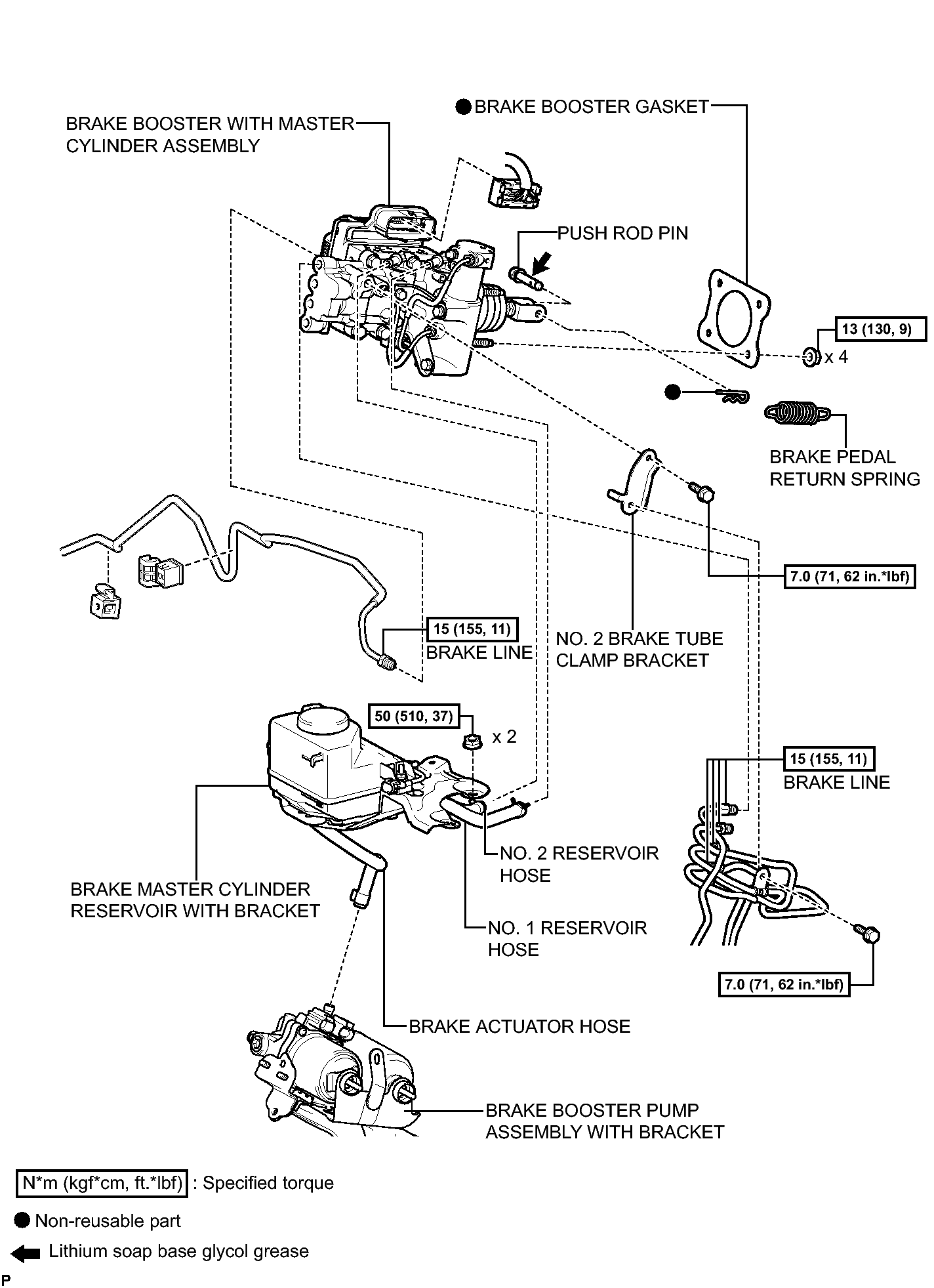

Fig 1: Identifying Brake Booster Replacement Components With Torque Specifications (6 Of 6)
GTY264291Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
