Brake Booster Pump: Components: Illustration

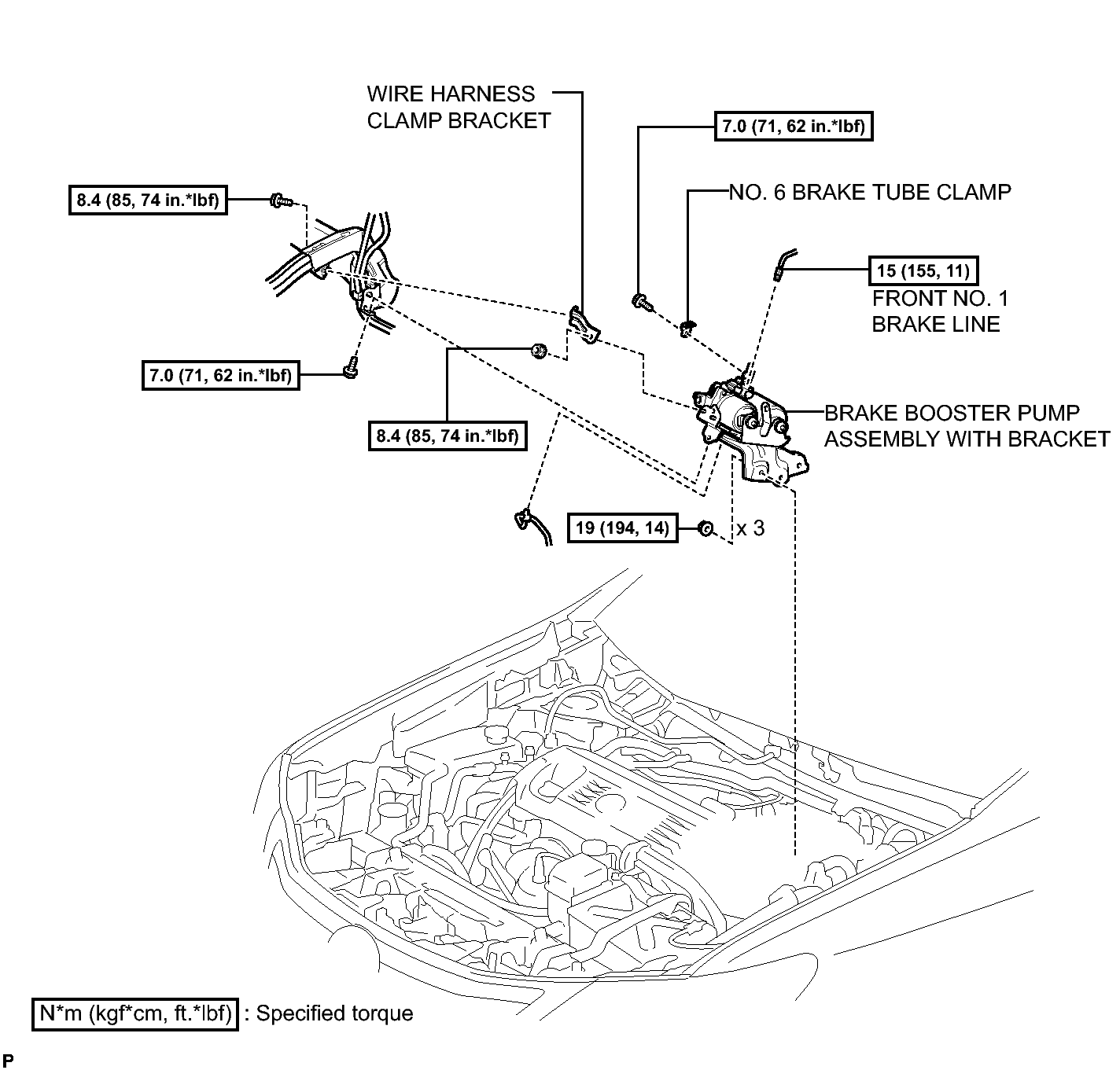

Fig 1: Identifying Brake Booster Pump Replacement Components With Torque Specifications (1 Of 2)
GTY256648Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

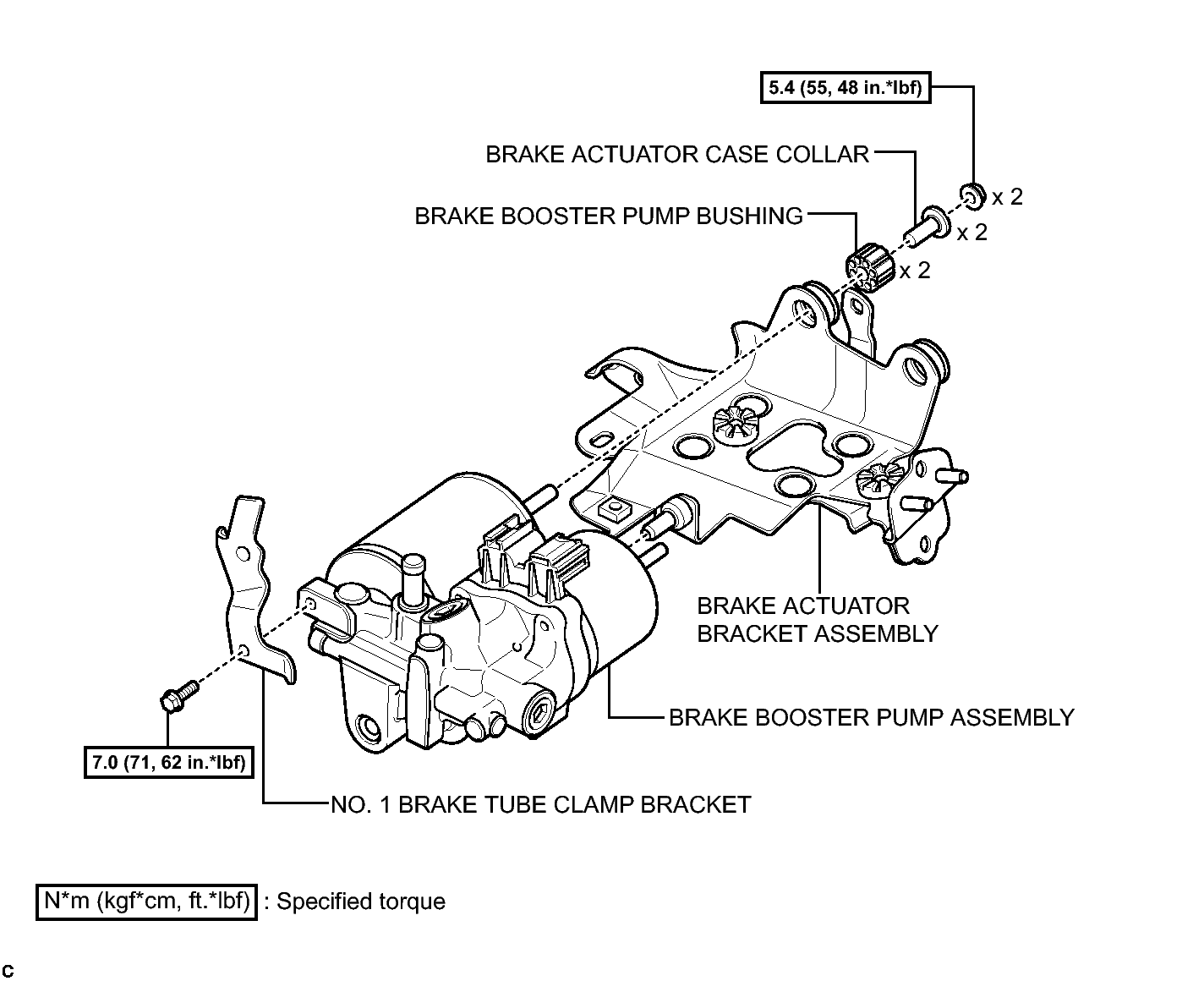

Fig 1: Identifying Brake Booster Pump Replacement Components With Torque Specifications (2 Of 2)
GTY280703Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
