Luggage Compartment Door Opener does not Operate: Wiring Diagram

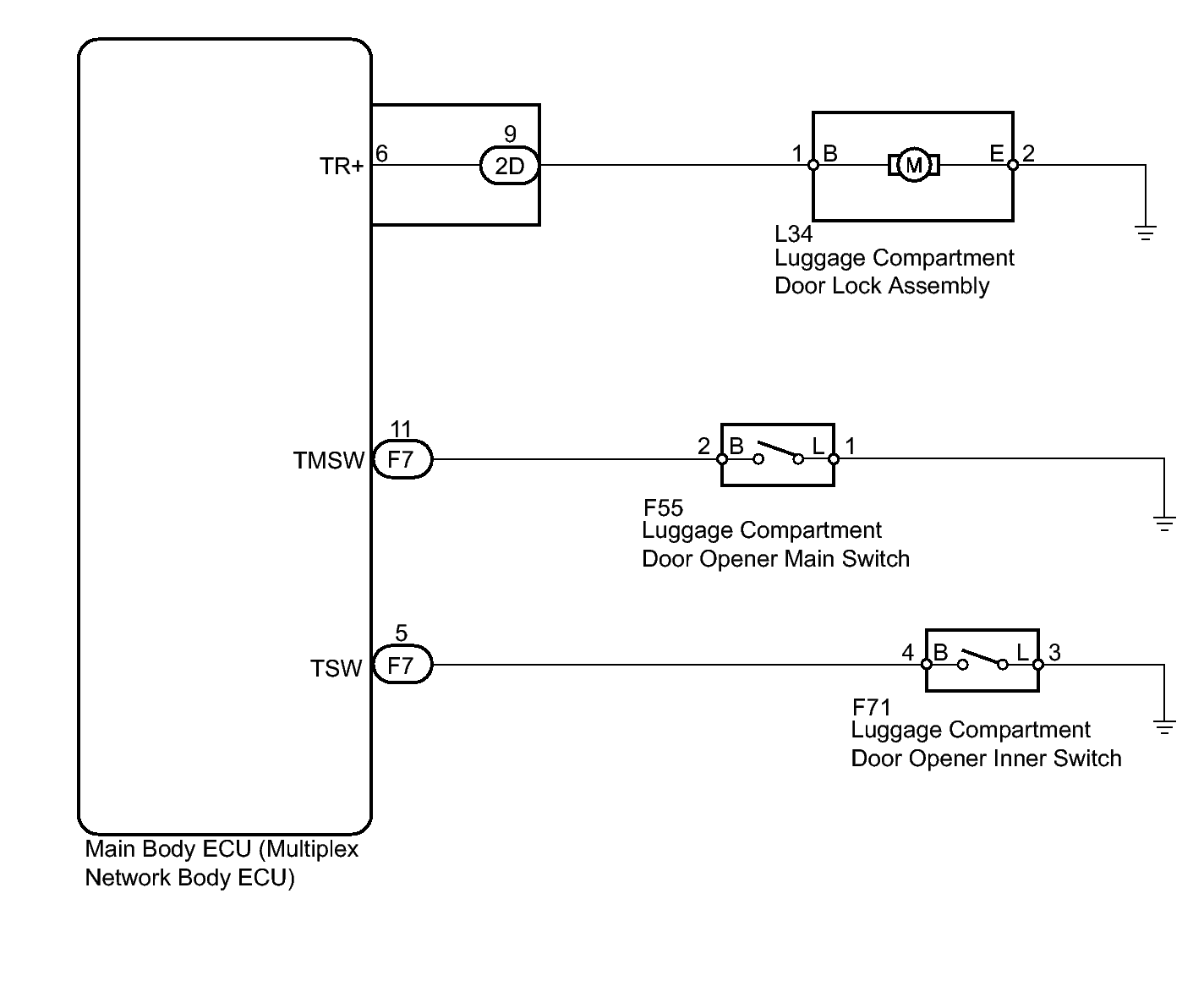

Fig 1: Luggage Compartment Door Lock Motor - Wiring Diagram

GTY260294

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
