Parts Location: Illustration

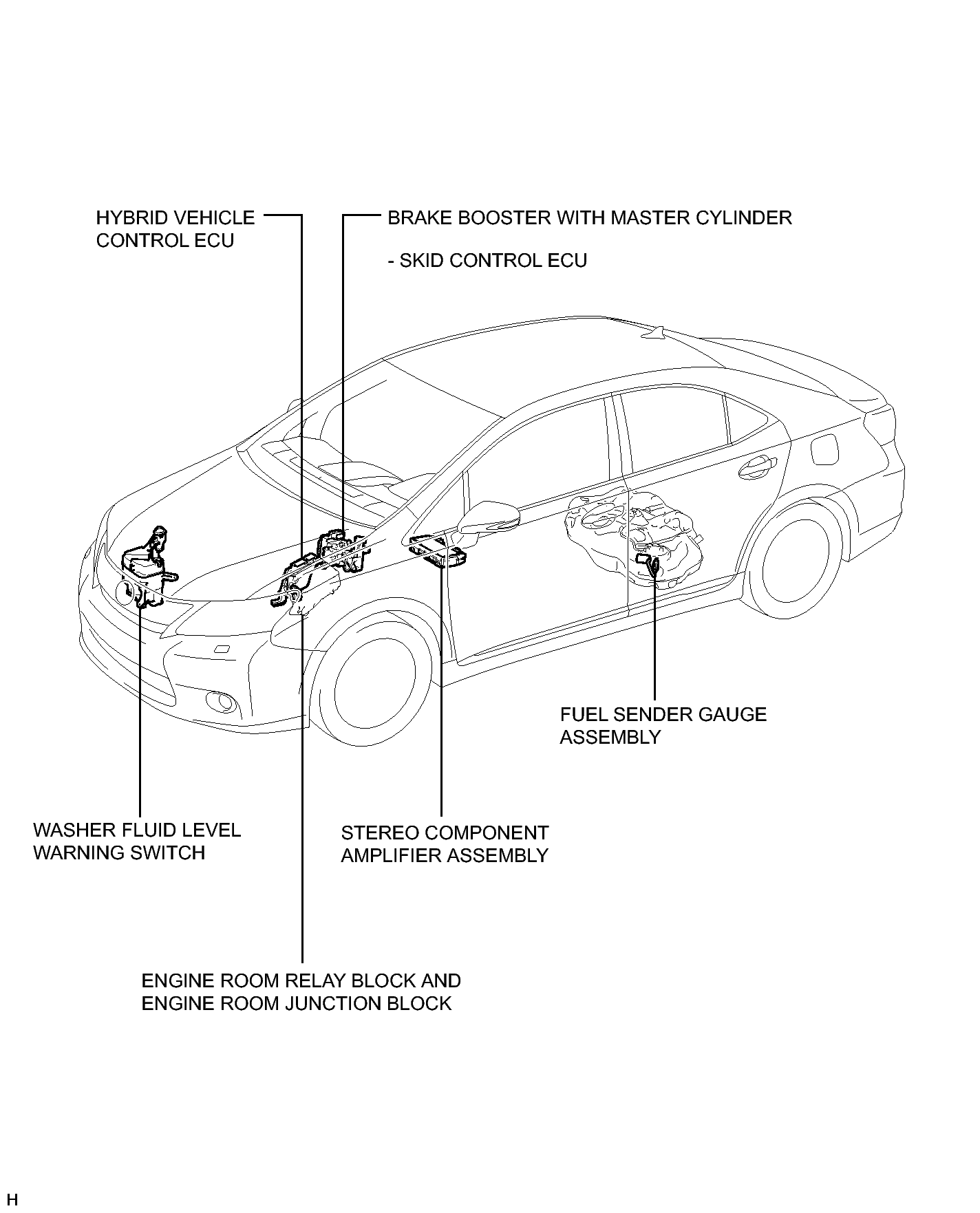

Fig 1: Identifying Meter / Gauge System Parts Location (1 Of 3)
GTY282668Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

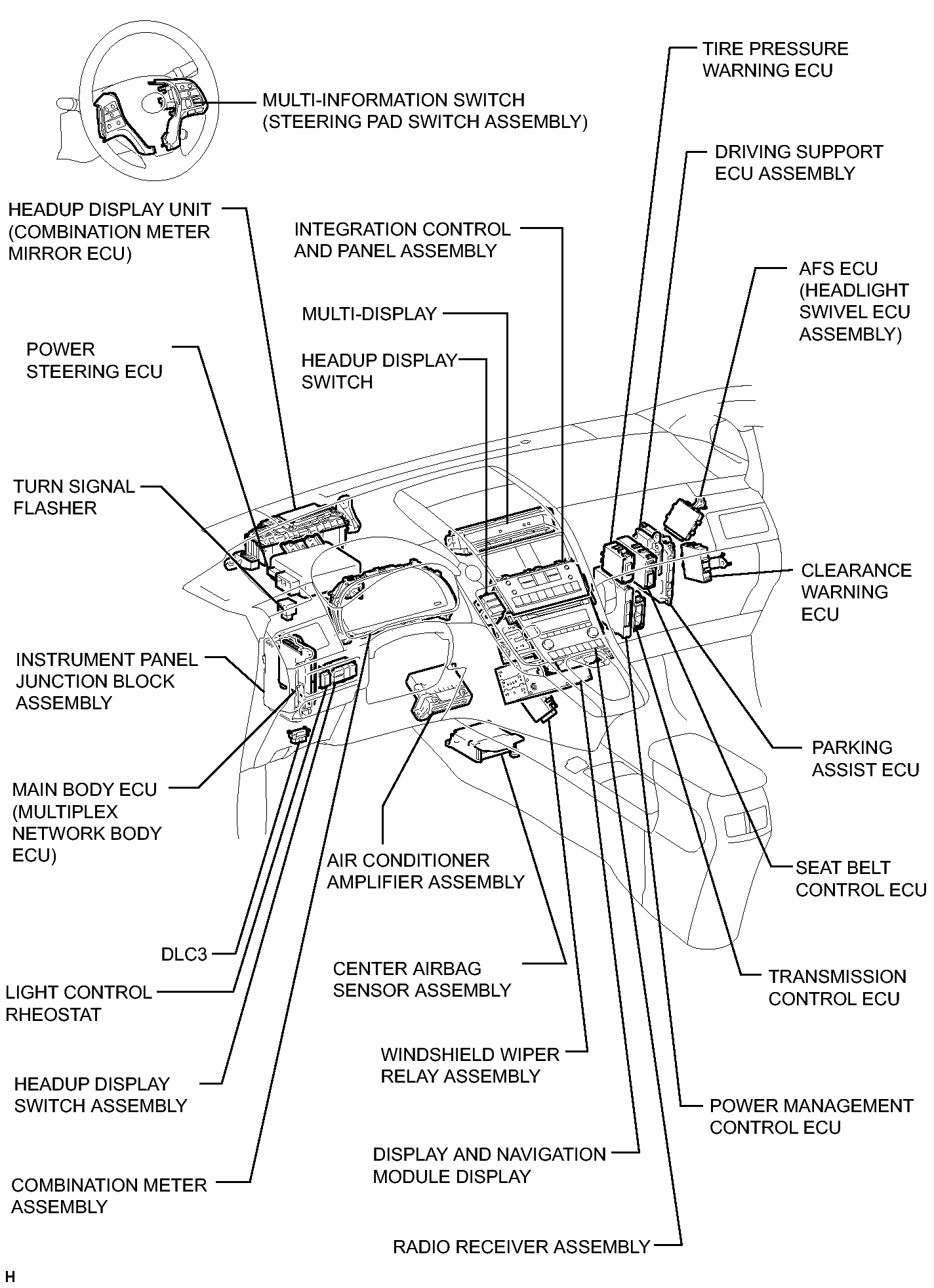

Fig 1: Identifying Meter / Gauge System Parts Location (2 Of 3)
GTY274595Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

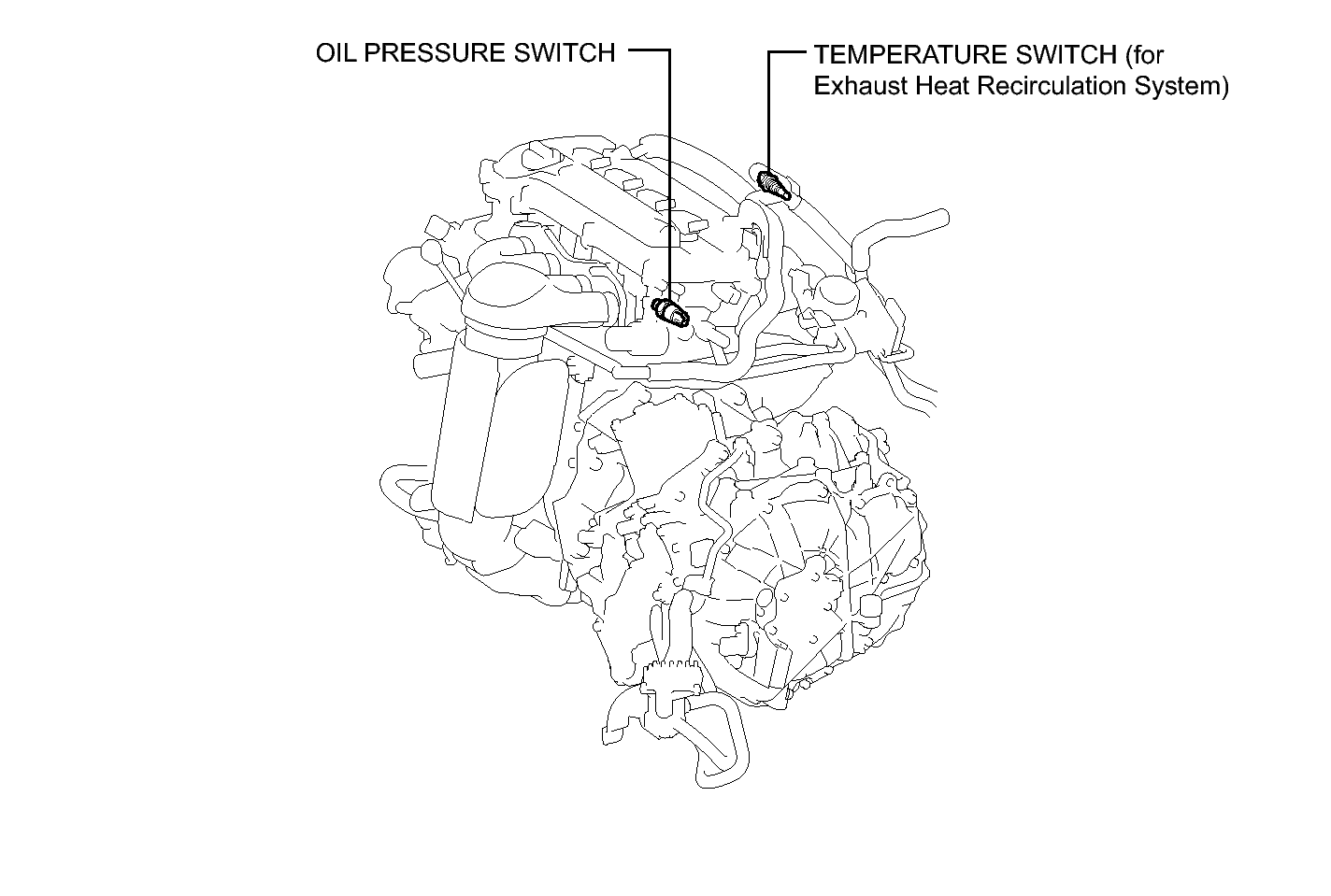

Fig 1: Identifying Meter / Gauge System Parts Location (3 Of 3)
GTY279532Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
