Taillight Relay Circuit: Wiring Diagram

  1. for LED Headlight:

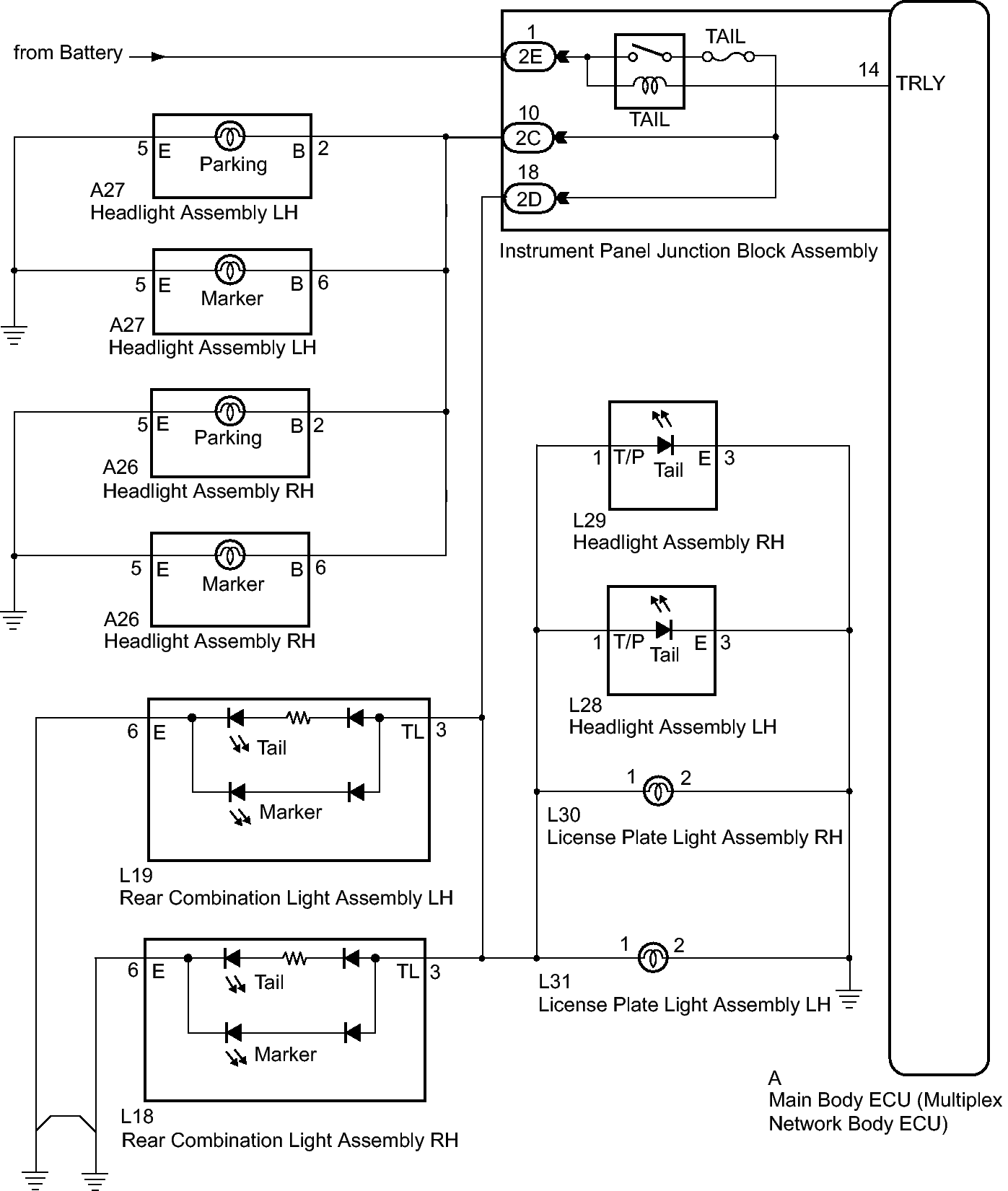

    Fig 1: Identifying TAIL Relay Wiring Diagram (For LED Headlight)
    GTY268162Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. except LED Headlight:
    Fig 2: Identifying TAIL Relay Wiring Diagram (except LED Headlight)
    GTY268164Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
